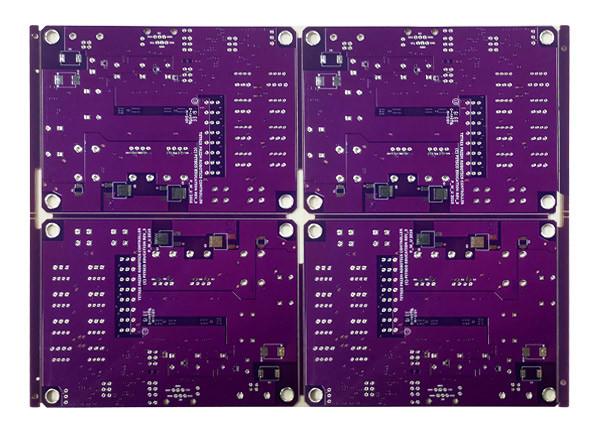

6 Layer FR4-4 1.6mm 2oz PCB Circuit Board 1.6mm Purple Solder Mask EING with plug hole V-cut
6 Layer FR4-4 1.6mm 2oz PCB Circuit Board 1.6mm Purple Solder Mask EING with plug hole V-cut
6 Layer FR4-4 1.6mm 2oz PCB Circuit Board 1.6mm Purple Solder Mask EING with plug hole V-cut
6 Layer FR4-4 1.6mm 2oz PCB Circuit Board 1.6mm Purple Solder Mask EING with plug hole V-cut
Specifications
Brand Name :
Abis
Model Number :
PCB-M49
Certification :
ISO14001, ISO9001, UL, cUL, TS16949
Place of Origin :
Made in China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, paypal ect.
Supply Ability :
60,000sqm per month
Delivery Time :
7-15 work days
Packaging Details :
Vacuum package
Base material :
FR4
Board Thickness :
1.60mm
Surface Treatment :
EING/Immrsion Gold/OSP/HASL/HASL LEAD FREE
Solder mask :
Purple/or on your request
Silkscreen color :
White/or on your request
Min. line width :
3mil
Min. hole size :
0.15mm
Application :
Electronics Device,Medium and Small Projects,automotive electronics
Number of layers :
1-20 Layers
Type :
Electronic Board,Customizable,Electonic Circuit Board PCB Assembly
Service :
24 hours at your service,One-stop,PCB OEM manufacturer
Testing :
100%E-Testing,PCB Flying test,X-RAY,PCBA Funtion test/Electronic test
Product Name :
Printed Circuit Board,FR4 PCB Circuit Board,MultiLayer PCB,Electronic PCB,Multilayer FR4 Board 6 Layer
Description

6 Layer FR4-4 1.6mm 2oz PCB Circuit Board 1.6mm Purple Solder Mask EING with plug hole V-cut

Product Detail Specification

Item Spec
Layers 1~20
Board Thickness 0.1mm-8.0mm
Material FR-4, CEM-1/CEM-3, PI, High Tg, Rogers, PTEF, Alu/Cu Base, etc
Max Panel Size 600mm×1200mm
Min Hole Size 0.1mm
Min Line Width/Space 3mil(0.075mm)
Board Outline Tolerance 士0.10mm
Insulation Layer Thickness 0.075mm--5.00mm
Out Layer Copper Thickness 18um--350um
Drilling Hole (Mechanical) 17um--175um
Finish Hole (Mechanical) 0.10mm--6.30mm
Diameter Tolerance (Mechanical) 0.05mm
Registration (Mechanical) 0.075mm
Aspect Ratio 16:01
Solder Mask Type LPI
SMT Mini. Solder Mask Width 0.075mm
Mini. Solder Mask Clearance 0.05mm
Plug Hole Diameter 0.25mm--0.60mm
Impedance Control Tolerance 士10%
Surface finish ENIG, OSP, HASL, Chem. Tin/Sn, Flash Gold
Soldermask Green/Yellow/Black/White/Red/Blue
Silkscreen Red/Yellow/Black/White
Certificate UL, ISO 9001, ISO14001, IATF16949
Special Request Blind hole, Gold finger, BGA, Carbon ink, peekable mask, VIP process, Edge plating, Half holes
Material Suppilers Shengyi, ITEQ, Taiyo, etc.
Common Package Vacuum+Carton


Why choose us?

·With ABIS, customers significantly and effectively reduce their global procurement costs. Behind each service provided by ABIS, is hidden a cost saving for customers.

. We have two shop together, one is for prototype, quick turn, small volume making. The other is for mass production also for HDI board, with highly skilled professional employees, for high quality products with competitive price and on-time delivery.

. We provide very professional sales, technical and logistic supports, on a world-wide basis.hours complaint feedback.

What Abis Circuits can do for you:

  • PCB manufacturing (prototype, small to medium, mass production)
  • Components Sourcing
  • PCB Assembly/SMT


To get a full quotation of the PCB/PCBA, pls provide the information as below:

Gerber File, with detail specification of the PCB

BOM List (Better with excel fomart)

  • Photoes of the PCBA (If you have done this PCBA before)

Company Informaiton:

Abis Circuits Co., Ltd, a professional PCB manufacturer which was established on Oct, 2006. Focus on double side, Multilayer and HDI pcb mass production.
We have two factories together. The factory in Shenzhen is specialized in small and middle volume orders. Another in Jiangxi province is for big volume and HDI.

  • Lead Time

Category Quickest Lead Time Normal Lead Time
Double sideds 24hrs 120hrs
4 Layers 48hrs 172hrs
6 Layers 72hrs 192hrs
8 Layers 96hrs 212hrs
10 Layers 120hrs 268hrs
12 Layers 120hrs 280hrs
14 Layers 144hrs 292hrs
16-20 Layers Depends on the specific requirements
Above 20 Layers Depends on the specific requirements

Certificate
6 Layer FR4-4 1.6mm 2oz PCB Circuit Board 1.6mm Purple Solder Mask EING with plug hole V-cut
Our Customer
6 Layer FR4-4 1.6mm 2oz PCB Circuit Board 1.6mm Purple Solder Mask EING with plug hole V-cut

FAQ

Q1:Fabricator or only sales?
A: We're fabricator for circuit card over 15 years.

Q2:How to secure my PCB file?
A: We do not share your files to third organization.

Q3:Quality assurance?
A: All circuit card test and ok then ship it.

Q4: How about shipping time?
A: Within 8layers samples 7 working days and big volum 2-4weeks.

Q5: What about your main abroad region?
A: Europe,America,Southeast Asia,Middle East and others.

Q6: Format file required?
A: Circuit card Gerber(DXF,RS274-X,ODB++); PCB assembly require Gerber +BOM.

Q7: What do you require in order to produce an assembly quotation?
-Bill of materials (BOM) detailing:
a), manufacturers parts numbers,
b), components suppliers' parts number (e.g. Digi-key, Mouser, RS )
c), PCBA sample photos if possible.
