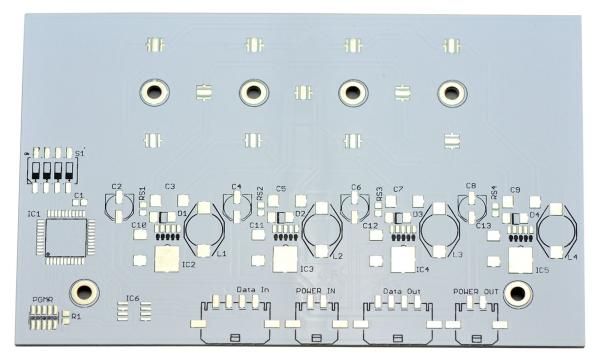

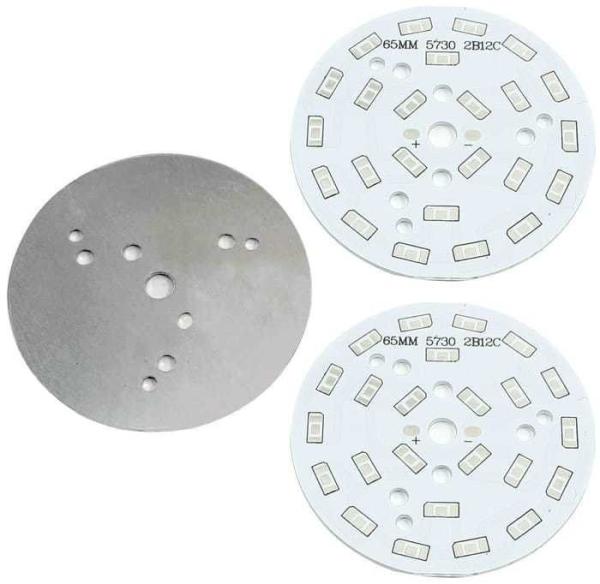

Metal Core PCB LED Light Printed Circuit Board 2oz/1oz Copper/Aluminum Prototype PCB
Metal Core PCB LED Light Printed Circuit Board 2oz/1oz Copper/Aluminum Prototype PCB
Metal Core PCB LED Light Printed Circuit Board 2oz/1oz Copper/Aluminum Prototype PCB
Metal Core PCB LED Light Printed Circuit Board 2oz/1oz Copper/Aluminum Prototype PCB
Specifications
Brand Name :
Abis
Model Number :
PCB-M70
Certification :
ISO14001, ISO9001, UL, cUL, TS16949
Place of Origin :
Made in China
MOQ :
1 pcs
Price :
0.01$-100$
Payment Terms :
T/T, Western Union, Paypal etc.
Supply Ability :
72,000sqm per month
Delivery Time :
1-15 working days
Packaging Details :
Vacuum package
Number of layers :
1-2 Layers
Base material :
Aluminum/Copper base
Min. line spacing :
3mil, 0.075mm
Min. line width :
3mil,0.075mm
Surface finishing :
HASL,OSP,ENIG,HASL Lead Free
Application :
Consumer Electronics,Electronics Device,Medium and Small Projects,Electrice Vehicle
Product name :
Pcb Board Assembly,Printed Circuit Board,PCB Circuit Board,Metal core aluminum PCB
Item :
Custom Circuit Board
Usage :
OEM Electronics
Name :
PCB Board Production
Description

Metal Core PCB LED Light Printed Circuit Board 2oz/1oz Copper/Aluminum Prototype PCB

Company Profile

Abis Circuits Co., Ltd, a professional PCB manufacturer which was established on Oct, 2006. Focus on double side, Multilayer and HDI pcb mass production.
We have two factories together. The factory in Shenzhen is specialized in small and middle volume orders. Another in Jiangxi province is for big volume and HDI.
Metal Core PCB LED Light Printed Circuit Board 2oz/1oz Copper/Aluminum Prototype PCB


Product Details
1. Single, Double side & Multi-layer PCB.
2. Buried/Blind Vias, Via in Pad, Counter Sink Hole, Screw Hole(Counterbore), Press-fit, Half Hole.
3. HASL lead-free, Immersion Gold/ Silver/Tin, OSP, Gold plating/finger, Peelable mask,
4. Printed Circuit Boards adhere to IPC Class 2 & 3 international PCB standard.
5. Quantities range from prototype to medium&big batch production.
6.100% E-Test.


Capacity

Number of layers 1 – 4 layers
Technology highlights Effective heat sink solutions for thermal applications. This construction type enables superior heat dissipation through use of either aluminium or copper substrate bonded to the insulated circuitry through thermal pre-preg or resin systems.
Materials Aluminium & copper plates. FR-4, PTFE, thermal dielectrics.
Dielectric thickness 0.05mm – 0.20mm
Thermal conductivity 1-12 W/m/K
Profile method Punching, Liquid cooled routing
Copper weights (finished) 35μm – 140μm
Minimum track and gaps 0.10mm / 0.10mm
Metal core thickness 0.40mm – 3.20mm
Maxmimum dimensions 550mm x 700mm
Surface finishes available HASL, LF HASL, OSP, ENIG, Imersion tin, Immsersion silver
Minimum mechanical drill 0.30m

Lead Time

Category Quickest Lead time Normal Lead Time Mass Production
2 Layers 24hrs 3-4 working days 8-15 working days
4 Layers 48hrs 3-5 working days 10-15 working days
6 Layers 72hrs 3-6 working days 10-15 working days
8 Layers 96hrs 3-7 working days 14-18 working days
10 Layers 120hrs 3-8 working days 14-18 working days
12 Layers 120hrs 3-9 working days 20-26 working days
14 Layers 144hrs 3-10 working days 20-26 working days
16-20 Layers Depends on the specific requirements
Above 20 Layers Depends on the specific requirements

Advantages:
• Strict product liability, taking IPC-A-160 standard
• Engineering pretreatment before production
• Production process control (5Ms)
• 100% E-test, 100% visual inspection, including IQC, IPQC, FQC, OQC
• 100% AOI inspection, including X-ray, 3D microscope and ICT
• High-voltage test, impedance control test
• Micro section, soldering capacity, thermal stress test, shocking test
• In-house PCB production
• No minimum order quantity and free sample
• Focus on low to medium volume production
• Quick and on-time delivery

Quality Control

Metal Core PCB LED Light Printed Circuit Board 2oz/1oz Copper/Aluminum Prototype PCB

Certification Standards
Metal Core PCB LED Light Printed Circuit Board 2oz/1oz Copper/Aluminum Prototype PCB

Company Show
Metal Core PCB LED Light Printed Circuit Board 2oz/1oz Copper/Aluminum Prototype PCB

​

FAQ

Q1:Are you a factory or trade company?
A: Abis is a PCB/FPC/PCBA manufacturer/factory. We specialize in PCB/PCBA Board for 12 years.

Q2:Is my PCB file safe if I send it to you for manufacturing?
A: We respect customer's design authority and will never manufacture PCB for someone else without your permission. NDA is acceptable.

Q3:What is your testing policy and how you control the quality?
A: For sample, usually tested by flying probe; for PCB Volume over 3 square meters, usually tested by fixture, this will be more faster. Due to there's many steps to PCB production, we usually do inspection after every step.

Q4: What's your shipping way ?
A: 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT,EMS.
2. If you have your own forwarder, we can cooperate with them.

Q5: What is your certificate?
A: ISO9001:2015, ISO14001: 2015, UL, SGS,RoHS report.

Q6: Why choose us?
A: With ABIS, customers significantly and effectively reduce their global procurement costs. Behind each service provided by ABIS, is hidden a cost saving for customers.

. We have two shop together, one is for prototype, quick turn, small volume making. The other is for mass production also for HDI board, with highly skilled professional employees, for high quality products with competitive price and on-time delivery.

. We provide very professional sales, technical and logistic supports, on a world-wide basis.hours complaint feedback.

Please keep us informed for any interest!
ABIS cares every your order even 1 piece!

Product tags

metal core pcb led

,

led metal pcb

,

led pcb metal core
