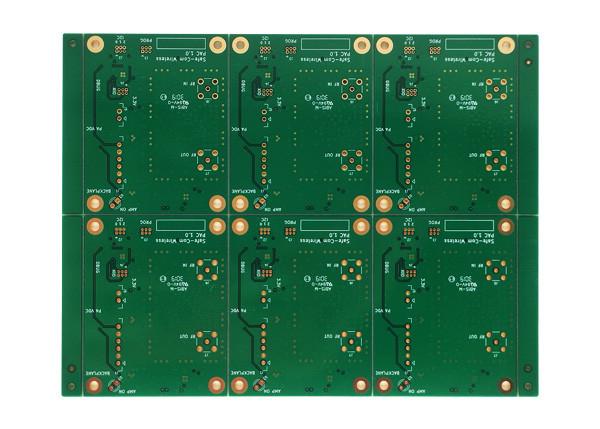

1.55mm Thick FR4 Tg170 Air Conditioner PCB Board Immersion Gold ISO9001
1.55mm Thick FR4 Tg170 Air Conditioner PCB Board Immersion Gold ISO9001
1.55mm Thick FR4 Tg170 Air Conditioner PCB Board Immersion Gold ISO9001
1.55mm Thick FR4 Tg170 Air Conditioner PCB Board Immersion Gold ISO9001
Specifications
Brand Name :
ABIS
Model Number :
DS-15
Certification :
UL, ISO9001,ISO14001,SGS,RoHS, TS16949
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
60,000 s.q.m/month
Delivery Time :
0.5-4 week
Packaging Details :
Vacuum packing
Material :
FR4 tg170
Layer :
Double
Solder resist :
Green
Copper weight :
4OZ
Surface coating :
Immersion Gold
Profile :
CNC, V-cut
Board thickness :
1.55mm
Application :
Electronics
Description
Immersion Gold FR4 Grade Air Conditioner PCB Board


1. Immersion gold PCB.

2. Air conditioner application.

3. CTI 600 FR4 material.

​

1 Layer Double
2 Material FR4 CTI600
3 PCB thickness 1.55mm
4 Copper wall 25um
5 Min hole 4mil
6 Min line track 0.09mm
7 Min line gap 0.16mm
8 Surface finish Immersion Gold
9 Copper weight 4OZ
10 Soldermask green
11 Outline control ±0.13mm
12 Impedance control ±10%
13 NPTH tolerance ±0.05mm
14 Certificates UL,ISO9001/14001,SGS,RoHS,ISO/TS16949
15 Profiling Route,V Groove
16 App Air conditioner

FAQ

Q1:Are you a factory?
A: Yes

Q2:Is my PCB file safe if I send it for production?
A: Yes. NDA will be signed.

Q3:What about your quality control?
A: All E-test, usually we do inspection every step.

Q4: What's your shipping way ?
A: We have experience with DHL, UPS, FEDEX, TNT.

Q5: How about your certificate?
A: ISO9001/14001, UL, SGS,RoHS compliant,ISO16949.

Q6:Files requirements?
A: PCB projects need Gerber File(DXF,RS274-X,ODB++); PCBA need PCB File &BOM(Bill of material).
