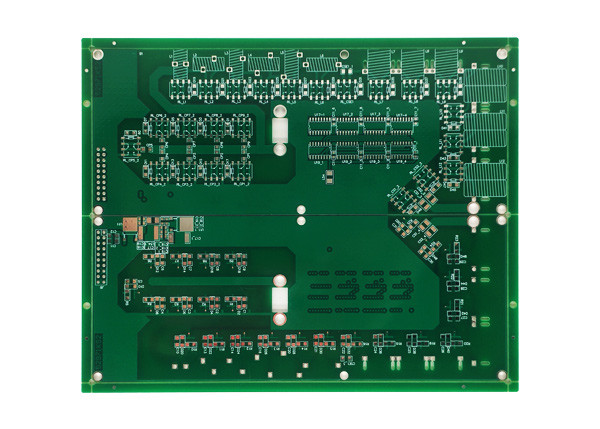

20um Cu HASL Lead Free Double Layer Pcb HASL LF For Audio Amplifier
20um Cu HASL Lead Free Double Layer Pcb HASL LF For Audio Amplifier
20um Cu HASL Lead Free Double Layer Pcb HASL LF For Audio Amplifier
20um Cu HASL Lead Free Double Layer Pcb HASL LF For Audio Amplifier
Specifications
Brand Name :
ABIS
Model Number :
DS-12
Certification :
UL, ISO9001,ISO14001,SGS,RoHS,IATF16949
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
60,000 s.q.m/month
Delivery Time :
0.5-4 week
Packaging Details :
Vacuum packing
Side :
Double
Substrate :
FR4
Usage :
Audio Amplifier
Surface coating :
HASL LF
Board thickness :
1.6mm
Cu weight :
1OZ
Cu wall :
20um
Solder mask :
LPI green
Drill hole :
0.1-6.35mm
Description
HASL Lead Free Double Side PCB Used For Audio Amplifier


1. Double side PCB.

2. 20um PTH wall.

3. HASL lf finish.

4.Audio application.

​

1 Layers 2
2 Material FR4
3 Board thick 1.6mm
4 Cu weight 1OZ
5 Min hole 0.13mm
6 Usage Audio
7 Min line 0.18mm
8 Surface coating HASL lf
9 Copper wall 20um
10 Shape tolerance ±0.1mm
11 Solder mask 25m
12 PTH ±0.075mm
13 Profiling Rout

FAQ

Q1: What files do you use in PCB fabrication?
A1: Gerber, PCB. Auto CAD

Q2: How do you make sure the quality?
A2: Our Product is all 100% tested including Flying Probe Test (for sample), E-test (mass) or AOI.

Q3: Can we visit your company?
A3: Of course! Welcome to visit our company, Abis located in Shenzhen, Guangdong province, China.

Q4: What is your minimum order quantity (MOQ)?

A4: Our MOQ is 1 PCS, sample and mass production all can support.

Q5: Will you keep our information and files secret?
A5: Sure! It is our basic principle to keep business secrets to protect our customers' rights and behalf.

Q6. How to work with you?
A6: -Email and send us the PCB layout file, BOM list
- We will provide reply confirmation within 12 hours and reply to the offer within 3-5 days.
- Waiting for your company to confirm the price, order and payment method.
- We will start the production.

Our process:
