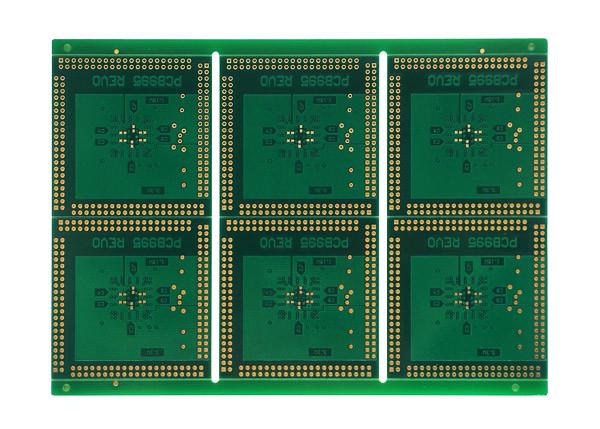

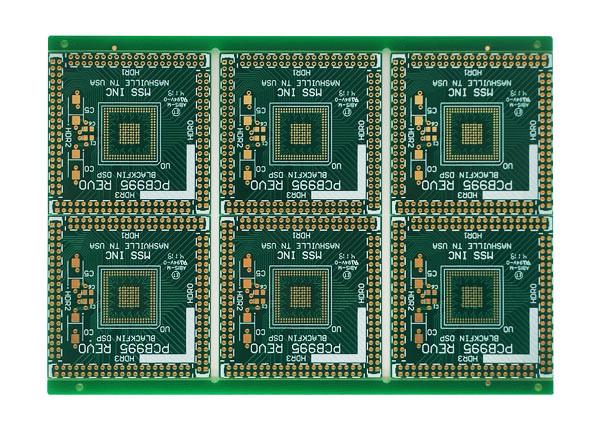

25um PTH Substrate HDI Multilayer FR4 Board 2OZ Cu 8 Layer
25um PTH Substrate HDI Multilayer FR4 Board 2OZ Cu 8 Layer
25um PTH Substrate HDI Multilayer FR4 Board 2OZ Cu 8 Layer
25um PTH Substrate HDI Multilayer FR4 Board 2OZ Cu 8 Layer
Specifications
Brand Name :
ABIS
Model Number :
HDI-10
Certification :
UL, ISO9001,ISO14001,SGS,RoHS, IATF16949
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
60,000 s.q.m/month
Delivery Time :
0.5-4 week
Packaging Details :
Vacuum packing
Substrate :
FR4 grade
VIP process :
Yes
PTH wall :
25um
Usage :
Consumer electronics
Blind vias :
Yes
Buried vias :
Yes
Cu thick :
2OZ
Surface coating :
Immersion gold
Description
Custom OEM Design Multilayer FR4 Substrate HDI Board


1. High density interconnect board.

2. Consumer electronics usage.

3. FR4 94-V0 grade.

4. Up to 3+X+3.

5. Immersion gold coating.


​

1 Layer 8
2 Substrate FR4 94-V0
3 PCB thick 1.57mm
4 App Consumer electronics
5 Laser hole 4mil
6 Min track 3mil
7 Min gap 3mil
8 Surface coating Immersion gold
9 Cu weight 2OZ
10 Solder resist 20um
11 Blind hole Yes
12 Vip process Yes
13 Certs UL,ISO,RoHS,IATF,SGS

FAQ

Q1:May i know 3+X+3?
A: It means HDI board laminate time is 3rd.

Q2:What about production time for HDI board?
A: Sample and mass production all 4weeks.

Q3:If i send you Gerber, When you release quotation?
A: Within 2working days.

Q4: How to ensure the quality?
A: AOI, E-test,FQC,FQA ok then delivery.

Q5: Are you a factory or trader?
A: We're factory with 2 buildings.

Q6: Is it possible to visit your factory?
A: Of course you can.

Plant online visit:

25um PTH Substrate HDI Multilayer FR4 Board 2OZ Cu 8 Layer


​
