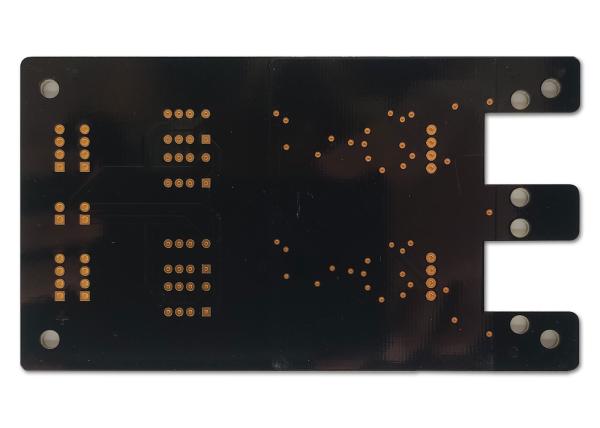

HASL Prototype PCB Board Multilayer PCBA 175um OSP PTEF LPI
HASL Prototype PCB Board Multilayer PCBA 175um OSP PTEF LPI
HASL Prototype PCB Board Multilayer PCBA 175um OSP PTEF LPI
HASL Prototype PCB Board Multilayer PCBA 175um OSP PTEF LPI
Specifications
Brand Name :
Abis
Model Number :
PCB-M77
Certification :
ISO14001, ISO9001, UL, cUL, TS16949
Place of Origin :
Made in China
MOQ :
1 pcs
Price :
Customized
Payment Terms :
T/T, Western Union, paypal ect.
Supply Ability :
72000sqm per month
Delivery Time :
1-15 working days
Packaging Details :
Vacuum package
Board thickness :
0.2~8.0mm
Min. line spacing :
0.003"
Min. line width :
0.075mm/0.075mm(3mil/3mil)
Base material :
FR-4/aluminum/ceramic/cem-3/FR-1
Silkscreen color :
White or on your request.
Surface finishing :
HASL,ENIG,Immersion Gold,HASL Lead Free,OSP
Product name :
Printed Circuit Board,94v0 pcb board,wireless charger PCB prototype circuit board and PCBA with coil,small prototypes shenzhen pcb circuit board and pcba,Assembly for Circuit Board
Application :
Consumer Electronics,Electronics Device,Equipment,Player Products
Name :
PCB Board Production,OEM Factory Made FR-4 PCB / Prototype PCB Circuit Board,OEM Fast Prototype Electronic Custom Made PCB Board Manufacturer
Type :
Electronic Board,Customizable,Produce according to customer's PCB and bom file,pcb/printed circuit board/oem pcb
Item :
Pcb,Keyboard Pcb Assembly,ODM wireless charging PCBA,ODM OEM LED PCBA,Cheap turnkey prototype pcb circuit board assembly provider
Service :
One-stop Service,Customize,One stop service,PCB/Components Sourcing/Soldering/Programming/Testing..
Description

Custom Prototype PCB Board Multilayer PCB&PCBA China PCB Supplier

PCB Capacity

Item Spec
Layers 1~20
Board Thickness 0.1mm-8.0mm
Material FR-4, CEM-1/CEM-3, PI, High Tg, Rogers, PTEF, Alu/Cu Base, etc
Max Panel Size 600mm×1200mm
Min Hole Size 0.1mm
Min Line Width/Space 3mil(0.075mm)
Board Outline Tolerance 士0.10mm
Insulation Layer Thickness 0.075mm--5.00mm
Out Layer Copper Thickness 18um--350um
Drilling Hole (Mechanical) 17um--175um
Finish Hole (Mechanical) 0.10mm--6.30mm
Diameter Tolerance (Mechanical) 0.05mm
Registration (Mechanical) 0.075mm
Aspect Ratio 16:01
Solder Mask Type LPI
SMT Mini. Solder Mask Width 0.075mm
Mini. Solder Mask Clearance 0.05mm
Plug Hole Diameter 0.25mm--0.60mm
Impedance Control Tolerance 士10%
Surface finish ENIG, OSP, HASL, Chem. Tin/Sn, Flash Gold
Soldermask Green/Yellow/Black/White/Red/Blue
Silkscreen Red/Yellow/Black/White
Certificate UL, ISO 9001, ISO14001, IATF16949
Special Request Blind hole, Gold finger, BGA, Carbon ink, peekable mask, VIP process, Edge plating, Half holes
Material Suppilers Shengyi, ITEQ, Taiyo, etc.
Common Package Vacuum+Carton

Q/T Lead Time

Category Quickest Lead Time Normal Lead Time
Double sideds 24hrs 120hrs
4 Layers 48hrs 172hrs
6 Layers 72hrs 192hrs
8 Layers 96hrs 212hrs
10 Layers 120hrs 268hrs
12 Layers 120hrs 280hrs
14 Layers 144hrs 292hrs
16-20 Layers Depends on the specific requirements
Above 20 Layers Depends on the specific requirements

Quality Control

HASL Prototype PCB Board Multilayer PCBA 175um OSP PTEF LPI

Pre-Sale and After-Sale Service
1 Hour quotation
2 hours complaint feedback
7*24 hour technical support
7*24 order service
7*24 hour delivery
7*24 production run


Company Profile

Abis Circuits Co., Ltd, a professional PCB manufacturer which was established on Oct, 2006. Focus on double side, Multilayer and HDI pcb mass production.
We have two factories together. The factory in Shenzhen is specialized in small and middle volume orders. Another in Jiangxi province is for big volume and HDI.
HASL Prototype PCB Board Multilayer PCBA 175um OSP PTEF LPI

PCBs we made

HASL Prototype PCB Board Multilayer PCBA 175um OSP PTEF LPI

HASL Prototype PCB Board Multilayer PCBA 175um OSP PTEF LPI​

HASL Prototype PCB Board Multilayer PCBA 175um OSP PTEF LPI

HASL Prototype PCB Board Multilayer PCBA 175um OSP PTEF LPI

Equipment

HASL Prototype PCB Board Multilayer PCBA 175um OSP PTEF LPI

Certifications

HASL Prototype PCB Board Multilayer PCBA 175um OSP PTEF LPI

Factory View

HASL Prototype PCB Board Multilayer PCBA 175um OSP PTEF LPI

FAQ

Q1: How can I get a quotation:
. Please send gerber file with format: .PCB / .P-CAD / .DXP / .Gerber

Q2: Can you manufacture my PCBs from a picture file?
. Could you please provide a sample?

Q3: Do you have PCB in stock?
. Most of our PCB board are customized, which according to Gerber file.
. ABIS has samples in stock that could be sent to you for quality checking always.


Q4: What board manufacturer do you use for FR4?
. Main Suppliers(FR4): Kingboard (Hong Kong), NanYa (Taiwan), and Shengyi (China).

Q5: Will my PCB files be checked?
. Checked within 12 hours. Once Engineer's question and working file be approved, production will start.

Q6: What do you require in order to produce an assembly quotation?
. Bill of materials (BOM) detailing:
a), manufacturers parts numbers,
b), components suppliers' parts number (e.g. Digi-key, Mouser, RS )
c), PCBA sample photos if possible.
d), Quantity

Please keep us informed for any interest!
ABIS cares every your order even 1 piece!
