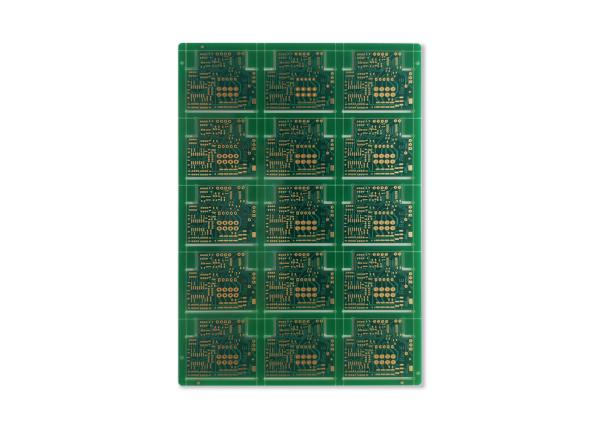

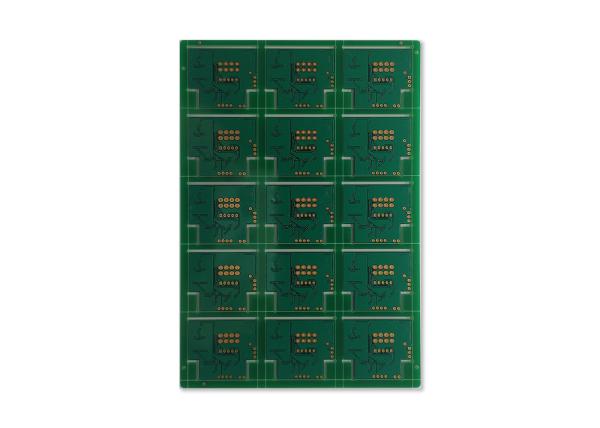

Rogers OSP Multilayer Pcb Board 16mil HDL ISO14001 For Medical Device
Rogers OSP Multilayer Pcb Board 16mil HDL ISO14001 For Medical Device
Rogers OSP Multilayer Pcb Board 16mil HDL ISO14001 For Medical Device
Rogers OSP Multilayer Pcb Board 16mil HDL ISO14001 For Medical Device
Specifications
Brand Name :
ABIS
Model Number :
F-R-PCB2
Certification :
ISO14001, ISO9001, UL, cUL, TS16949
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T, Western Union, paypal ect.
Supply Ability :
60,000sqm per month
Delivery Time :
1-15 working days
Packaging Details :
vacuum package
Base Material :
CEM-3,High TG,FR4 Halogen Free, Rogers
Copper :
1-2oz
PCB Thickness :
1.6mm
Surface finishing :
Immersion Gold
Application :
Consumer Electronics
Legend Color :
White
Min. line width :
0.075mm
Product name :
MultiLayers PCB
Layer :
4 Layers
Type :
Electronic Board
Usage :
OEM Electronics
Mini Holes: :
0.2mm
Description

Multi Layer PCB copper 4 layer pcb board 6 layers pcb for Medical Device

Rigid PCB Production Capacity
SERIAL ITEM TECHNICAL DATA
1 Types of Products HDL Multilayer PCB, Buried/Blind Via Board, High Frequency Board, Aluminum Base Board Flex-Rigid PCB,Teflon Board, and HDI
2 Layers 2-32(layers)
3 Max Board Size 1200x560mm 47" x 22"
4 Min Board Thickness 4(layers)0.40mm 16mil
6(layers)0.80mm 32mil
8(layers)1.00mm 40mil
10(layers)1.20mm 48mil
5 Copper Clad(Max.) 20 oz(outer)/4 oz(inner)
6 Min line Width/space 0.075mm 3mil
7 Drill Size Mechanical (min) 0.20mm 8mil
8 Drill Size Laser(min) 0.10mm 4mil
9 PTH Wall Thickness 0.020mm 0.8mil
10 PTH dia tolerance ±0.075mm ±3mil
11 NPTH hole dia tolerance ±0.05mm ±2mil
12 Hole Position Deviation ±0.05mm ±2mil
13 Outline Tolerance ±0.10mm ±4mil
14 S/M Pitch 0.08mm 3mil
15 Insulation Resistance 1E+12Ω(Normal)
16 Test Voltage 50~300V
17 Aspect ratio 8:01
18 Thermal Shock 3x10Sec@288 ºC
19 Warp and Twist ≤0.7%
20 Current breakdown 10A
21 Electric Strength >1.3KV/mm
22 Peel Strength 1.4N/mm
23 Solder Mask Abrasion ≥6H
24 Flammability 94V-0
25 Impedance Control +/-10%(Differential)
26 Buried Via Yes
27 Blind Via Yes
28 HDI 2+N+2 4mil Via hole
29 Surface Finished ENIG, ImAg, ImSn, OSP, HASL free
30 Materials FR-4 , Copper core, Getek , Rogers, Aluminum core, High TG, Teflon, black Fr4


Rogers OSP Multilayer Pcb Board 16mil HDL ISO14001 For Medical Device

Related Products:

Rogers OSP Multilayer Pcb Board 16mil HDL ISO14001 For Medical Device

Company Profile:

ABIS CIRCUITS CO., LTD Created in 2006,as a long history China based PCB supplier, ABIS manufactures different kinds of printed circuit boards, including MCPCB,CEM-1,CEM-3,and FR4,FR-4 high Tg, Rogers, Teflon, Arlon ets special material.
ABIS has set up two PCB factories in China: one for MCPCB producing, quick turn and small volumn making, and another for mass production. Currently, ABIS modern plants occupy total 10000 s.q.m facility, with more than 1100 stable and experienced workers. Professionalism and continuous optimization of manufacturing processes have positioned ABIS as a reliable and favorite partner for global companies.

Rogers OSP Multilayer Pcb Board 16mil HDL ISO14001 For Medical Device

Workshop:

Rogers OSP Multilayer Pcb Board 16mil HDL ISO14001 For Medical Device

FAQ:

Q1: When can I get the quotation?
A: We usually quote with 1 hour after we get your inquiry. If you are very urgent, please call us or tell us in your email.
Q2: Can you provide free samples for me?
A: Free samples depend on your order quantity.
Q3: I am a small wholesaler, do you accept small order?
A: It's no problem. If you're small wholesaler, we would like to grow up with you together.
Q4: How many days will samples be finished? And how about the mass production?
A: Generally 2-3 days for samples making. The lead time of mass production will depend on the order quantity and the season you place the order.
Q5: If I order big quantity, what's the good price?
A: Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.
Q6: How can we know the processing about PCB order?
A: Each Customer will have a sale to contact with you. Our working hours: AM 9:00-PM 19:00(Beijing Time) from Monday to Friday. We will reply your email as soon as quickly during our working time. And you also could contact with our sales by cellphone if urgent.
Q7: Can I have samples to test?
A: Yes, we are pleased to supply module samples to test and check quality, mixed sample order is available. Please note buyer should pay for shipping cost.
Q8: Can you design pcb and make files for us?
A: yes,We have a professional drawing engineers' team that you can trust.
Q9: If all pcb , PCBAs will be tested before delivery if we provide the function testing method?
A: Yes, we ensure that each piece of pcb, PCBA will be tested before shipment, we ensure the goods we sent with good quality
Q10: What is the shipping method?
A: We suggest you using DHL, UPS, FedEX, TNT forwarder.
