FR4 Green ink Electronic Printed Circuit Board Prototyping,PCB Circuit Board Manufacturer

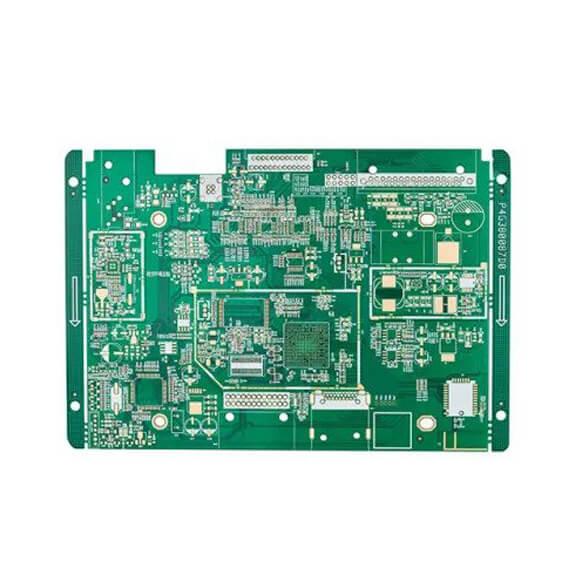

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)
Professional on PCB and PCBA for 15 years -- One-Stop Service!!!!
1. PCB EMC design/corrective services/Testing sevices/Certification services
2. From 2 to 24 layers PCB Fabrication
3. From sample to batch processing
4. 48 hours fastest delivery
5. IPC2/3 acceptance criteria
6. Factory direct wholesale price
7. Replying with price within 1 day.
8. Certificate. ROHS, UL,SGS,9001-2000, ISO14001, SGS Lead-Free
Capability
Item | Spec |
Layers | 1~20 |
Board Thickness | 0.1mm-8.0mm |
Material | FR-4, CEM-1/CEM-3, PI, High Tg, Rogers, PTEF, Alu/Cu Base, etc |
Max Panel Size | 600mm×1200mm |
Min Hole Size | 0.1mm |
Min Line Width/Space | 3mil(0.075mm) |
Board Outline Tolerance | 士0.10mm |
Insulation Layer Thickness | 0.075mm--5.00mm |
Out Layer Copper Thickness | 18um--350um |
Drilling Hole (Mechanical) | 17um--175um |
Finish Hole (Mechanical) | 0.10mm--6.30mm |
Diameter Tolerance (Mechanical) | 0.05mm |
Registration (Mechanical) | 0.075mm |
Aspect Ratio | 16:01 |
Solder Mask Type | LPI |
SMT Mini. Solder Mask Width | 0.075mm |
Mini. Solder Mask Clearance | 0.05mm |
Plug Hole Diameter | 0.25mm--0.60mm |
Impedance Control Tolerance | 士10% |
Surface finish | ENIG, OSP, HASL, Chem. Tin/Sn, Flash Gold |
Soldermask | Green/Yellow/Black/White/Red/Blue |
Silkscreen | Red/Yellow/Black/White |
Certificate | UL, ISO 9001, ISO14001, IATF16949 |
Special Request | Blind hole, Gold finger, BGA, Carbon ink, peelable mask, VIP process, Edge plating, Half holes |
Material Suppliers | Shengyi, ITEQ, Taiyo, etc. |
Common Package | Vacuum+Carton |
Testing
E-testing | 100% |
QFP Pitch | 16mil (0.40mm) |
BGA Pitch | 16mil (0.40mm) |
Connector Pitch | 16mil (0.40mm) |
AOI | All Multilayer |
Impedance Control | ± 10% |
Solderability Testing | As standard |
Ionic Contamination | On Request |
Lead Time
Number of Layers | Quick Turn Lead Time |
2 | 24 Hours |
4 | 48 Hours |
6 | 72 Hours |
8 | 96 Hours |
10 | 120 Hours |
12 | 120 Hours |
14 | 144 Hours |
16 | Depend on Technical Specification |
18 | Depend on Technical Specification |
20 | Depend on Technical Specification |
Delivery Time
Air Freight Lead Time – 4 Days |
Sea Freight Lead Time – 30 Days |
All Far East lead times are subject to customs clearance |
Premium International shipments can be arranged by DHL, Fedex, UPS or TNT at extra cost |
Product Application
1, Consumer Electronics: TV, DVD,Digital Caramer, air conditoner, Refrigerator,set-top box etc;
2, Security monitor: Moible phone, PDA, GPS, caramer monitor etc;
3, Telecom Communication :wireless LAN card, XDSL router,Servers, Optical Device,Hard Drive etc;
4, Industrial controls: Medical device ,UPS equipment, Control device etc;
5, Vehicle Electronices: Car etc;
6, Military & Defense : Military Weapons etc;
Product We Produce
1. Rigid, Flex, Rigid-Flexible PCB.
2. Buried/Blind Vias, Via in Pad, Counter Sink Hole, Screw Hole(Counterbore), Press-fit, Half Hole.
3. HASL lead-free, Immersion Gold/ Silver/Tin, OSP, Gold plating/finger, Peelable mask,
4. Printed Circuit Boards adhere to IPC Class 2 & 3 international PCB standard.
5. Quantities range from prototype to medium & big batch production.
6. 100% E-test
Company Profile
Abis Circuits Co. Ltd, established in 2006, Located in Shenzhen, our company has about 1100 workers and two PCB workshops with about 50000 square meters. Our products are mostly used in the field of Industrial Control, Telecommunication, Automotive products, Medical, Consumer, Security, and others.Now we have passed ISO9001, ISO14001, UL, etc., With constant hard work of our staff and ongoing support from customers both home and abroad, we can provide up to 20 layers, Blind and buried Board, high-precision(Rogers), High TG, Alu-base and flexible boards to our customer with fast turn and high-quality level.
ABIS Histories
2006 ABIS Electronics Founded, and Set up the factory in Shenzhen
2008 Shenzhen Factory Put into Production and Passed the certification of America UL and ISO9001
2009 Shenzhen Factory got Canada UL.and Start to make 16 Layers in Volume
2010 Overseas Sales Department ABIS Circuits Co., Ltd established
2010 Acquired the ISO14001 environmental management system certification
2012 The manufacturing equipment was updated and a batch of cutting-edge manufacturing equipment was imported from Sweden, France, the United States, Germany, and other countries
2015 We have an investment in our Subcontractor in Jiangxi, No of Employees 1200 with 5000 square meters, the plant monthly product capability reached to 40,000m2
2016 The team was refined, and all staff participated in the development training to create a wolf team
2017 Attend Expo Electronica 2017/ electronica India
2018 Attend Expo Electronica 2018/Electronica India
2019 Attend Expo Electronica 2019/ Electronica India
Our mission
PCBs for demanding customers, on time with zero defects, produced sustainably at the lowest total cost. Manufacturing many different types of PCBs in smaller series (High-mix, Low-volume) involves constantly adjusting, adapting and problem solving. We know that the PCB is a critical key component for our customers. And we know for sure that anything can happen during the complex production process involved – and it often does. In our world, taking full responsibility means a lot of things, including a responsible and sustainable approach in everything we do – socially, environmentally and ethically. When a problem occurs, we try as hard as we can to understand the problem and find a solution. Our mindset is that we own the problem and don’t leave until we have cleared it up.
Certifications
WorkShop
FAQ
1. How do ABIS ensure quality?
Our high quality standard is achieved with the following.
1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process
2. What kinds of boards can ABIS process?
Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.
3. What data are needed for PCB production?
PCB Gerber files with RS-274-X format.
4. What’s the typical process flow for multi-layer PCB?
Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.
5. How many types of surface finish ABIS can do?
the leader has the full series of surface finish, such as: ENIG, OSP, LF-HASL, gold plating (soft/hard), immersion silver, Tin, silver plating, immersion tin plating, carbon ink and etc. .. OSP, ENIG, OSP + ENIG commonly used on the HDI, we usually recommend that you use a client or OSP OSP + ENIG if BGA PAD size less than 0.3 mm.
6. What are the main factors which will affect the price of PCB?
Material;
Surface finish;
Board thickness, Copper thickness;
Technology difficulty;
Different quality criteria;
PCB characteristics;
Payment terms;
(ABIS cares every your order even 1 piece)
