Smt Stencil Cleaning Machine SUS304 Automatic Stencil Cleaner solder paste printing stencil cleaner
Smt Stencil Cleaning Machine SUS304 Automatic Stencil Cleaner solder paste printing stencil cleaner
Smt Stencil Cleaning Machine SUS304 Automatic Stencil Cleaner solder paste printing stencil cleaner
Smt Stencil Cleaning Machine SUS304 Automatic Stencil Cleaner solder paste printing stencil cleaner
Smt Stencil Cleaning Machine SUS304 Automatic Stencil Cleaner solder paste printing stencil cleaner
Smt Stencil Cleaning Machine SUS304 Automatic Stencil Cleaner solder paste printing stencil cleaner
Specifications
Brand Name :
SHENHUA
Model Number :
SME-3100E
Certification :
CE,UL
Place of Origin :
Dongguan, China
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T, D/P, Western Union, Paypal, Money Gram
Supply Ability :
300sets/Year
Delivery Time :
25~30 days
Packaging Details :
Vacuum +plywood case package, case size: 1100*1200*2100 mm(L*W*H)
Material :
SUS304 stainless steel
Stencil size :
L1000*W1000*T40mm as max
Liquid tank capacity :
80L
Wash time :
3~5min
Blow dry time :
3~5min
Compressed-air supply :
0.5~0.7Mpa
Compressed-air flow rate :
400~600L/min
Wash type :
2 rods 360° rotation spray liquid wash
Filter :
1mm/100um/1um
Machine size :
L1100xW1350xH1950
Machine weight :
450kg
HS Code :
847989990
Description

SHENHUA is a leading smt stencil cleaner manufacturer company in China. We make pneumatic stencil cleaning machine, electric spray cleaning machine and ultrasonic stencil cleaning machine. We've installed over 800 sets in domestic and overseas customer's factories. We sold 100 sets SME-750 pneumatic stencil cleaning machine in 2020.

SME-3100E is Smt Stencil Cleaning Machine SUS304 Automatic Stencil Cleaner solder paste printing stencil cleaner.

It is specally designed for bigger size stencil. Famous pneumatic parts, strictly produce process, patented rotation spray rods guarantee you a high quality stencil cleaning machine. To clean solder paste stencil is very easy for this machine. It make your cleaning process safe, easy, cost down and efficient.
Both solvent and water-based clean liquid can be use in SME-750. Cleaning result is the same-100% clean. We provide high quality machines!

Machine Features:

1. SUS 304 structure, Acid and Alkali corrosion resistance, 15 years lifespan.
2. Only driven by compressed air, no use electric power at all.
3. One button easy operation, clean and dry complete automatically.
4. Patent 360° rotation spray rods on both sides, ensure good cleaning quality and stable stencil tension.
5. Liquid recycle use, low consumption.
6. Inner-lock safety door and safety valve, once open, machine will be stopped immediately.
7. 3-level precise liquid filtering system. Liquid used repeatedly.
8. Super well-known Pneumatic parts from all over the word manufactures.
9. Modular design, easy maintenance.

Machine Spec:

Item SME-3100E spec
Max stencil size L1000 x W1000 x H40(mm)
Liquid tank 80L
Clean time 3~6min
Dry time 3~6min
Compressed air pressure 0.5~0.7Mpa
Air flow rate 800~1000L/min
Clean method 360°rotat spray clean + compressed air blow dry
Filter system 20um/5um/1um, 3 level
Machine size L1100 x W1350 x H1950(mm)
Machine weight 430KG

Other accessories , please discuss with us in details.

Customer Question & Answer

Ask something for more details
Q1: Can SME-3100E clean stencil without frame?
A1: Yes, it can, we need a stencil hold jig for this kind of stencil without frame.
Q2: Can SME-3100E clean solder paste mis-printed PCB?
A2: Yes, it can by using a pcb holding jig.
Q3: Is SME-3100E safety?
A3: Yes, it is, it driven by compressed-air, not using electric power, so both solvent like alchol ,IPA and aqueous liquid can be use in this machne to clean solder paste stencil.
Q4: Can this machine clean red glue printing stencil?

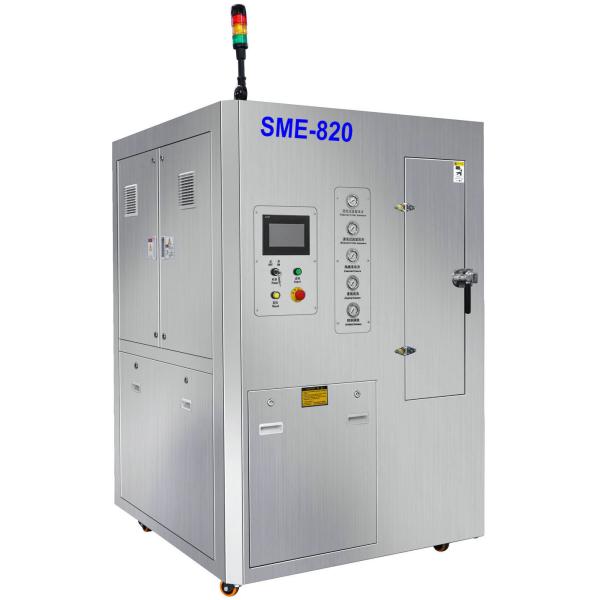

A4: For thickness 0.1~0.3mm red glue stencil, SME-3100E can clean it very well; but for 3mm thickness cooper red glue stencil and plastic red glue stencil, cleaning result is not so good, especially the little holes. We recommend to use our SME-800 electric stencil cleaning machine, it is more powerful and many customers chose our SME-800 to clean thick red glue cooper stencil for its good cleaning performance.
Stencil cleaning comparison beofore and after cleaning:
Smt Stencil Cleaning Machine SUS304 Automatic Stencil Cleaner solder paste printing stencil cleaner
Smt Stencil Cleaning Machine SUS304 Automatic Stencil Cleaner solder paste printing stencil cleaner
