Small Electronic Printed Metal Substrate PCB 4 Layers Soft Hard High Voltage Test
Small Electronic Printed Metal Substrate PCB 4 Layers Soft Hard High Voltage Test
Small Electronic Printed Metal Substrate PCB 4 Layers Soft Hard High Voltage Test
Small Electronic Printed Metal Substrate PCB 4 Layers Soft Hard High Voltage Test
Specifications
Model Number :
4 layers of soft and hard
Brand Name :
China chao sheng
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
1PCS
Payment Terms :
T/T, Western Union
Supply Ability :
5-200K/pcs per month
Delivery Time :
25-30
Packaging Details :
Anti-static bag + Anti-static bubble wrap + Good quality carton box
Price :
Negotiation
Certification :
ISO/UL/RoHS/TS
Base material :
FR-4,Metal/ceramic/aluminum base
Surface finishing :
Gold plating
Product name :
SJX,Shenzhen 94V0 LED Display PCB Manufacturer Metal Core PCB
Number of layers :
12-Layer
Pcb assembly method :
Through-hole
Material :
Metal Base (Aluminum
Pcb test :
Flying probe and AOI (Default)/Fixture Test
Hi-tg fr4 material :
Tg-130 Tg-140 Tg-160 Tg-170
Pcb assembly test :
AOI,X-RAY
Description

four layers of soft and hard,circuit board material,small circuit board,electronic printed circuit board

Product Description

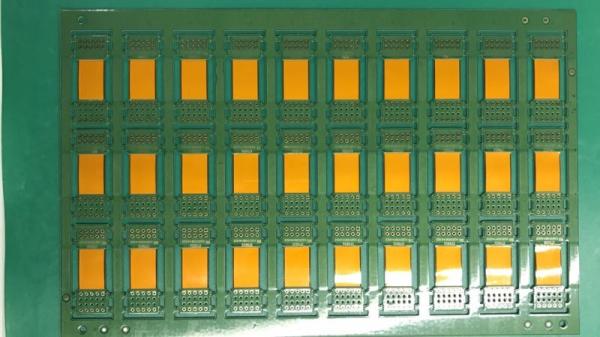

  1. Product area: high-speed rail system;
  2. Number of layers: four layers of soft and hard
  3. Plate thickness 1.60mm ± 10%; size: 352 * 128mm / 30PCS,
  4. Process structure: Panasonic + FR-4TG170, laser hole 0.10mm, hole in the plate, copper thickness 1OZ, line width line spacing 3/3mil, impedance ± 10% Ω, size: 352 * 128mm / 30PCS, contiguous delivery, not receiving Fork
  5. Surface treatment: electric gold 2u"
  6. Test method: computer 100% E-Test,100%, 2500V high voltage test
  7. Packing: vacuum packaging + desiccant + humidity card + carton
  8. Mode of transport: air, sea, motor, logistics, express
  9. Printed circuit board (pcb) and PCBA products
    Communication terminal, communication station, electronic communication, optical fiber, optical module, communication equipment, communication instrument, computer, household appliance, testing equipment, testing instrument, instrument, SD card, SG card, mobile phone, computer, various antennas, cars, music Equipment, playback equipment, banking equipment, medical instruments, medical equipment, medical equipment, aerospace, aviation, military, LED, OLED, OLCD power control power supply, industrial power supply, communication power supply, automotive power supply, office equipment, digital products,computers,etc.Applications;
    Flexible circuit board (FPC) and FPCA product areas
    CD, hard disk, printer, fax machine, scanner, sensor, mobile phone, connector, module, walkie-talkie antenna card, high-end camera, digital camera, laser head, CD, medical, instrumentation, drive, automotive instrumentation, medical instrument, Medical equipment, banking equipment, industrial instruments, LED light bars, military, aviation, aerospace, defense and other high-tech products, of which more than 70% of the products are exported to Europe, America, Europe, Central Europe, Western Europe, Southeast Asia, Asia-Pacific and other countries and area.

Our Service

  1. PCB Production Service.
  2. PCB FPC design Service.
  3. PCB Assembly Service. (SMT, BGA, DIP)
  4. PCBA Housing assembly serivce.
  5. PCBA Final Functional Testing.
  6. PCB PCBA Copy Service.
  7. Electronic Components Purchasing & BOM List Purchasing Services.
  8. PCB SMT Stencil. (Laser cut & Etching)

PCB, FPC process production capability

Type Jiangxi Chaosheng Zhejiang Kunyu
Scope Double Side,Multilayers(4-20) Multilayers(4-28),HDI(4-20)Flex,Rigid Flex
Double Side CEM-3, FR-4,Rogers RO4233,Bergquist Thermal Clad 12mil–126mil (0.3mm-3.2mm) CEM-3, FR-4,Rogers RO4233,Bergquist Thermal Clad 4mil–126mil (0.1mm-3.2mm)
Multilayers 4-20 layers, board thickness 15mil-126mil (0.38mm-3.2mm) 4-28 layers, board thickness 8mil-126mil (0.2mm-3.2mm)
Buried/Blind Via 4-18 layers, board thickness 15mil-126mil(0.38mm-3.2mm) 4-20 layers, board thickness 10mil-126mil(0.25mm-3.2mm)
HDI / 1+N+1,2+N+2,3+N+3,Anylayer
Flex & Rigid-Flex PCB / 1-8layers Flex PCB ,2-12layers Rigid-flex PCB HDI+Rigid-flex PCB
Laminate Shengyi,EMC,ITEQ,Panasionic,Hitachi....
Soldermask Type(LPI) Taiyo,Goo’s,Probimer..... Taiyo,Goo’s,Probimer FPC.....
Peelable Soldermask Peters
Carbon ink Nipon
HASL/Lead Free HASL Thickness: 0.5-40um Thickness: 0.5-40um
OSP Entek Plus HT, Preflux F2 LX
ENIG (Ni-Au) Au:0.03um≤max＜0.06um Ni:3um≤max≤6um
Electro-bondable Ni-Au Au:0.2-1.0um Ni:2.54-10um
Electro-nickel palladium Ni-Au Au: 0.015-0.075um Pd 0.02-0.075um Ni:2-6umm
Electro. Hard Gold Au:5~50uin(0.125~1.27um); Nithickness:100~250uin(2.50~6.25um)
Thick tin 1.0-1.4um
Capability Mass Production Mass Production
Min Mechanical Drill Hole 0.20mm 0.20mm
Min. Laser Drill Hole / 4mil (0.100mm)
Line Width/Spacing 3mil/3mil 2mil/2mil
Max. Panel Size 18.5" X 24.5"(470mm X 622mm) 21.5" X 24.5"(546mm X 622mm)
Line Width/Spacing Tolerance +/-10% ~ +/-20% Non electro coating:+/-5um,Electro coating:+/-10um
PTH Hole Tolerance +/-0.003inch(0.075mm) +/-0.002inch(0.050mm)
NPTH Hole Tolerance +/-0.002inch(0.050mm) +/-0.002inch(0.050mm)
Hole Location Tolerance +/-0.003inch(0.075mm) +/-0.002inch(0.050mm)
Hole to Edge Tolerance +/-0.004inch(0.100mm) +/-0.004inch(0.100mm)
Edge to Edge Tolerance +/-0.004inch(0.100mm) +/-0.004inch(0.100mm)
Layer to Layer Tolerance +/-0.004inch(0.100mm) +/-0.003inch(0.075mm)
Impedance Tolerance +/- 10% +/- 10%
Warpage % Max ≤0.75% Max≤0.5%

Technology (HDI Product)

ITEM Production Tighten Control
Laser Via Drill/Pad 0.125/0.30 , 0.125/0.38 0.125/0.28 , 0.125/0.36 , 0.20/0.40
Blind Via Drill/Pad 0.25/0.50 0.20/0.45
Line Width/Spacing 0.10/0.10 0.075/0.075
Hole Formation CO2 Laser Direct Drill
Build Up Material FR4 LDP(LDD); RCC 50 ~100 micron
Cu Thickness on Hole Wall Blind Hole: 10um(min) Buried Hole: 13um(min)
Aspect Ratio 0.8 : 1

Technology (Flexible PCB)

Project Ability
Roll to roll (one side) YES
Roll to roll (double) NO
Volume to roll material width mm 250
Minimum production size mm 250x250
Maximum production size mm 500x500
SMT Assembly patch (Yes/No) YES
Air Gap capability (Yes/No) YES
Production of hard and soft binding plate(Yes/No) YES
Max layers(Hard) 10
Tallest layer(Soft plate) 6
Material Science
PI YES
PET YES
Electrolytic copper YES
Rolled Anneal Copper Foil YES
PI
Covering film alignment tolerance mm ±0.1
Minimum covering film mm 0.175
Reinforcement
PI YES
FR-4 YES
SUS YES
EMI SHIELDING
Silver Ink YES
Silver Film YES

Surface treatment: full board OSP, full board immersion gold, whole board electric nickel gold, electric gold + immersion gold, electric gold + OSP, OSP + immersion gold, OSP + carbon bridge, gold finger, OSP + gold finger, immersion gold + gold finger, Shen tin, immersion silver, lead-free tin spray

PCB, FPC product application field

Various digital products, automotive new energy, automotive products, military, aerospace, medical, wireless terminals, wired terminals, communication equipment, communication stations, finance, industrial industrial control, consumer electronics, educational equipment, smart devices, smart products, security, LED, computer, mobile phone and other electronic products

FAQ:

Q: What files do you use in PCB fabrication?

A: Gerber or Eagle, BOM listing, X, Y sitting report, PNP and Components Position

Q: Is it possible you could offer sample?

A: Yes, we can custom you sample to test before mass production

Q: When will I get the quotation after sent Gerber, BOM and test procedure?

A: Within 6-48hours for PCB quotation and around 24-48 hours for PCBA quotation.

Q: According to the difficulty of high-layer boards, How can I know the process of my PCB production?

A: 7-35days for PCB production and components purchasing, and 14-20days for PCB assembly and Testing

Q: How can I make sure the quality of my PCB?

A: We ensure that each piece of PCB, PCBA products work well before shipping. We'll test all of them according to your test procedure.
