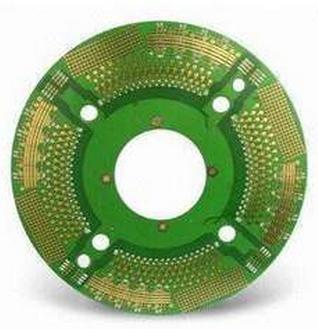

8-layer coil electric FR4 Printed Circuit Board with Laser Machining

Product Description

1. FR4 Printed Circuit Board Features:
2. minimum hole 0.10mm, copper thickness 1OZ, line width line spacing 4/4mil, impedance Ω±10%, Resin plug hole + copper fill hole
3. Product area: electric products
4. Number of floors: 8 layers
5. Plate thickness: 1.60mm
6. Product structure: FR-4, TG150, inner and outer copper thickness 2OZ, impedance ±10%
7. Solder mask green, immersion gold 2u"
8. Vacuum Packaging + Moisture-proof Bead + Humidity Card + Cartonday

9. Printed circuit board (pcb) and PCBA product areas
   Communication terminals, communication stations, electronic communications, computers, household appliances, appliances, SD cards, SG cards, mobile phones, antennas, computers, automobiles, music equipment, playback equipment, banking equipment, medical instruments, medical equipment, medical equipment, aerospace, Aviation, military, LED, OLED, OLCD power control power supply, industrial power supply, communication power supply, automotive power supply, office equipment, digital products, computers and other product applications;
   Winding circuit board (fpc) and FPCA product areas
   CD, hard disk, printer, fax machine, scanner, sensor, mobile phone, connector, module, walkie-talkie antenna card, high-end camera, digital, camera, laser head, CD, medical, instrumentation, drive, automotive instrumentation, medical instrument , Medical equipment, banking equipment, industrial instruments, LED strips, military industry, aviation, aerospace, national defense and other high-tech products, more than 70% of the products are exported to the Americas, Europe, Japan, Asia Pacific and other countries and regions.

FR4 Printed Circuit Board Application,PCB process production capability

PCB, FPC main material supply

Quality Assurance:
Our Quality processes include:
1. IQC: Incoming Quality Control (Incoming Materials Inspection)
2. First Article Inspection for every process
3. IPQC: In Process Quality Control
4. QC: 100% Test & Inspection
5. QA: Quality Assurance based on QC inspection again
6. Workmanship: IPC-A-610, ESD
7. Quality Management based on CQC, ISO9001:2008, ISO 14001:2004

Certificates:
ISO9001-2008
ISO/TS16949
UL
IPC-A-600G and IPC-A-610E Class II compliance
Customer's requirements

Quick Detail:

1. PCB Assembly on SMT and DIP

2. PCB schematic drawing/ layout /producing

3. PCBA clone/change board

4. Components sourcing and purchasing for PCBA

5. Enclosure design and plastic injection molding

6. Full range of testing services. Including: AOI, Fuction Testing , In Circuit Testing, X-Ray For BGA Testing,

7. IC programming

Surface treatment: full board OSP, full board immersion gold, whole board electric nickel gold, electric gold + immersion gold, electric gold + OSP, OSP + immersion gold, OSP + carbon bridge, gold finger, OSP + gold finger, immersion gold + gold finger, Shen tin, immersion silver, lead-free tin spray

PCB, FPC product application field

Various digital products, automotive new energy, automotive products, military, aerospace, medical, wireless terminals, wired terminals, communication equipment, communication stations, finance, industrial industrial control, consumer electronics, educational equipment, smart devices, smart products, security, LED, computer, mobile phone and other electronic products

FAQ:
Q: What files do you use in PCB fabrication?
A: Gerber or Eagle, BOM listing, PNP and Components Position
Q: Is it possible you could offer sample?
A: Yes, we can custom you sample to test before mass production
Q: When will I get the quotation after sent Gerber, BOM and test procedure?
A: Within 6 hours for PCB quotation and around 24-48 hours for PCBA quotation.
Q: How can I know the process of my PCB production?
A: 5-7days for PCB production and components purchasing, and 14 days for PCB assembly and Testing
Q: How can I make sure the quality of my PCB?
A: We ensure that each piece of PCB products work well before shipping. We'll test all of them according to your test procedure.
