12 layers of second-order HDI FR-4, TG170, inner and outer copper ,HDI Printed Circuit Boards,prototype pcb fabrication

Product Description

1. Product area: Inductive drive products

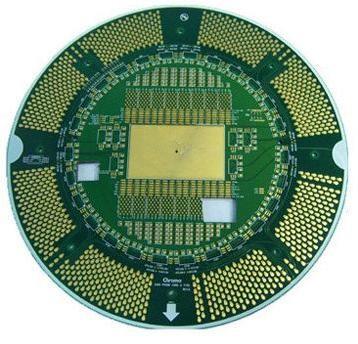

2. Number of layers: 12layers of second-order HDI,minimum hole 0.10mm, copper thickness 1OZ, line width line spacing 4/4mil, impedance Ω±10%, Resin plug hole + copper fill hole
3. Plate thickness: 2.0mm
4. Product structure: FR-4, TG170, inner and outer copper thickness 3OZ, impedance ±10%
5. Solder mask green, immersion gold 2u"
6. Quantities range from prototype to volume production.
7. 100% E-Test
