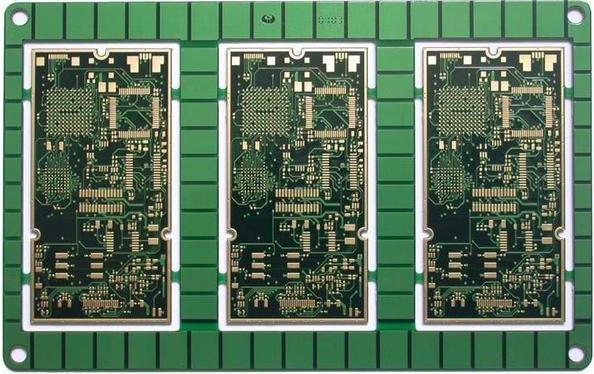

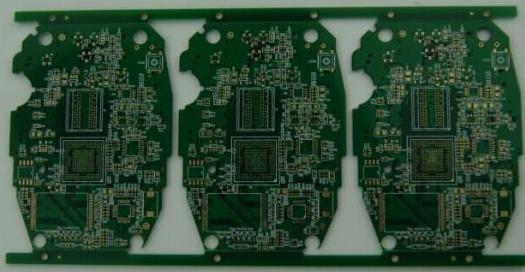

10% Impedance Value HDI Printed Circuit Boards 4 Layers 0.10mm Hole For Smart Device
10% Impedance Value HDI Printed Circuit Boards 4 Layers 0.10mm Hole For Smart Device
10% Impedance Value HDI Printed Circuit Boards 4 Layers 0.10mm Hole For Smart Device
10% Impedance Value HDI Printed Circuit Boards 4 Layers 0.10mm Hole For Smart Device
Specifications
Brand Name :
China chao sheng
Model Number :
CSPCB1450
Certification :
ISO/UL/RoHS/TS
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
1PCS
Price :
usd0.18/pcs
Payment Terms :
T/T, Western Union
Supply Ability :
2000K/per month
Delivery Time :
15-20day
Packaging Details :
Anti-static bag + Anti-static bubble wrap + Good quality carton box
Product Areas :
Smart Device
Material :
Halogen-free FR-4 TG180
Product Structure :
22 Layers AnylayerHDI
Impedance Value :
± 10%
Aspect Ratio :
18:1
Minimum Hole :
0.10mm
Line Width And Space :
3/3mil
Number Of Holes :
270Million / Hole
Surface Treatment :
Immersion Gold, Electro-nickel Gold, Immersion Tin, OSP, Lead-free Spray Tin
PCBA Information :
BOM Report, X, Y Left Plot
Description

4 layers AnylayerHDI, Halogen-free FR-4 TG180 Thick copper + thick gold inner and outer copper, HDI Printed Circuit Boards, prototype pcb fabrication

1: Medical Bluetooth module motherboard
2: Halogen-free FR-4 TG180, inner and outer copper thickness 35um, minimum line width line spacing 3/3mil, hole ratio 10:1, minimum hole 0.10mm, blind hole buried hole, immersion gold, red solder resist, white
3: The board thickness is 1.60mm,
4: blind hole, resin plug hole + plating hole
Printed Circuit Boards are 94V0 compliant, and adhere to IPC610 Class 2 international PCB
Standard.
Quantities range from prototype to volume production.
100% E-Test

Printed circuit board (pcb) and PCBA product areas
Communication terminals, communication stations, electronic communications, computers, household appliances, appliances, SD cards, SG cards, mobile phones, antennas, computers, automobiles, music equipment, playback equipment, banking equipment, medical instruments, medical equipment, medical equipment, aerospace, Aviation, military, LED, OLED, OLCD power control power supply, industrial power supply, communication power supply, automotive power supply, office equipment, digital products, computers and other product applications;
Winding circuit board (fpc) and FPCA product areas
CD, hard disk, printer, fax machine, scanner, sensor, mobile phone, connector, module, walkie-talkie antenna card, high-end camera, digital, camera, laser head, CD, medical, instrumentation, drive, automotive instrumentation, medical instrument , Medical equipment, banking equipment, industrial instruments, LED strips, military industry, aviation, aerospace, national defense and other high-tech products, more than 70% of the products are exported to the Americas, Europe, Japan, Asia Pacific and other countries and regions.

FAQ:

Q: What files do you use in PCB fabrication?

A: Gerber or Eagle, BOM listing, X, Y sitting report, PNP and Components Position

Q: Is it possible you could offer sample?

A: Yes, we can custom you sample to test before mass production

Q: When will I get the quotation after sent Gerber, BOM and test procedure?

A: Within 6-48hours for PCB quotation and around 24-48 hours for PCBA quotation.

Q: According to the difficulty of high-layer boards, How can I know the process of my PCB production?

A: 7-35days for PCB production and components purchasing, and 14-20days for PCB assembly and Testing

Q: How can I make sure the quality of my PCB?

A: We ensure that each piece of PCB, PCBA products work well before shipping. We'll test all of them according to your test procedure.

PCB, FPC process production capability

Technical ltem MassProduct Advanced Technology
2016 2017 2018
Max.Layer Count 26L 36L 80L
Through-hole plate 2～45L 2～60L 2～80L
Max.PCBSize(in) 24*52" 25*62" 25*78.75"
The layer number of FPC 1～36L 1～50L 1～60L
Max.PCBSize(in) 9.8"*196" 9.8"*196" 10"*196"Reel to reel
Layeredplatelayer 2～12L 2～18L 2～26L
Max.PCBSize(in) 9"*48" 9"*52" 9"*62"
Combination of hard and soft layers 3～26L 3～30L 3～50L
Interconnect HDI 5+X+5Interconnect HDI 7+X+7Interconnect HDI 8+X+8,Interconnect HDI
HDI PCB 4～45L 4～60L 4～80L
Interconnect HDI 3+20+3 4+X+4Interconnect HDI 4+X+4,Interconnect HDI
Max.PCBSize(in) 24"*43" 24"*49" 25"*52"
Material FR-4 Rogers FR-4 Rogers FR-4 Rogers
Base material Halogenfree,LowDK Halogenfree,LowDK Halogenfree,LowDK
Build-up Material FR-4 FR-4 FR-4
BOard,Thickness(mm) Min.12L(mm) 0.43 0.42～8.0mm 0.38～10.0mm
Min.16L(mm) 0.53 1.60～8.0mm 0.45～10.0mm
Min.18L(mm) 0.63 2.0～8.0 0.51～10.0mm
Min.52L(mm) 0.8 2.50～8.0mm 0.65～10.0mm
MAX(mm) 3.5 10.0mm 10.0mm
Min.CoreThickness um(mil) 254"(10.0) 254"(10.0) 0.10～254(10.0mm)
Min.Build up Dielectric 38(1.5) 32(1.3) 25(1.0)
BaseCopperWeight Inner Layer 4/1-8 OZ 4/1-15 OZ 4/1-0.30mm
Out Layer 4/1-10 OZ 4/1-15 OZ 4/1-30 OZ
Gold thick 1～40u" 1～60u" 1～120u"
Nithick 76～127u" 76～200u" 1～250u"
Min.HOle/Land um(mil) 150/300(6/12) 100/200(4/8) 100/200(4/8)
Min.Laser via/landum(mil) 60/170(2.4/6.8) 50/150(2/6) 50/150(2/6)
Min. IVH,Hole size/landum(mil) 150/300(6/12) 100/200(4/8) 100/200(4/8)
DieletricThickness 38(1.5) 32(1.3) 32(1.3)
125(5) 125(5) 125(5)
SKipvia Yes Yes Yes
viaoNhie(laserviaon BuriedPTH) Yes Yes Yes
Laser Hole Filling Yes Yes Yes
Technicalltem Mass Product Advanced Technolgy
2017year 2018year 2019year
Drill hole depth ratio ThroughHole 2017year .40:1 .40:1
Aspet Ratio Micro Via .35:1 1.2:1 1.2:1
Copper Filling Dimple Size um(Mil) 10(0.4) 10(0.4) 10(0.4)
Min.LineWidth＆space lnner Layer um(mil) 45/45(1.8/1.8) 38/38(1.5/1.5) 38/38(1.5/1.5)
Plated Layer um(mil) 45/45(1.8/1.8) 38/38(1.5/1.5) 38/38(1.5/1.5)
BGAPitch mm(Mil) 0.3 0.3 0.3
Min.PTH Hole ring um(mil) 75(3mil) 62.5(2.5mil) 62.5(2.5mil)
Line Width Control ∠2.5MIL ±0.50 ±0.50 ±0.50
2.5Mil≤L/W∠4mil ±0.50 ±0.50 ±0.50
≦3mil ±0.60 ±0.60 ±0.60
Laminated structure Layer by layer 3+N+3 4+N+4 5+N+5
Sequential Build-up 20L Any Layer 36L Any Layer 52L Any Layer
Multi-layer overlay N+N N+N N+N
N+X+N N+X+N N+X+N
sequential Lamination 2+(N+X+N)+2 2+(N+X+N)+2 2+(N+X+N)+2
Soft and hard bonding 2+(N+X+N)+2 2+(N+X+N)+2 2+(N+X+N)+2
PTH filling process PTH resin plug hole + plating fill
Electroplated hole/copper plug hole		 PTH resin plug hole + plating fill
Electroplated hole/copper plug hole		 PTH resin plug hole + plating fill
Electroplated hole/copper plug hole
