TG150 2 Layers High TG PCB Board HASL Surface Treatment For Safety Inductor
TG150 2 Layers High TG PCB Board HASL Surface Treatment For Safety Inductor
TG150 2 Layers High TG PCB Board HASL Surface Treatment For Safety Inductor
TG150 2 Layers High TG PCB Board HASL Surface Treatment For Safety Inductor
Specifications
Brand Name :
LEFANG
Model Number :
OT7002L467
Certification :
ISO9001, ISO14001, ISO/TS16949, SGS, UL, RoHs,OHSAS18000
Place of Origin :
Shenzhen,China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
290, 000sqm Per Month
Delivery Time :
2-10 work days
Packaging Details :
Inner: Vacuum Packing; Dry Packing out Packing
Base Material/ Dielectric :
FR - 4
Layer :
2 Layers
surface treatment :
HASL
Copper Thickness :
1 OZ
Solder Mask :
Green
Min. Aperture :
0.2 mm
Line Width/Spacing :
0.1 / 0.1mm
Size :
/
Board thickness :
1.6 Mm
Description

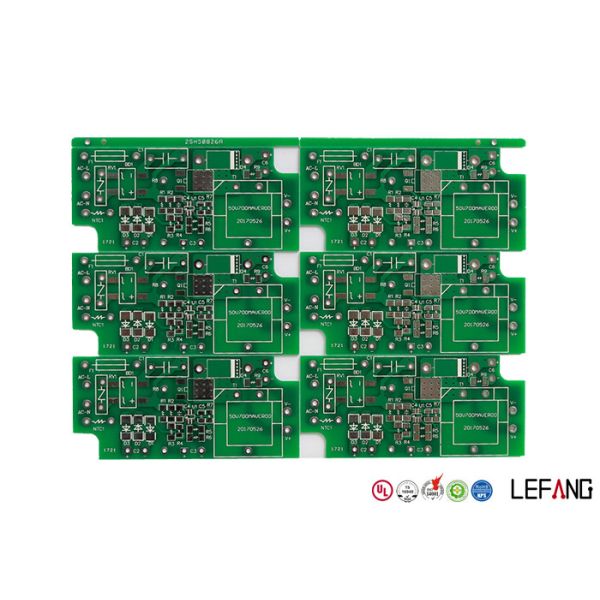

High TG150 PCB Board for Safety Inductor

The 2 layers High TG150 PCB Board is applied for Safety Inductor.And the minaperture of this copper base PCB Board is 0.2 mm, with green solder mask and immersion gold (HASL ) surface treatment.Its thickness is 1.6 mm.

Why choose LEFANG?
TG150 2 Layers High TG PCB Board HASL Surface Treatment For Safety Inductor



Established in 1999, Lefang owns 3 modern Printed Circuit Board factories in Guangdong, China.

We provide One-stop solution for PCB & PCBA manufacturing to our customers home and abroad.

High quality PCB products, competitive price, on time delivery, after-sale service are always offered.


To make the continued progress, we try our best to in every section, including selecting quality raw materials

strictly, imported advanced automated equipments, employing 70 experienced engineers, acquiring global

certification of ISO9001:2008, ISO14001:2004, ISO/TS16949:2009, UL, QC080000, OHSA18000, etc.


Our customers' industry come from Communication, Industrial Control, Automotive, Medical Equipment,

Security Apparatus, Consumer Electronics and LED Lighting.


We sincerely pursue win-win business with customer all the time!

How to get quick quotation?
TG150 2 Layers High TG PCB Board HASL Surface Treatment For Safety Inductor

Step 1 Please send us Gerber file with these format: .CAD / .Gerber / .PCB / .DXP / .P-CAD, etc
Step 2 Also please provide us the below details for quick quotation:

Board material: Fr - 4 / CEM - 1 / CEM - 3 / 22F / Fr - 1 / others
Material brand: SY / KB / Rogers (optional)
Material Specification:High Tg / copper based / aluminum based or others (optional)
Board thickness: 0.1 - 6.0 mm
Copper thickness: 0.05 Oz - 8 Oz ( 17 um - 288 um )
Surface Treatment: OSP / ENIG / HASL / Lead Free HASL / Immersion Tin / Immersion Sin
Color of solder mask and silk print: Green / red / blue / black / white / yellow ,etc
Board size and quantity


If you don't have Gerber file, please provide us the imfomation as step 2 or post your PCB Board to us for clone.

SAMPLE:

Board Basic Info - SAMPLE

Board material

Fr - 4

Material brand

KB

Material Specification

Tg 170

Board thickness

1.6 mm

Copper thickness

1 Oz

Surface Treatment

ENIG

Solder mask / sSilk print

Green / White

Board size

100 mm * 100 mm

Quantity

10k

What kinds of test function will be offered?

TG150 2 Layers High TG PCB Board HASL Surface Treatment For Safety Inductor

AOI (Automated Optical Inspection) Impedance control
Automatic short-circuit testing Metallographic microscope
RoHS detector Fly probe/ fixture mold
Dielectric tester Visual inspection


Now send us your inquiry, and you will be replied within 8 hours!

Comparison of PCB Surface Finish

As we all know, copper is easily oxidized when exposed in the air, which is not good for welding with the electronics components. Therefore, we need to protect the PCB copper by cladding a special film. And we will compare 4 different surface finish as below to make you understand more clearly:
Surface Finish Advantage Disadvantage
OSP Good welding Performance; Smooth Surface; RoHS; Cheap Short-time Storage
HASL(Hot Air Solder Leveling) Good welding Performance; Long-time storage; Cheap Unsmooth Surface; not RoHS compliance
Lead Free HASL Long-time storage; RoHS Unsmooth Surface; a little expensive
ENIG(Immersion Gold) Good welding Performance; Smooth Surface; RoHS Expensive
