Two Layer Rigid 94V0 OSP Double Sided PCB Circuit Board for Industrial Main Board
Two Layer Rigid 94V0 OSP Double Sided PCB Circuit Board for Industrial Main Board
Two Layer Rigid 94V0 OSP Double Sided PCB Circuit Board for Industrial Main Board
Two Layer Rigid 94V0 OSP Double Sided PCB Circuit Board for Industrial Main Board
Specifications
Brand Name :
LEFANG
Model Number :
RM0002L061
Certification :
ISO9001, ISO14001, ISO/TS16949, SGS, UL, RoHs,OHSAS18000
Place of Origin :
Shenzhen,China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal, MoneyGram
Supply Ability :
290, 000 sqm Per Month
Delivery Time :
2-10 work days
Packaging Details :
Inner: Vacuum Packing; Dry Packing out Packing
Raw material :
Fr - 4
Layer count :
2 Layer
Board thickness :
1.6 mm
Copper thickness :
1 Oz / 35 µm
Surface treatment :
OSP
Solder mask :
Green
Board size :
210*132 mm
Min. Aperture :
0.3 mm
Min. Line Trace Width/Space :
0.15 / 0.15 mm
Description

Two Layer Rigid 94V0 OSP Double Sided PCB Circuit Board for Industrial Main Board

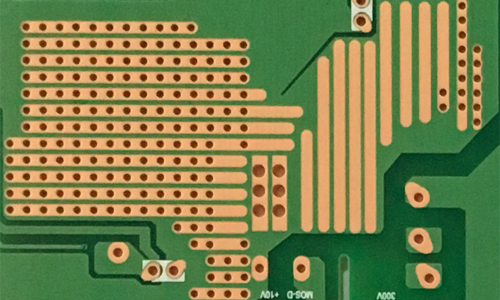

The specification of 2 layers double sided PCB circuit board is 210*132 mm, whcih is used for main board of industrial control machine. The Copper thickness of the double sided PCB is 1 Oz / 35 µm, with 0.3 mm minimum aperture and 0.15 mm minimum trace width.

Two Layer Rigid 94V0 OSP Double Sided PCB Circuit Board for Industrial Main Board

What We Can Do for You?
Two Layer Rigid 94V0 OSP Double Sided PCB Circuit Board for Industrial Main Board
With over 18 years experience, we offer OEM & ODM PCB Layout, PCB Design, PCB manufacturing and
PCB Assembly in single-sided PCB Board, double-sided PCB and Multilayer Printed Circuit Board service to
our customers, with total production capacity of 290,000 sqm/month.

How to get quick quotation?

Two Layer Rigid 94V0 OSP Double Sided PCB Circuit Board for Industrial Main Board

Step 1 Please send us Gerber file with these format: .CAD / .Gerber / .PCB / .DXP / .P-CAD, etc
Step 2 Also please provide us the below details for quick quotation:

Board material: Fr - 4 / CEM - 1 / CEM - 3 / 22F / Fr - 1 / others
Material brand: SY / KB / Rogers (optional)
Material Specification:High Tg / copper based / aluminum based or others (optional)
Board thickness: 0.1 - 6.0 mm
Copper thickness: 0.05 Oz - 8 Oz ( 17 um - 288 um )
Surface Treatment: OSP / ENIG / HASL / Lead Free HASL / Immersion Tin / Immersion Sin
Color of solder mask and silk print: Green / red / blue / black / white / yellow ,etc
Board size and quantity

If you don't have Gerber file, please provide us the imfomation as step 2 or post your PCB Board to us for clone.

SAMPLE:

Board Basic Info - SAMPLE

Board material

Fr - 4

Material brand

KB

Material Specification

Tg 170

Board thickness

1.6 mm

Copper thickness

1 Oz

Surface Treatment

ENIG

Solder mask / sSilk print

Green / White

Board size

100 mm * 100 mm

Quantity

10k

Lead Time
Two Layer Rigid 94V0 OSP Double Sided PCB Circuit Board for Industrial Main Board
Layer count Sample lead time/workday Batch lead time/workday
1-2L 2 6
4L 5 8
6L 5 9
8L 6 10
10L 8 10
12L 8 12
14L 10 15
16L 10 18
18-40L (Up to difficulty) at least 18 at least 24
P.S. For HDI, Blind/Buried Hole PCB: Regular Lead Time + 3 workdays

How many advanced automated equipments do we have?
Two Layer Rigid 94V0 OSP Double Sided PCB Circuit Board for Industrial Main Board

-- We have spent massively on purchasing below advanced automated production equipments.

Equipment Name Plant in Shenzhen Plant in Dongguan
CCD exposure machine 8 12
AOI test machine 6 8
Mechanical drilling rig 26 53
Automatic edge finishing machine 2 2
Pressing machine 2 2
VCP 0 2
Electroplating line 1 2
CNC routing machine 12 12
Automatic tester 10 16

Now send us your inquiry, and you will be replied within 8 hours!

Little knowledge - Consideration about PCB fabrication
When placed an order of PCBs (printed circuit boards), you should spend time to considerate the basic factors including PCB board substrate material, layer count, board size, board thickness, copper thickness, surface finish, solder mask, silkscreen, blind vias, buried vias, through-hole plating, SMT and so on. When all the factors are checked and confirmed with the engineers, we highly recommended sample tested before the real fabrication of your PCB boards. If all things go well, fabrication could be started right away. However, it may need to do some modification if customer is not satisfied with the sample.
