Hot Sale 1.0mm FR4 LED PCB Board for LED Light with OSP Surface Finish

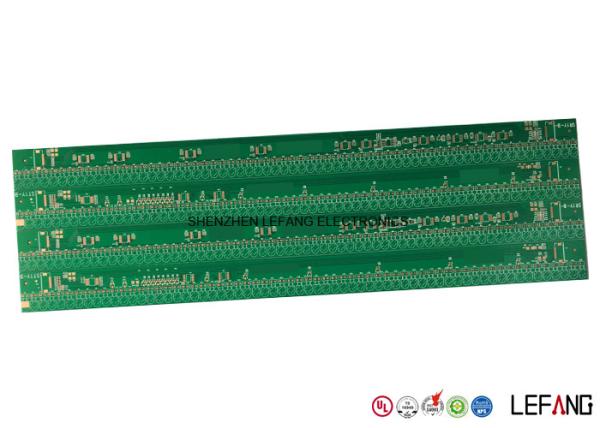

For the LED PCB board, the specification is 384*16 mm. It is a double-sided PCB Board, with 1.0 mm board thickness. Also, the surface treatment of this LED PCB Board is OSP, and solderd with green ink. This PCB is used in LED tube light with UL and RoHS compliant.
How to get quick quotation?
Step 1 Please send us Gerber file with these format: .CAD / .Gerber / .PCB / .DXP / .P-CAD, etc | ||||||||||||||||||||
Step 2 Also please provide us the below details for quick quotation: | ||||||||||||||||||||
Board material: Fr - 4 / CEM - 1 / CEM - 3 / 22F / Fr - 1 / others |
||||||||||||||||||||
Material brand: SY / KB / Rogers (optional) | ||||||||||||||||||||
Material Specification:High Tg / copper based / aluminum based or others (optional) | ||||||||||||||||||||
Board thickness: 0.1 - 6.0 mm | ||||||||||||||||||||
Copper thickness: 0.05 Oz - 8 Oz ( 17 um - 288 um ) | ||||||||||||||||||||
Surface Treatment: OSP / ENIG / HASL / Lead Free HASL / Immersion Tin / Immersion Sin | ||||||||||||||||||||
Color of solder mask and silk print: Green / red / blue / black / white / yellow ,etc | ||||||||||||||||||||
Board size and quantity | ||||||||||||||||||||
If you don't have Gerber file, please provide us the imfomation as step 2 or post your PCB Board to us for clone.
|
||||||||||||||||||||
SAMPLE:
|
||||||||||||||||||||
|
Layer count | Sample lead time/workday | Batch lead time/workday |
1-2L | 2 | 6 |
4L | 5 | 8 |
6L | 5 | 9 |
8L | 6 | 10 |
10L | 8 | 10 |
12L | 8 | 12 |
14L | 10 | 15 |
16L | 10 | 18 |
18-40L (Up to difficulty) | at least 18 | at least 24 |
P.S. For HDI, Blind/Buried Hole PCB: Regular Lead Time + 3 workdays |
What kinds of quality Raw Materials will be used?
Board Brand | ITEQ, SY, Isola. Rogers, Arlon, Nelco, Taconic, Hitachi, KB,etc |
Potion | Rohm & Haas, Atotech, Umicore |
Printing Ink | Taiyo, Rongda |
Dry Film | Asahi, Dupont, Etertec |
Now send us your inquiry, and you will be replied within 8 hours!
Little knowledge - How to reduce PCB cost
1. Improve the utilization ratio of the PCB substrate material. It is better to over 85 percents;
2. To make a bigger hole size of PCBs, which is no less than 0.3mm if possible and reduce the total amount of drilling holes;
3. The minimum trace width and space of PCBs is better no less than 4 mil, or the scrap rate will be increased 3 to 5 percents;
4. Reduce the board thickness of the printed circuit boards;
5. Enhance the universality of the main products.
