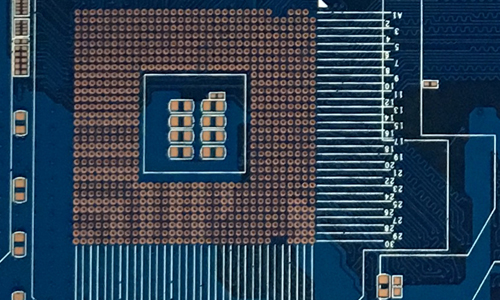

Medical ECG Device Multilayer PCB Circuit Board with Blue Solder Mask

For the 4 layers PCB Circuit Board, it was made with FR - 4 board material, with only 1.2 mm board thickness. Also, the board size of this PCB Circuit Board is 235 * 170 mm, with blue solder mask and OSP surface treatment.

Medical ECG Device PCB Circuit Board Multilayer With Blue Solder Mask

What We Can Do for You?
Medical ECG Device PCB Circuit Board Multilayer With Blue Solder Mask
With over 18 years experience, we offer OEM & ODM PCB Layout, PCB Design, PCB manufacturing and
PCB Assembly in single-sided PCB Board, double-sided PCB and Multilayer Printed Circuit Board service to
our customers, with total production capacity of 290,000 sqm/month.

How to get quick quotation?

Medical ECG Device PCB Circuit Board Multilayer With Blue Solder Mask

Step 1 Please send us Gerber file with these format: .CAD / .Gerber / .PCB / .DXP / .P-CAD, etc
Step 2 Also please provide us the below details for quick quotation:

Board material: Fr - 4 / CEM - 1 / CEM - 3 / 22F / Fr - 1 / others
Material brand: SY / KB / Rogers (optional)
Material Specification:High Tg / copper based / aluminum based or others (optional)
Board thickness: 0.1 - 6.0 mm
Copper thickness: 0.05 Oz - 8 Oz ( 17 um - 288 um )
Surface Treatment: OSP / ENIG / HASL / Lead Free HASL / Immersion Tin / Immersion Sin
Color of solder mask and silk print: Green / red / blue / black / white / yellow ,etc
Board size and quantity

If you don't have Gerber file, please provide us the imfomation as step 2 or post your PCB Board to us for clone.

SAMPLE:

Board Basic Info - SAMPLE

Board material

Fr - 4

Material brand

KB

Material Specification

Tg 170

Board thickness

1.6 mm

Copper thickness

1 Oz

Surface Treatment

ENIG

Solder mask / sSilk print

Green / White

Board size

100 mm * 100 mm

Quantity

10k

Lead Time
Medical ECG Device PCB Circuit Board Multilayer With Blue Solder Mask
Layer count Sample lead time/workday Batch lead time/workday
1-2L 2 6
4L 5 8
6L 5 9
8L 6 10
10L 8 10
12L 8 12
14L 10 15
16L 10 18
18-40L (Up to difficulty) at least 18 at least 24
P.S. For HDI, Blind/Buried Hole PCB: Regular Lead Time + 3 workdays

How many advanced automated equipments do we have?
Medical ECG Device PCB Circuit Board Multilayer With Blue Solder Mask

-- We have spent massively on purchasing below advanced automated production equipments.

Equipment Name Plant in Shenzhen Plant in Dongguan
CCD exposure machine 8 12
AOI test machine 6 8
Mechanical drilling rig 26 53
Automatic edge finishing machine 2 2
Pressing machine 2 2
VCP 0 2
Electroplating line 1 2
CNC routing machine 12 12
Automatic tester 10 16

Now send us your inquiry, and you will be replied within 8 hours!

Little knowledge - High Tg PCB

The glass transition temperature (Tg) is an important normative dimension for the base material that determines the temperature at which the resin matrix converts from a glassy, brittle condition into a soft, elastic one.

Normally high Tg refers to high heat resistance in PCB raw material. The standard Tg for copper clad laminate is between 130 – 140℃. High Tg is generally greater than 170℃, and middle Tg is generally greater than 150℃. Basically the printed circuit board with Tg≥170℃, we call high Tg PCB.

The higher of TG value, the better of pcb high temperature resistance.
