High TG230 Two Layer Power Bank PCB Board , Rohs Printed Circuit Boards
High TG230 Two Layer Power Bank PCB Board , Rohs Printed Circuit Boards
High TG230 Two Layer Power Bank PCB Board , Rohs Printed Circuit Boards
High TG230 Two Layer Power Bank PCB Board , Rohs Printed Circuit Boards
Specifications
Brand Name :
LEFANG
Model Number :
RM0002L093
Certification :
ISO9001, ISO14001, ISO/TS16949, SGS, UL, RoHs,OHSAS18000
Place of Origin :
Shenzhen,China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal, MoneyGram
Supply Ability :
290, 000 sqm Per Month
Delivery Time :
2-10 work days
Packaging Details :
Inner: Vacuum Packing; Dry Packing out Packing
Raw material :
Fr - 4
Layer count :
2 Layer
Board thickness :
1.6 mm
Copper thickness :
1 Oz / 35 µm
Surface treatment :
OSP
Solder mask :
Green
Board size2104 * 105 mm4.56 * 58.83 mm :
106 * 75 mm
Min. Aperture :
0.3 mm
Line Trace Width/Space :
0.1 / 0.1 mm
Description

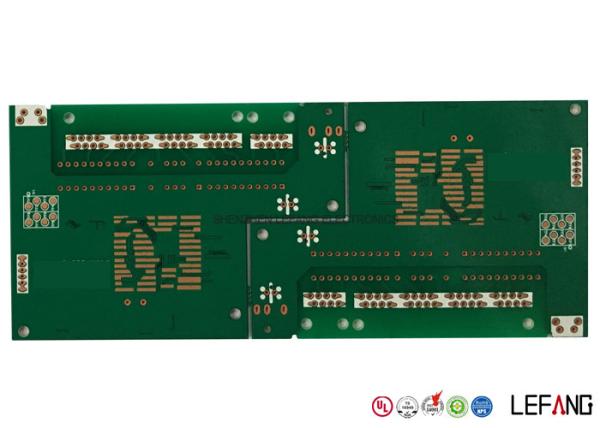

RoHS Printed Circuit Board for Power Bank Board High TG230 Double Sided Board

For the high TG230 double sided PCB Board, the board thickness is 1.6 mm and the copper thickness is 1 OZ / 35 µm. Also, the surface treatment of this double sided PCB Board is OSP. Its minimum aperture is 0.3 mm, and the line width and space is 0.1 mm.

High TG230 Two Layer Power Bank PCB Board , Rohs Printed Circuit Boards

How to get quick quotation?

High TG230 Two Layer Power Bank PCB Board , Rohs Printed Circuit Boards

Step 1 Please send us Gerber file with these format: .CAD / .Gerber / .PCB / .DXP / .P-CAD, etc
Step 2 Also please provide us the below details for quick quotation:

Board material: Fr - 4 / CEM - 1 / CEM - 3 / 22F / Fr - 1 / others
Material brand: SY / KB / Rogers (optional)
Material Specification:High Tg / copper based / aluminum based or others (optional)
Board thickness: 0.1 - 6.0 mm
Copper thickness: 0.05 Oz - 8 Oz ( 17 um - 288 um )
Surface Treatment: OSP / ENIG / HASL / Lead Free HASL / Immersion Tin / Immersion Sin
Color of solder mask and silk print: Green / red / blue / black / white / yellow ,etc
Board size and quantity

If you don't have Gerber file, please provide us the imfomation as step 2 or post your PCB Board to us for clone.

SAMPLE:

Board Basic Info - SAMPLE

Board material

Fr - 4

Material brand

KB

Material Specification

Tg 170

Board thickness

1.6 mm

Copper thickness

1 Oz

Surface Treatment

ENIG

Solder mask / sSilk print

Green / White

Board size

100 mm * 100 mm

Quantity

10k

Technical Data
High TG230 Two Layer Power Bank PCB Board , Rohs Printed Circuit Boards
Item Details
Max layer count 20 L
Max board thickness 6.0 mm
Max aspect ratio 10 : 1
Max copper thickness 6 OZ
Max dimension 600 * 700mm
Min thickness of 4 layers PCB 0.4 mm
Min hole / pad 0.15 / 0.35mm
Hole location accuracy + / - 0.05mm
PTH hole tolerance + / - 0.05mm
Min line width and line space 0.065 / 0.065mm
Surface treatment

HASL / HASL lead free, OSP

Immersion gold/silver/tin, gold plating (hard gold and soft gold),

silver plating, tin plating, platinum plating, carbon ink,

ENEPIG

(electroless nickel - electroless palladium - immersion gold)

Lead Time

High TG230 Two Layer Power Bank PCB Board , Rohs Printed Circuit Boards
Layer count Sample lead time/workday Batch lead time/workday
1-2L 2 6
4L 5 8
6L 5 9
8L 6 10
10L 8 10
12L 8 12
14L 10 15
16L 10 18
18-40L (Up to difficulty) at least 18 at least 24
P.S. For HDI, Blind/Buried Hole PCB: Regular Lead Time + 3 workdays


What kinds of quality Raw Materials will be used?
High TG230 Two Layer Power Bank PCB Board , Rohs Printed Circuit Boards

Board Brand ITEQ, SY, Isola. Rogers, Arlon, Nelco, Taconic, Hitachi, KB,etc
Potion Rohm & Haas, Atotech, Umicore
Printing Ink Taiyo, Rongda
Dry Film Asahi, Dupont, Etertec

Now send us your inquiry, and you will be replied within 8 hours!

Little knowledge - Single Sided PCB
Single sided PCB contains only one layer of conductive material, where components are focused on one side, and the other side of the wire is concentrated.
Single sided PCB are the best choice for low density designs. They are easily designed and quickly manufactured to serve as the most cost effective platform in the industry.
For surface finishes, single sided boards are available for Organic surface protectant (OSP), Immersion Silver, Tin, and Gold plating along with both leaded or lead-free Hot Air Solder Level (HASL), with operating temperatures range from 130℃ to 230℃.
