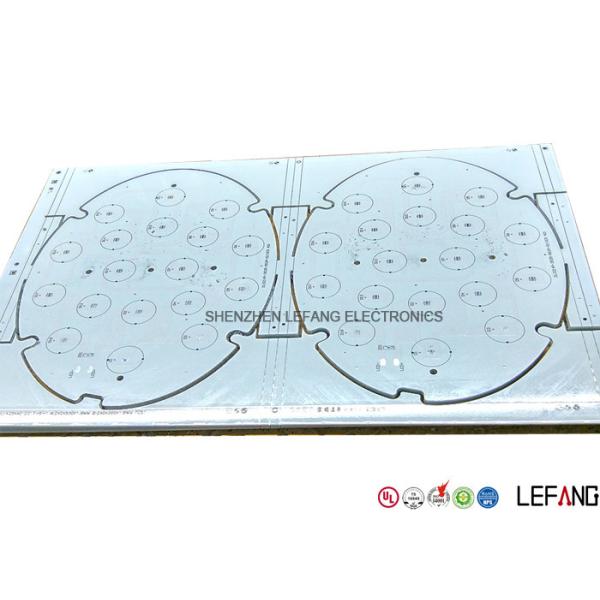

Single Sided Aluminum Substrate LED PCB Board for Tunnel Lighting

The 1 layer single sided LED PCB Board is applied for Tunnel Lighting, with 1.6 mm board thickness. The specification of the LED PCB Board is 219 * 170 mm, with white solder mask and lead free HASL surface treatment. The minimum aperture is 0.2 mm and the line width and space are 0.1 mm.

Why choose LEFANG?
1.6 MM Single Sided PCB Board Aluminum Substrate PCB For LED Tunnel Lighting

Established in 1999, Lefang owns 3 modern Printed Circuit Board factories in Guangdong, China.

We provide One-stop solution for PCB & PCBA manufacturing to our customers home and abroad.

High quality PCB products, competitive price, on time delivery, after-sale service are always offered.

To make the continued progress, we try our best to in every section, including selecting quality raw materials

strictly, imported advanced automated equipments, employing 70 experienced engineers, acquiring global

certification of ISO9001:2008, ISO14001:2004, ISO/TS16949:2009, UL, QC080000, OHSA18000, etc.

Our customers' industry come from Communication, Industrial Control, Automotive, Medical Equipment,

Security Apparatus, Consumer Electronics and LED Lighting.

We sincerely pursue win-win business with customer all the time!

How to get quick quotation?

1.6 MM Single Sided PCB Board Aluminum Substrate PCB For LED Tunnel Lighting

Step 1 Please send us Gerber file with these format: .CAD / .Gerber / .PCB / .DXP / .P-CAD, etc
Step 2 Also please provide us the below details for quick quotation:

Board material: Fr - 4 / CEM - 1 / CEM - 3 / 22F / Fr - 1 / others
Material brand: SY / KB / Rogers (optional)
Material Specification:High Tg / copper based / aluminum based or others (optional)
Board thickness: 0.1 - 6.0 mm
Copper thickness: 0.05 Oz - 8 Oz ( 17 um - 288 um )
Surface Treatment: OSP / ENIG / HASL / Lead Free HASL / Immersion Tin / Immersion Sin
Color of solder mask and silk print: Green / red / blue / black / white / yellow ,etc
Board size and quantity

If you don't have Gerber file, please provide us the imfomation as step 2 or post your PCB Board to us for clone.

SAMPLE:

Board Basic Info - SAMPLE

Board material

Fr - 4

Material brand

KB

Material Specification

Tg 170

Board thickness

1.6 mm

Copper thickness

1 Oz

Surface Treatment

ENIG

Solder mask / sSilk print

Green / White

Board size

100 mm * 100 mm

Quantity

10k

Lead Time
1.6 MM Single Sided PCB Board Aluminum Substrate PCB For LED Tunnel Lighting
Layer count Sample lead time/workday Batch lead time/workday
1-2L 2 6
4L 5 8
6L 5 9
8L 6 10
10L 8 10
12L 8 12
14L 10 15
16L 10 18
18-40L (Up to difficulty) at least 18 at least 24
P.S. For HDI, Blind/Buried Hole PCB: Regular Lead Time + 3 workdays

How many advanced automated equipments do we have?
1.6 MM Single Sided PCB Board Aluminum Substrate PCB For LED Tunnel Lighting

-- We have spent massively on purchasing below advanced automated production equipments.

Equipment Name Plant in Shenzhen Plant in Dongguan
CCD exposure machine 8 12
AOI test machine 6 8
Mechanical drilling rig 26 53
Automatic edge finishing machine 2 2
Pressing machine 2 2
VCP 0 2
Electroplating line 1 2
CNC routing machine 12 12
Automatic tester 10 16

Now send us your inquiry, and you will be replied within 8 hours!

Little knowledge - Metal Core PCB
Metal core PCB's are thermal management circuit boards which use a base metal material as the heat dissipater part of the PCB. They are used in high heat generating application like LED lighting in the area of high power LED lighting, Automotive Interior, Exterior Lighting, Parking Garage Lighting, LED spot light etc.
The metal core can be aluminum (aluminum core PCB) and copper (copper core PCB). The most common used aluminum core PCB is the thermal conductivity at 1W/MK and 2W/MK.
