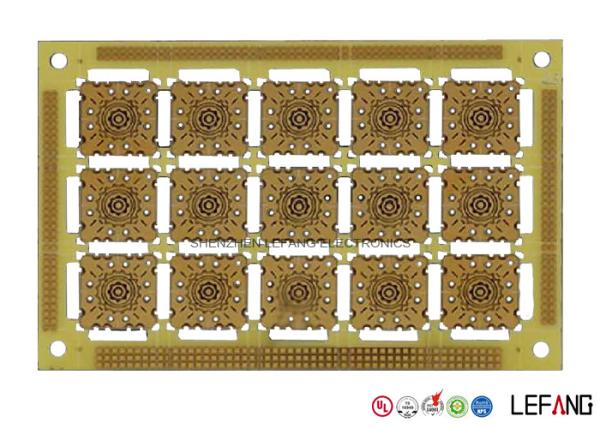

4 Layers HASL Lead Free Heavy Copper PCB Board Assembly 83 Mm * 50 Mm
4 Layers HASL Lead Free Heavy Copper PCB Board Assembly 83 Mm * 50 Mm
4 Layers HASL Lead Free Heavy Copper PCB Board Assembly 83 Mm * 50 Mm
4 Layers HASL Lead Free Heavy Copper PCB Board Assembly 83 Mm * 50 Mm
4 Layers HASL Lead Free Heavy Copper PCB Board Assembly 83 Mm * 50 Mm
4 Layers HASL Lead Free Heavy Copper PCB Board Assembly 83 Mm * 50 Mm
Specifications
Brand Name :
LEFANG
Model Number :
OT6004L354
Certification :
ISO9001, ISO14001, ISO/TS16949, SGS, UL, RoHs,OHSAS18000
Place of Origin :
Shenzhen,China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal, MoneyGram
Supply Ability :
290, 000 sqm Per Month
Delivery Time :
2-10 work days
Packaging Details :
Inner: Vacuum Packing; Dry Packing out Packing
Raw material :
Fr - 4
Layer count :
4 Layer
Board thickness :
2.0 mm
Copper thickness :
70 um / 2 oz
Surface treatment :
HASL Lead Free
Solder mask :
Green
Board size2104 * 105 mm4.56 * 58.83 mm :
83 mm * 50 mm
Min. Aperture :
0.4 mm
Line Trace Width/Space :
0.3 / 0.3 mm
Description

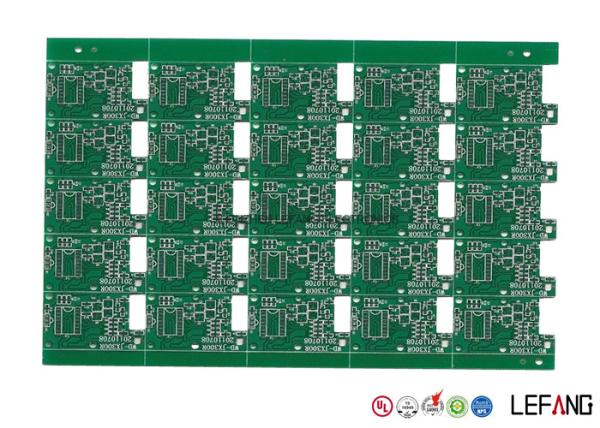

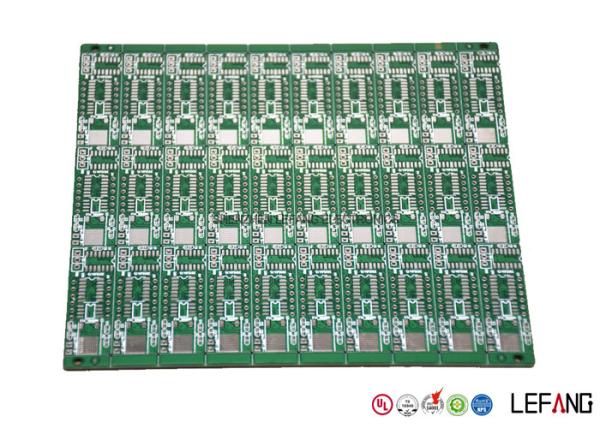

4 Layers HASL Lead Free Heavy Copper PCB Board Printed Circuit Board

The 2 OZ copper thickness 4 layers heavy copper PCB Board is suitable for high current devices. While the surface treatment of the high frequency PCB is HASL Lead Free with green solder mask. Also, the board size of this PCB Circuit Board is 85 * 50 mm, and the minimum aperture is 0.4 mm.

4 Layers HASL Lead Free Heavy Copper PCB Board Assembly 83 Mm * 50 Mm

How to get quick quotation?

4 Layers HASL Lead Free Heavy Copper PCB Board Assembly 83 Mm * 50 Mm

Step 1 Please send us Gerber file with these format: .CAD / .Gerber / .PCB / .DXP / .P-CAD, etc
Step 2 Also please provide us the below details for quick quotation:

Board material: Fr - 4 / CEM - 1 / CEM - 3 / 22F / Fr - 1 / others
Material brand: SY / KB / Rogers (optional)
Material Specification:High Tg / copper based / aluminum based or others (optional)
Board thickness: 0.1 - 6.0 mm
Copper thickness: 0.05 Oz - 8 Oz ( 17 um - 288 um )
Surface Treatment: OSP / ENIG / HASL / Lead Free HASL / Immersion Tin / Immersion Sin
Color of solder mask and silk print: Green / red / blue / black / white / yellow ,etc
Board size and quantity

If you don't have Gerber file, please provide us the imfomation as step 2 or post your PCB Board to us for clone.

SAMPLE:

Board Basic Info - SAMPLE

Board material

Fr - 4

Material brand

KB

Material Specification

Tg 170

Board thickness

1.6 mm

Copper thickness

1 Oz

Surface Treatment

ENIG

Solder mask / sSilk print

Green / White

Board size

100 mm * 100 mm

Quantity

10k

Technical Data
4 Layers HASL Lead Free Heavy Copper PCB Board Assembly 83 Mm * 50 Mm
Item Details
Max layer count 20 L
Max board thickness 6.0 mm
Max aspect ratio 10 : 1
Max copper thickness 6 OZ
Max dimension 600 * 700mm
Min thickness of 4 layers PCB 0.4 mm
Min hole / pad 0.15 / 0.35mm
Hole location accuracy + / - 0.05mm
PTH hole tolerance + / - 0.05mm
Min line width and line space 0.065 / 0.065mm
Surface treatment

HASL / HASL lead free, OSP

Immersion gold/silver/tin, gold plating (hard gold and soft gold),

silver plating, tin plating, platinum plating, carbon ink,

ENEPIG

(electroless nickel - electroless palladium - immersion gold)

Lead Time

4 Layers HASL Lead Free Heavy Copper PCB Board Assembly 83 Mm * 50 Mm
Layer count Sample lead time/workday Batch lead time/workday
1-2L 2 6
4L 5 8
6L 5 9
8L 6 10
10L 8 10
12L 8 12
14L 10 15
16L 10 18
18-40L (Up to difficulty) at least 18 at least 24
P.S. For HDI, Blind/Buried Hole PCB: Regular Lead Time + 3 workdays

How many advanced automated equipments do we have?
4 Layers HASL Lead Free Heavy Copper PCB Board Assembly 83 Mm * 50 Mm

-- We have spent massively on purchasing below advanced automated production equipments.

Equipment Name Plant in Shenzhen Plant in Dongguan
CCD exposure machine 8 12
AOI test machine 6 8
Mechanical drilling rig 26 53
Automatic edge finishing machine 2 2
Pressing machine 2 2
VCP 0 2
Electroplating line 1 2
CNC routing machine 12 12
Automatic tester 10 16

Now send us your inquiry, and you will be replied within 8 hours!

Little knowledge - PCB Circuit Board
A printed circuit board (PCB) mechanically supports and electrically connects electronic components using conductive tracks, pads and other features etched from copper sheets laminated onto a non-conductive substrate.
Components (e.g. capacitors, resistors or active devices) are generally soldered on the PCB. Advanced PCBs may contain components embedded in the substrate.
There are three kinds of PCB, including single sided pcb (one copper layer), double sided pcb (two copper layers)and multi-layer pcb (outer and inner layers).
Conductors on different layers are connected with vias. Multilayer PCBs allow for much higher component density.
