12 OZ Double Sided Thick Copper PCB Circuit Board with Lead Free HASL

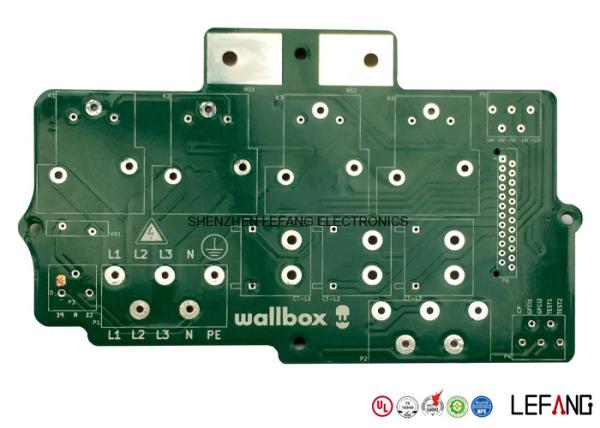

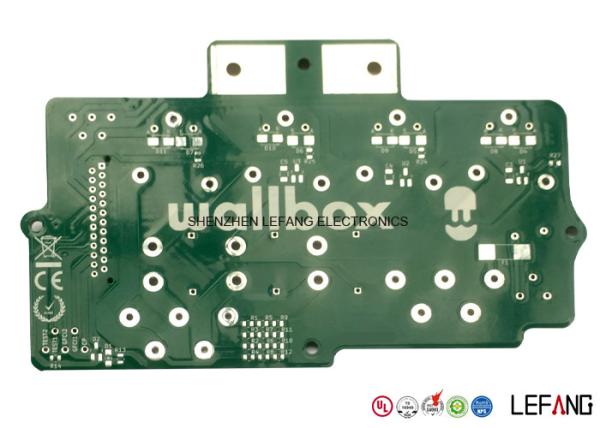

The Thick Copper PCB Board is made with FR - 4 board raw material. And the copper thickness is 12 OZ / 420 µm while the board thickness 1.6 mm. And the specificaton of the heavy copper printed circuit board is 145*89 mm.

12 OZ Double Sided Heavy Copper PCB Circuit Board With Lead Free HASL 0.8 Mm Aperture

How to get quick quotation?

Step 1 Please send us Gerber file with these format: .CAD / .Gerber / .PCB / .DXP / .P-CAD, etc
Step 2 Also please provide us the below details for quick quotation:

Board material: Fr - 4 / CEM - 1 / CEM - 3 / 22F / Fr - 1 / others
Material brand: SY / KB / Rogers (optional)
Material Specification:High Tg / copper based / aluminum based or others (optional)
Board thickness: 0.1 - 6.0 mm
Copper thickness: 0.05 Oz - 8 Oz ( 17 um - 288 um )
Surface Treatment: OSP / ENIG / HASL / Lead Free HASL / Immersion Tin / Immersion Sin
Color of solder mask and silk print: Green / red / blue / black / white / yellow ,etc
Board size and quantity

If you don't have Gerber file, please provide us the imfomation as step 2 or post your PCB Board to us for clone.

SAMPLE:

Board Basic Info - SAMPLE

Board material

Fr - 4

Material brand

KB

Material Specification

Tg 170

Board thickness

1.6 mm

Copper thickness

1 Oz

Surface Treatment

ENIG

Solder mask / sSilk print

Green / White

Board size

100 mm * 100 mm

Quantity

10k

Technical Data
Item Details
Max layer count 20 L
Max board thickness 6.0 mm
Max aspect ratio 10 : 1
Max copper thickness 6 OZ
Max dimension 600 * 700mm
Min thickness of 4 layers PCB 0.4 mm
Min hole / pad 0.15 / 0.35mm
Hole location accuracy + / - 0.05mm
PTH hole tolerance + / - 0.05mm
Min line width and line space 0.065 / 0.065mm
Surface treatment

HASL / HASL lead free, OSP

Immersion gold/silver/tin, gold plating (hard gold and soft gold),

silver plating, tin plating, platinum plating, carbon ink,

ENEPIG

(electroless nickel - electroless palladium - immersion gold)

Lead Time
Layer count Sample lead time/workday Batch lead time/workday
1-2L 2 6
4L 5 8
6L 5 9
8L 6 10
10L 8 10
12L 8 12
14L 10 15
16L 10 18
18-40L (Up to difficulty) at least 18 at least 24
P.S. For HDI, Blind/Buried Hole PCB: Regular Lead Time + 3 workdays

What kinds of test function will be offered?

AOI (Automated Optical Inspection) Impedance control
Automatic short-circuit testing Metallographic microscope
RoHS detector Fly probe/ fixture mold
Dielectric tester Visual inspection


Now send us your inquiry, and you will be replied within 8 hours!

Little knowledge - Thick copper PCB

Electronics are used in demanding environments and operate at higher currents in these days.

Thick copper PCB can help conduct heat away from components and withstand high current, satisfying the market of power conversion module boards which is used in automobile electronics and electric equipment.

Heavy copper PCBs means copper conductors 5 oz/ft2 – 19 oz/ft2 in inner and/or outer layers; sometimes defined as more than 4 oz per square foot (ft2).

These boards can be manufactured in a smaller footprint as they can contain multiple weights of copper on the same circuit layers.
