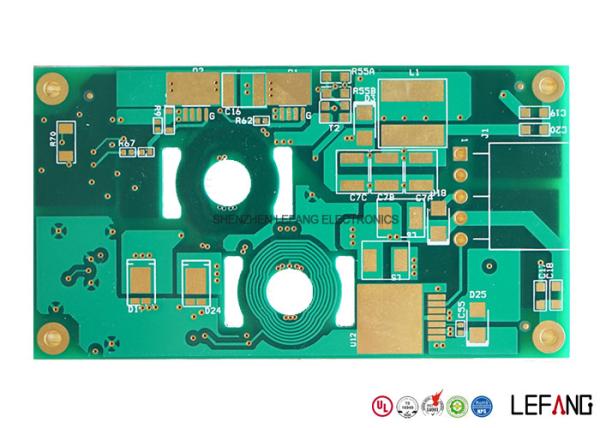

Multilayer 2 OZ Thick Copper Printed Circuit Board PCB with Fr4 High Tg170

For high TG170 double sided thick copper PCB Board manufacturing, LEFANG is certificated as ISO 14001. The layer count of this green solder thick copper PCB Board is 4, with 2 OZ inner and outer copper and 1.2 mm board thickness. And the minimum Line width and space of the PCB are 0.3 mm.

Multilayer 2oz Copper Pcb , 4 Layer Pcb Manufacturing With Fr4 High Tg170

How to get quick quotation?

Multilayer 2oz Copper Pcb , 4 Layer Pcb Manufacturing With Fr4 High Tg170

Step 1 Please send us Gerber file with these format: .CAD / .Gerber / .PCB / .DXP / .P-CAD, etc
Step 2 Also please provide us the below details for quick quotation:

Board material: Fr - 4 / CEM - 1 / CEM - 3 / 22F / Fr - 1 / others
Material brand: SY / KB / Rogers (optional)
Material Specification:High Tg / copper based / aluminum based or others (optional)
Board thickness: 0.1 - 6.0 mm
Copper thickness: 0.05 Oz - 8 Oz ( 17 um - 288 um )
Surface Treatment: OSP / ENIG / HASL / Lead Free HASL / Immersion Tin / Immersion Sin
Color of solder mask and silk print: Green / red / blue / black / white / yellow ,etc
Board size and quantity

If you don't have Gerber file, please provide us the imfomation as step 2 or post your PCB Board to us for clone.

SAMPLE:

Board Basic Info - SAMPLE

Board material

Fr - 4

Material brand

KB

Material Specification

Tg 170

Board thickness

1.6 mm

Copper thickness

1 Oz

Surface Treatment

ENIG

Solder mask / sSilk print

Green / White

Board size

100 mm * 100 mm

Quantity

10k

Technical Data
Multilayer 2oz Copper Pcb , 4 Layer Pcb Manufacturing With Fr4 High Tg170
Item Details
Max layer count 20 L
Max board thickness 6.0 mm
Max aspect ratio 10 : 1
Max copper thickness 6 OZ
Max dimension 600 * 700mm
Min thickness of 4 layers PCB 0.4 mm
Min hole / pad 0.15 / 0.35mm
Hole location accuracy + / - 0.05mm
PTH hole tolerance + / - 0.05mm
Min line width and line space 0.065 / 0.065mm
Surface treatment

HASL / HASL lead free, OSP

Immersion gold/silver/tin, gold plating (hard gold and soft gold),

silver plating, tin plating, platinum plating, carbon ink,

ENEPIG

(electroless nickel - electroless palladium - immersion gold)

Lead Time

Multilayer 2oz Copper Pcb , 4 Layer Pcb Manufacturing With Fr4 High Tg170
Layer count Sample lead time/workday Batch lead time/workday
1-2L 2 6
4L 5 8
6L 5 9
8L 6 10
10L 8 10
12L 8 12
14L 10 15
16L 10 18
18-40L (Up to difficulty) at least 18 at least 24
P.S. For HDI, Blind/Buried Hole PCB: Regular Lead Time + 3 workdays


What kinds of quality Raw Materials will be used?
Multilayer 2oz Copper Pcb , 4 Layer Pcb Manufacturing With Fr4 High Tg170

Board Brand ITEQ, SY, Isola. Rogers, Arlon, Nelco, Taconic, Hitachi, KB,etc
Potion Rohm & Haas, Atotech, Umicore
Printing Ink Taiyo, Rongda
Dry Film Asahi, Dupont, Etertec


Now send us your inquiry, and you will be replied within 8 hours!

Little knowledge - Medical Devices

Electronics contributes significantly to today's health-care industry like in diagnostic, monitoring and treatment devices. Because of the health implications associated with them, medical PCBs are held to higher standards than most other PCB types.

PCBs within the medical industry are highly specialized to satisfy the restriction of medical devices. In many medical applications, requirements like size and appearance are existed for an implant or emergency room monitor. For this reason, medical PCBs tend to be specialty high-density interconnect PCBs (HDI PCBs) or made with flexible base materials, allowing PCB to flex during use.
