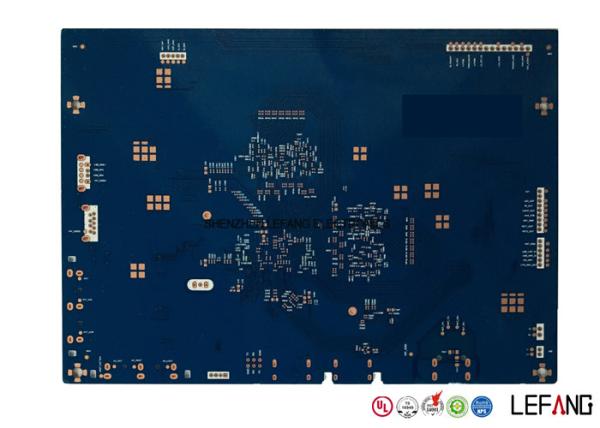

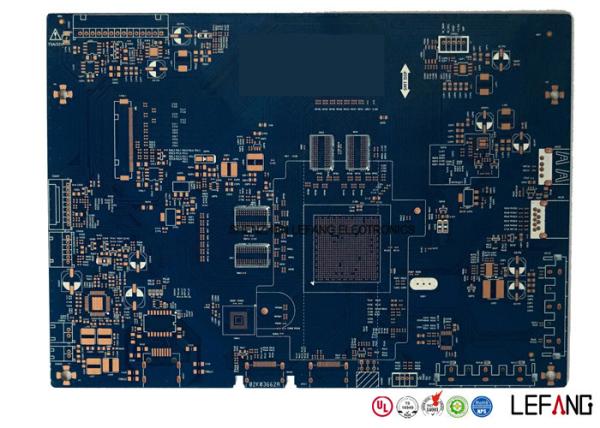

2 Layers Medical Equipment PCB Printed Circuit Board With Blue Solder Mask
2 Layers Medical Equipment PCB Printed Circuit Board With Blue Solder Mask
2 Layers Medical Equipment PCB Printed Circuit Board With Blue Solder Mask
2 Layers Medical Equipment PCB Printed Circuit Board With Blue Solder Mask
Specifications
Brand Name :
LEFANG
Model Number :
RM0002L084
Certification :
ISO9001, ISO14001, ISO/TS16949, SGS, UL, RoHs,OHSAS18000
Place of Origin :
Shenzhen,China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal, MoneyGram
Supply Ability :
290, 000 sqm Per Month
Packaging Details :
Inner: Vacuum Packing; Dry Packing out Packing
Delivery Time :
2-10 work days
Raw material :
Fr - 4
Layer count :
2 Layer
Board thickness :
1.2 mm
Copper thickness :
1 Oz / 35 µm
Surface treatment :
OSP
Solder mask :
Blue
Board size24.56 * 58.83 mm :
210 * 122 mm
Min. Aperture :
0.4 mm
Line Trace Width/Space :
0.13 / 0.15 mm
Description
2 Layers Medical Equipment PCB Printed Circuit Board with Blue Solder Mask
For the Medical Equipment PCB Board manufacturing, LEFANG is certificated as ISO 14001. The layer count of this blue solder Medical Equipment PCB is 2 layers, with 1 OZ / 35 µm inner and outer copper and 1.6 mm board thickness. And the minimum Line width and space of the PCB are 0.13 mm and 0.15 mm.
2 Layers Medical Equipment PCB Printed Circuit Board With Blue Solder Mask
Why choose LEFANG?
2 Layers Medical Equipment PCB Printed Circuit Board With Blue Solder Mask

Established in 1999, Lefang owns 3 modern Printed Circuit Board factories in Guangdong, China.

We provide One-stop solution for PCB & PCBA manufacturing to our customers home and abroad.

High quality PCB products, competitive price, on time delivery, after-sale service are always offered.

To make the continued progress, we try our best to in every section, including selecting quality raw materials

strictly, imported advanced automated equipments, employing 70 experienced engineers, acquiring global

certification of ISO9001:2008, ISO14001:2004, ISO/TS16949:2009, UL, QC080000, OHSA18000, etc.

Our customers' industry come from Communication, Industrial Control, Automotive, Medical Equipment,

Security Apparatus, Consumer Electronics and LED Lighting.

We sincerely pursue win-win business with customer all the time!

How to get quick quotation?

2 Layers Medical Equipment PCB Printed Circuit Board With Blue Solder Mask

Step 1 Please send us Gerber file with these format: .CAD / .Gerber / .PCB / .DXP / .P-CAD, etc
Step 2 Also please provide us the below details for quick quotation:

Board material: Fr - 4 / CEM - 1 / CEM - 3 / 22F / Fr - 1 / others
Material brand: SY / KB / Rogers (optional)
Material Specification:High Tg / copper based / aluminum based or others (optional)
Board thickness: 0.1 - 6.0 mm
Copper thickness: 0.05 Oz - 8 Oz ( 17 um - 288 um )
Surface Treatment: OSP / ENIG / HASL / Lead Free HASL / Immersion Tin / Immersion Sin
Color of solder mask and silk print: Green / red / blue / black / white / yellow ,etc
Board size and quantity

If you don't have Gerber file, please provide us the imfomation as step 2 or post your PCB Board to us for clone.

SAMPLE:

Board Basic Info - SAMPLE

Board material

Fr - 4

Material brand

KB

Material Specification

Tg 170

Board thickness

1.6 mm

Copper thickness

1 Oz

Surface Treatment

ENIG

Solder mask / sSilk print

Green / White

Board size

100 mm * 100 mm

Quantity

10k

Lead Time
2 Layers Medical Equipment PCB Printed Circuit Board With Blue Solder Mask
Layer count Sample lead time/workday Batch lead time/workday
1-2L 2 6
4L 5 8
6L 5 9
8L 6 10
10L 8 10
12L 8 12
14L 10 15
16L 10 18
18-40L (Up to difficulty) at least 18 at least 24
P.S. For HDI, Blind/Buried Hole PCB: Regular Lead Time + 3 workdays

Why you can trust our products?
2 Layers Medical Equipment PCB Printed Circuit Board With Blue Solder Mask

-- What LEFANG's vision is to Make Our Customer's Products Better, so we try our best to fulfill the quality control

system andenvironmental management system. Our approved certification are as below:

ISO9001:2008 ISO14001:2004
ISO/TS16949:2009 OHSAS18000
UL RoHS
QC080000 CQC

Now send us your inquiry, and you will be replied within 8 hours!

Little knowledge - Thick copper PCB
Electronics are used in demanding environments and operate at higher currents inthese days.
Thick copper PCB can help conduct heat away from components and withstand high current, satisfying the market of power conversion module boards which is used in automobile electronics and electric equipment.
Heavy copper PCBs means copper conductors 5 oz/ft2 – 19 oz/ft2 in inner and/or outer layers; sometimes defined as more than 4 oz per square foot (ft2). These boards can be manufactured in a smaller footprint as they can contain

multiple weights of copper on the same circuit layers.
