High Frequency Heavy Copper PCB For Electric Equipment 122 * 67 Mm Board Size
High Frequency Heavy Copper PCB For Electric Equipment 122 * 67 Mm Board Size
High Frequency Heavy Copper PCB For Electric Equipment 122 * 67 Mm Board Size
High Frequency Heavy Copper PCB For Electric Equipment 122 * 67 Mm Board Size
High Frequency Heavy Copper PCB For Electric Equipment 122 * 67 Mm Board Size
High Frequency Heavy Copper PCB For Electric Equipment 122 * 67 Mm Board Size
Specifications
Brand Name :
LEFANG
Model Number :
OT6002L363
Certification :
ISO9001, ISO14001, ISO/TS16949, SGS, UL, RoHs,OHSAS18000
Place of Origin :
Shenzhen,China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal, MoneyGram
Supply Ability :
290, 000 sqm Per Month
Delivery Time :
2-10 work days
Packaging Details :
Inner: Vacuum Packing; Dry Packing out Packing
Raw material :
Fr - 4
Layer count :
2 Layer
Board thickness :
1.2 mm
Copper thickness :
70 um / 2 oz
Surface treatment :
ENIG
Solder mask :
blue
Board size2104 * 105 mm4.56 * 58.83 mm :
122 * 67 mm
Min. Aperture :
0.2 mm
Line Trace Width/Space :
0.3 / 0.3 mm
Description

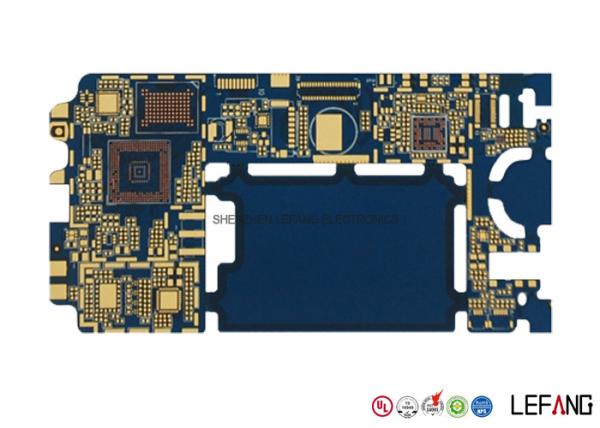

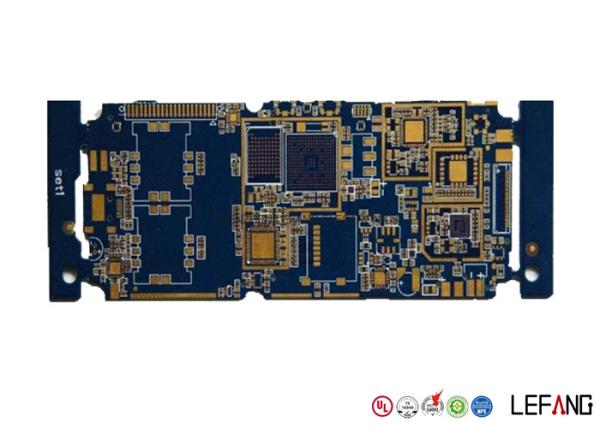

2 OZ ENIG Immersion Gold Thick Copper PCB with Blue Solder Mask

For the thick copper PCB Board, it is usually help to increase the mechanical strength. The layer count of this high frequency PCB is 2 and the copper thickness is 2 OZ / 70 µm. Also, the surface treatment of this thick copper PCB Board is Immersion Gold. Its minimum aperture is 0.2 mm, and the line width and space are 0.3 mm.

High Frequency Heavy Copper PCB For Electric Equipment 122 * 67 Mm Board Size

How to get quick quotation?

High Frequency Heavy Copper PCB For Electric Equipment 122 * 67 Mm Board Size

Step 1 Please send us Gerber file with these format: .CAD / .Gerber / .PCB / .DXP / .P-CAD, etc
Step 2 Also please provide us the below details for quick quotation:

Board material: Fr - 4 / CEM - 1 / CEM - 3 / 22F / Fr - 1 / others
Material brand: SY / KB / Rogers (optional)
Material Specification:High Tg / copper based / aluminum based or others (optional)
Board thickness: 0.1 - 6.0 mm
Copper thickness: 0.05 Oz - 8 Oz ( 17 um - 288 um )
Surface Treatment: OSP / ENIG / HASL / Lead Free HASL / Immersion Tin / Immersion Sin
Color of solder mask and silk print: Green / red / blue / black / white / yellow ,etc
Board size and quantity

If you don't have Gerber file, please provide us the imfomation as step 2 or post your PCB Board to us for clone.

SAMPLE:

Board Basic Info - SAMPLE

Board material

Fr - 4

Material brand

KB

Material Specification

Tg 170

Board thickness

1.6 mm

Copper thickness

1 Oz

Surface Treatment

ENIG

Solder mask / sSilk print

Green / White

Board size

100 mm * 100 mm

Quantity

10k

Technical Data
High Frequency Heavy Copper PCB For Electric Equipment 122 * 67 Mm Board Size
Item Details
Max layer count 20 L
Max board thickness 6.0 mm
Max aspect ratio 10 : 1
Max copper thickness 6 OZ
Max dimension 600 * 700mm
Min thickness of 4 layers PCB 0.4 mm
Min hole / pad 0.15 / 0.35mm
Hole location accuracy + / - 0.05mm
PTH hole tolerance + / - 0.05mm
Min line width and line space 0.065 / 0.065mm
Surface treatment

HASL / HASL lead free, OSP

Immersion gold/silver/tin, gold plating (hard gold and soft gold),

silver plating, tin plating, platinum plating, carbon ink,

ENEPIG

(electroless nickel - electroless palladium - immersion gold)

Lead Time

High Frequency Heavy Copper PCB For Electric Equipment 122 * 67 Mm Board Size
Layer count Sample lead time/workday Batch lead time/workday
1-2L 2 6
4L 5 8
6L 5 9
8L 6 10
10L 8 10
12L 8 12
14L 10 15
16L 10 18
18-40L (Up to difficulty) at least 18 at least 24
P.S. For HDI, Blind/Buried Hole PCB: Regular Lead Time + 3 workdays

How many advanced automated equipments do we have?
High Frequency Heavy Copper PCB For Electric Equipment 122 * 67 Mm Board Size

-- We have spent massively on purchasing below advanced automated production equipments.

Equipment Name Plant in Shenzhen Plant in Dongguan
CCD exposure machine 8 12
AOI test machine 6 8
Mechanical drilling rig 26 53
Automatic edge finishing machine 2 2
Pressing machine 2 2
VCP 0 2
Electroplating line 1 2
CNC routing machine 12 12
Automatic tester 10 16

Now send us your inquiry, and you will be replied within 8 hours!

Little knowledge - Thick copper PCB
Electronics are used in demanding environments and operate at higher currents in these days.
Thick copper PCB can help conduct heat away from components and withstand high current, satisfying the market of power conversion module boards which is used in automobile electronics and electric equipment.
Heavy copper PCBs means copper conductors 5 oz/ft2 – 19 oz/ft2 in inner and/or outer layers; sometimes defined as more than 4 oz per square foot (ft2).
These boards can be manufactured in a smaller footprint as they can contain multiple weights of copper on the same circuit layers.
