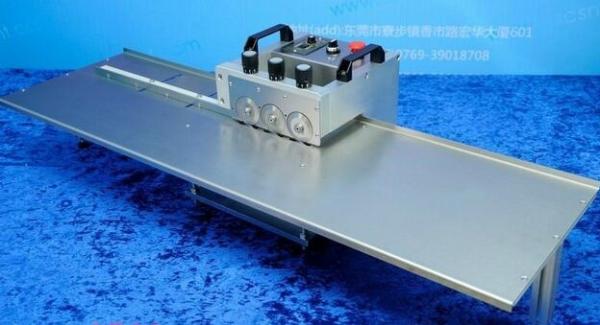

T8 Tube PCB Separator With Six Round High Speed Steel Blades

Aluminium PCB Depaneling Machine YES6

Machine Dimension: 325 x 380x 333mm

Platform: 1200 x 506 x 333 (1.2M) weight:6KG

2400 x 506 x 333 (2.4M) weight:15KG

Max length of PCB: unlimited

Material of Blade: SK61D high speed steel

Cutting Speed: 300~500mm/s

Cutting Thickness: 0.2-5.0m

Operating temperature: 10-35 ℃

Storage temperature: -20-50 ℃

Voltage: 230V/50HZ,40W (110V/60HZ,40W)

YES-6 PCB Depaneling Machine Specification:

1. Because of the multiple cutting, cutting process is very smooth and greatly improves the capability of position of V-CUT groove .Even if with shallow slot V-CUT groove the board won't jump out of blade, avoiding adverse.

2. Because cutting force of the blade is small. The wheel disc with SKH high precision steel material which is imported from the Japan. durability of the blade greatly improved , and the lifetime can be one year or more when cutting the aluminum board.

3. All the cutting blades are calibrated by Excitation double-frequency laser interference measurement instrument. Ensure that the latter knife can accurately continue to cut in the slots which already cut by the former knife. The jitter of knife point is less than 0.02mm. Ensure perfect cutting quality.

4. Can be mounted stainless steel platform with laser calibration positioning function

5. Can be adjusted the above and below round knife precisely,Circular knife can turn mill reoccupy many times, the shape of cutter can be customized.

9. X, Y axis can free adjustment and make the cutting accuracy to the highest.
.

Multicut PCB v-cut separating machine details

1.Coutrolled by microcomputer program, it can cut board accurately with no error.

2.This machine applies unique multi sections cutting, the cutting is to be finished

by 6 pieces round blade.

3.Precise adjustment of up and down blade.Adjustable blade moving speed : 200mm/s. As per customers' need, certain speed can be set

4.Operation platform can be adjustable higher and lower between 0 and 50mm

5. Working process is pretty smooth, due multi sections cutting.

6.There won`t be any deviation when cutting along the v-cut slot, even the v-cut

slot is shallow.

7.Pre-set the cutting start and end point to well control the cutting length
