Depaneling Length: infinite

Depaneling thickness: 0.5 ~ 3mm

Circuit board material: aluminum plate, copper substrate, FR1 ~ 4, fiberglass panels

Sent to board speed: 0 ~ 300mm / sec

Host Size: 800mm (length) * 370mm (width) * 240mm (height)

In / out trays installed after the overall size of the table size: 2600mm (length) * 370mm (width) x 240 (H)

Blade Material: Japanese imports of high-speed steel SKH

Power source: 220V / 50HZ, 60W

PCB Cutter Working Process:

1. This machine uses a unique multi-and even more cutting method, cutting boards completed by the eight blades, two up and down as a group, to form a cutting unit. They are A, B, C, D, four group. The entire cutting process is divided into four stages, A set of blades to cut 30% of the circuit board, and then re-cut blade B from A tank had run over the blade, cutting the amount of 30% complete again, then again cut blade C from B blade the tank had run over, completed 30% of the amount cut again, and finally by the group D final cutting blade and the wiper 10%, due to the cutting of a small amount each time, so the stress generated during the cutting of a more traditional cut way to reduce more than 80%, good segmentation edge of the board is smooth, the board is very smooth, not twisted is not Alice. Is currently available only to go after cutting aluminum plate to ensure that no deformation of the machine.

2. Due to the small blade cutting force, and the use of high-speed steel imported from Sweden, blade durability greatly enhanced when Depaneling aluminum plate blade life up to one year.

3. all of the cutting blade using laser interferometer laser measuring instrument calibration, to ensure that the first knife after knife can continue through the slot accurate cutting. Tip runout is not greater than 0.02mm. Ensures perfect cutting quality.

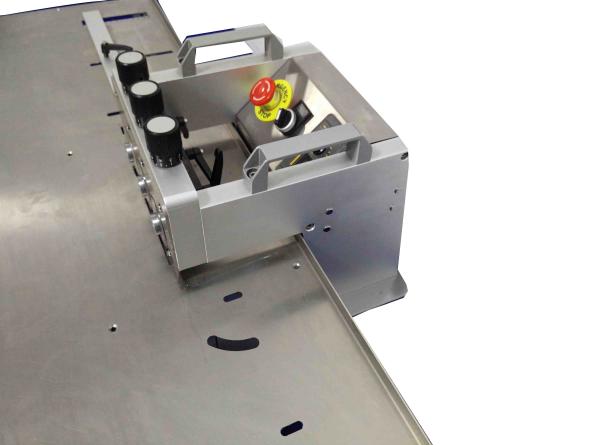

How our pcb depanelizer works.

Mainly separate the led strip with three groups blades to reduce the cutting stress to zero,which greatly improve cutting efficiency.

PCB Assembly Machine service

1. Effective customer service

All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and with departments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers

2. One year warranty for the machines except accessories

Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients.
We offer parts for replacement under warranty free of charge, clients only need to bear freight charge
