E27 B22 Lamp Cap Crimping Punching Machine For LED Lighting Assembly

lamp base /cap crimping machine
6pin 8pin 10pin 12pin
Specifications:
Easy for operation,no need training .
Improve production capacity (0.3-1s per pieces)

Automatic and semi-auto optional

1. Use high quality cylinders ,one cylinder control one needle ,the depth of punching
needle can be adjustable .

2. Adopt High quality ,high speed ,harden needles ,hardness>=60%.

3. With function of Automatic counting the number of punching lamps .

4. 0.3-1 seconds punching a lamp cap .

5. 3-4mm distance electromagnetic induction then punching .

6.With automatic and semi-atomatic switch ,you can choose the way you want .

7. Two conjoined air filter processor inside to dry the air .

8. Dimensions :L450*W400*H200 mm

9. Weight: about 35 kgs .

10.Can be available for 220V, 110V .

led bulb cap hole punching machine

1. This bulb cap hole punching machine , connect the bulb head with the aluminum part .

2, usually 12 needle

3. 1 second can finish a bulb cap

4, automatic and semi-automatic optional

Specifications:

1.Adopted high quality cylinders ,one cylinder control one needle ,the depth of punching needle can be adjustable( total 12 needles ) .

2.needle Adopt High quality ,high speed ,harden needles ,hardness>=60%.

3. Number record function :

With function of Automatic counting the number of punching lamps .

4. Working Speed: 0.3-1 second punching a lamp cap .

5. 3-4mm distance electromagnetic induction then punching (automatic operation mode)

6.optional control method :

With automatic and semi-automatic switch

7. Two conjoined air filter processor inside to dry the air .

8.Dimensions :L400*W450*H200 mm

9.Net Weight: small one about 30 kgs ,big one about 90 KG

10.voltage : 220V /50 HZ

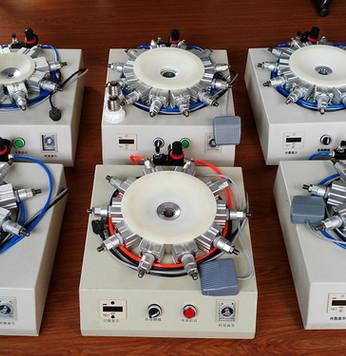

Detailed pictures

Shipping & Packagings

1.Packing: Plywood case neutral packing , or according to your requirement to design your packing
