Auto Baking Dry Storage Cabinet For Moisture Sensitive SMD Storages
Auto Baking Dry Storage Cabinet For Moisture Sensitive SMD Storages
Specifications
Brand Name :
YUSH
Model Number :
YS-1430B-6
Certification :
CE
Place of Origin :
Jiansu
MOQ :
1set
Payment Terms :
D/P, L/C, T/T
Supply Ability :
300 sets/ month
Delivery Time :
3 days
Packaging Details :
Wood crate
Type :
Living Room Furniture
Specific Use :
Living Room Cabinet
General Use :
Home Furniture
Color :
Black
Delivery Detail :
3days
Description

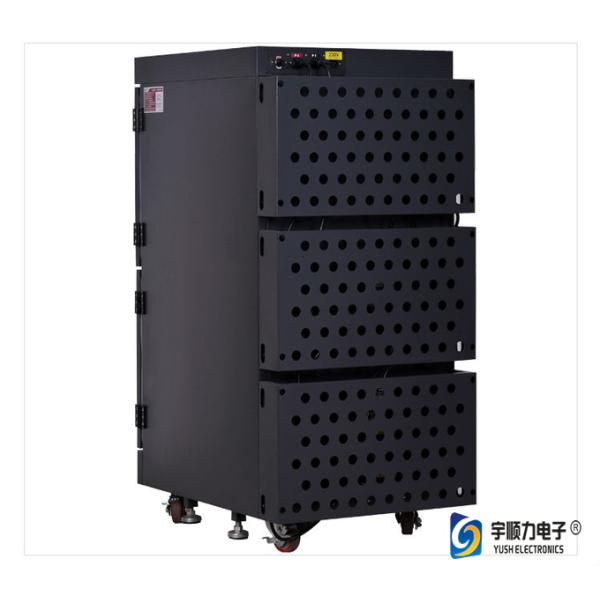

Auto Baking Dry Storage Cabinet For Moisture Sensitive SMD Storages

E40C is a bi-functional auto dry cabinet. Heaters and dehumidifiers work at the same time to increase the evaporation. Dehumidifying rate works 2 times faster than the regular dry cabinet. It bakes and stables the cabinet temperature at 40°C and 5%RH in constant. When the heating reach to 40°C, it switches its function to dehumidifying system and continues to work, keeping the humidity at ultra-low <5%RH, preventing moistures from re-entering the components It is especially designed to comply with J-STD-033 for all the moisture sensitive SMD storages.

Auto Baking Dry Storage Cabinet For Moisture Sensitive SMD Storages

major functions:

Wider application in resetting the floor life: For example: If MSD parts Level 4,5 and 5a are exposed to the air for less than 8 hours, they should be stored in a dry cabinet to reset their floor life. However, if their exposure time is longer than 8 hours, the SMD packages must store at 40°C baking machine to reset the floor life to zero.

Labor saving: SMD packages shipped in low temperature is suggested not to bake in a traditional temperature oven higher than 40°C, as it is very likely to cause deformation to the components. Parts storing in our T40C, operators do not need to remove the SMD package to thermally safer carriers. It is hassle free for move & removing to save labor cost; on top of that it eliminates the chance of damaging the carriers during removing.

Antistatic cabinet: CE approved with antistatic finishing paint on the cabinets together with antistatic wheels protects the box and shelves better from any possible static induction and it is hassle free for cabinet movement.

Auto Baking Dry Storage Cabinet For Moisture Sensitive SMD Storages

Function:

Temperature Humidity Range: 40±2°C; <5%RH (auto)
External Dimension: W×H×D(mm): 600×1308×840
Internal Dimension: W×H×D(mm): 544×974×576
Capacity: 305L
Shelves: 3 shelves (stainless)
Color: black
Voltage: 110V/230V (please advice your voltage when placing orders)
Display Precision Tolerance: ±1°C, ±3%RH
Wheels: 4 antistatic 3” wheels, 2 of them with brakes.
Grounding Wire: 1MΩ. (940mm long)
ESD Paint: 106~109Ω. (surface resistance)
Power Consumption: Ave. 200Wh; Max. 450W
