Auto Stencil Cleaner , Domestic Pneumatic Steel Washing Machine Single Humane
Auto Stencil Cleaner , Domestic Pneumatic Steel Washing Machine Single Humane
Specifications
Brand Name :
YUSH
Model Number :
YS-3110
Certification :
CE
Place of Origin :
china
MOQ :
1set
Payment Terms :
T/T, L/C
Supply Ability :
100month
Packaging Details :
wooden packaging- L15500 x W1100 x H2150(mm)
Air supply :
0.5~0.7Mpa
Air consumption :
200~1000L/min
Clean type :
360°rotate jet clean + air dry
Filter system :
20um/5um/1um(3 level)
Machine size :
L15500 x W1100 x H2150(mm)
Machine weight :
450KG
Description

Auto Stencil Cleaner , Domestic Pneumatic Steel Washing Machine Single Humane

product description:

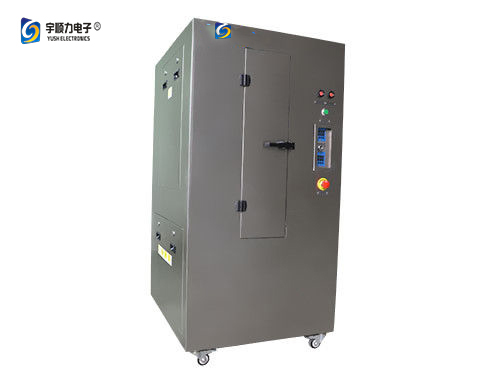

YS-3110 pneumatic stencil cleaner is designed for solder paste and red glue printing stencil cleaning of SMT process. Driven by compressed air, constructed by super parts of pneumatic industry and our good manufacturing process, SME guarantee you an efficient ,reliable cleaning machine and high quality cleaning result. By “One button” easy operation, the machine complete “clean + dry “process automatically. Special designed pipe and patent rotation pod system guarantee stable jet pressure on stencil.

Machine Feature:

1. SUS 304 structure, Acid and Alkali corrosion resistance, 10 years lifespan.

2. Totally Driven by compressed air , no electric power, no fire or explosion risk caused by electrical spark .

3. One button easy operation, clean and dry complete one time automatically

4. Special designed rotate rod and nozzle, ensure good cleaning quality and guarantee stable stencil tension

5. Equipped auto liquid fill in and drain function

6. Liquid recycle use to ensure low consumption

7. Inner-lock safety door, once open, machine stopped immediately to ensure operator safety

8. 3-level precise filtering system to make liquid clean by recycled use

9. Super well-known Pneumatic parts from all over the word ensure stable use of the machine

10. Modular design ensure easy maintenance

Auto Stencil Cleaner , Domestic Pneumatic Steel Washing Machine Single Humane

Machine SpecS:

Model Number YS-3110
Max stencil size L1200 x W1200 x H40(mm)
Liquid tank Max: 60L; Min28L
Clean time 2~6min
Dry time 3~8min
Air supply 0.5~0.7Mpa
Air consumption 200~1000L/min
Clean type 360°rotate jet clean + air dry
Filter system 20um/5um/1um(3 level)
Machine size L15500 x W1100 x H2150(mm)
Machine weight 450KG
