Intelligent Nibbler Professional Single PCBA / PCB Nibbler With Pneumatic Control
Intelligent Nibbler Professional Single PCBA / PCB Nibbler With Pneumatic Control
Intelligent Nibbler Professional Single PCBA / PCB Nibbler With Pneumatic Control
Intelligent Nibbler Professional Single PCBA / PCB Nibbler With Pneumatic Control
Intelligent Nibbler Professional Single PCBA / PCB Nibbler With Pneumatic Control
Intelligent Nibbler Professional Single PCBA / PCB Nibbler With Pneumatic Control
Specifications
Place of Origin :
China
Brand Name :
YUSH
Certification :
CE,ROHS, FCC
Model Number :
YSV-LT
MOQ :
1set
Price :
negotiation
Packaging Details :
Plywooden case
Delivery Time :
5-10 days
Payment Terms :
Ex works . FOB
Supply Ability :
1000 set /week
PCB Nibbler Machine Size :
280x105x185mm
PCB Nibbler Machine Weight :
2 kg
Working dry air pressure :
0.50-0.70 Mpa
Action stroke times :
12 times / min
Description

Professional Single PCBA / PCB Nibbler With Pneumatic Control

Specifications

Printed Circuit Board Nibbler

1. All pneumatic control, easy to operate

2. Suitable for slitting various PCB connection points

Printed Circuit Board Nibbler Machine Specifications:

Action stroke times 12 times / min

Working dry air pressure 0.50-0.70 Mpa

Slide stroke 2 mm

PCB Nibbler Machine Weight 2 kg

PCB Nibbler Machine Size 280x105x185mm

Printed Circuit Board Nibbler Machine Features:

1, all pneumatic control, easy to operate

2, suitable for slitting various PCB connection points

3, hook blade work, hook blade shape can be customized

4, convenience for replacing hook blade

5, hook blade for "T" type or "L" type blade

6, small size, does not damage the part of the PCB and PCB substrate

Safe operation with PCB nibbler CWV-LT

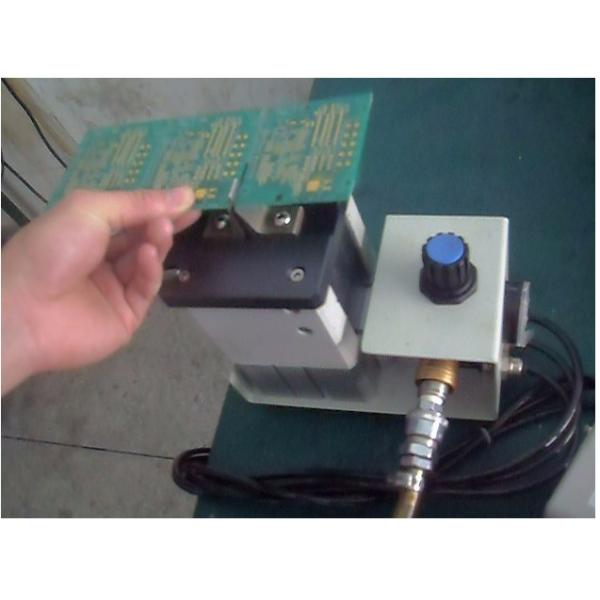

The PCB is slipped with its milled groove over the blade and is placed onto the matrix. The off-cut is pulled under the blade. When the foot switch is pressed, the off-cut is punched out and the waste material is collected inside the machine.

"T"-Blade

With the T-blade off-cuts can be punched out right and left of the blade without turning the PCB.

"L"-Blade

The L-blade will be used if there are small distances between the off-cuts Matrix
