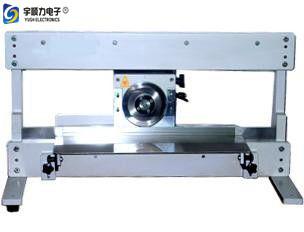

Manual PCB Separator Machine economical type with Calibration Blade Setting
Manual PCB Separator Machine economical type with Calibration Blade Setting
Specifications
Place of Origin :
JiangSu
Brand Name :
YUSH
Certification :
CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Model Number :
YSV-1M
MOQ :
1
Price :
1000
Packaging Details :
Plywooden case
Delivery Time :
3 days
Payment Terms :
T/T ,Paypal ,West Union ,L/C ,D/P .
Supply Ability :
300 sets/ month
Description

Manual PCB Separator Machine economical type with Calibration Blade Setting

Specifications

Precision pcb depaneling machine

1. PCB Protection

2. Calibration Blade Setting

3. All Speed Control By Human

4. More Accurating

Manual PCB Separator Machine economical type with Calibration Blade Setting

Specification:

Model Precision pcb depaneling machine YSV-1M
PCB Cutting Length (mm) 460/700/1000/1500
Cutting Speed (mm/s) manual
Cutting Thickness (mm) 0.6~3.5
Size (mm) 400*780*480
Weight (Kg) 55
Guarantee 1 Year
Delivery 1 Day
Ability 1000 Sets
Min. Order 1 Set

Detailed Product Description:


1. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board),LED.

2. Mold make of SKH-11 Steel, Blade is SKH-9(From Japan), rigorous Job. Dedicated

to high strength cutting, and excellent toughness, able to cut metal board .

Technical characteristics:

1. Structural precision, the load evenly, to eliminate internal stress

2. Safe, easy to operate

3. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)

Feature:

1. Round knife, manually cutting against lower linear knife, for reduced stress .

2. Separate pre-scored PCB assembly without stress on either PCB or component .

3. One touch programming of cut length with digital display .

4. Separating speed is adjusted by a rotary knob .

5. Handle Intermittent scoring or cut-outs .

6. Board with projected component can be cut precisely .

7. Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable .

8. Optional PCB conveyor belt to remove finished board .

9. Clearance between circular and linear blades are adjustable to fit different groove depth and

compensates for blade wear out .
