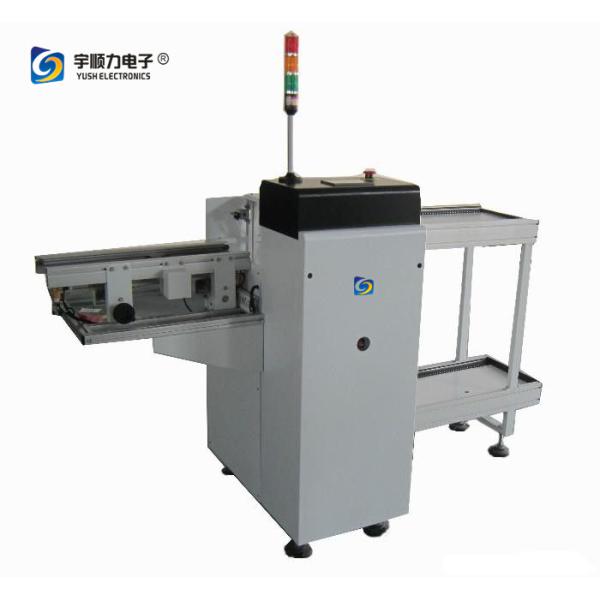

Sound - light alarm Electric PCB Loader Workstation Conveyor
Sound - light alarm Electric PCB Loader Workstation Conveyor
Specifications
Brand Name :
YUSH
Model Number :
YS-3525
Certification :
CE Mark
Place of Origin :
jiangsu
MOQ :
1set/sets
Price :
2800-3800USD
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
100set/SETS
Delivery Time :
3-7days
Packaging Details :
Standard packaging
Magazine dimension :
335×320×560mm
Weight :
160 kgs
PCB dimension :
0×50-330×250mm
Dimension :
1930×760×1250mm
PCB thickness :
Min 0.4mm
Air source flow :
max 10 L/min
Description

Microcomputer Control Electric PCB Loader Workstation Conveyor

Product Description

Details

1. According to the thickness of the PCB so set feeder lifting step distance.


2. Under so feeder built-in push board institutions, avoid buy separate push trigger.


3. Automatic counting functions, facilitate production statistics.


4. Signal communication interface, and other machines online travel.

5. Microcomputer control, stable and reliable.

6. LCD screen display, menu interface, the man-machine dialogue is convenient.

7. Many sound-light alarm function.

8. So can use standard feeder, strong commonality.

Sound - light alarm Electric PCB Loader Workstation Conveyor

Specifications Loader/Unloader
Loader Dimension(L*W*H) 1650x730x1250mm
Unloader Dimension(L*W*H) 2450x730x1250mm
Electric Supply Required 2phase, 220V 50/60Hz
Weight Approx. 230KG
Pitch Selection 10, 20, 30, 40, 50mm
Magazine Size 355x320x565mm
Power Consumption 240W
Max. Width Of PCB 300mm (Option: 410mm )
Converyor Height 900+/-20mm
Air Supply 4.5-6Kg/cm2
