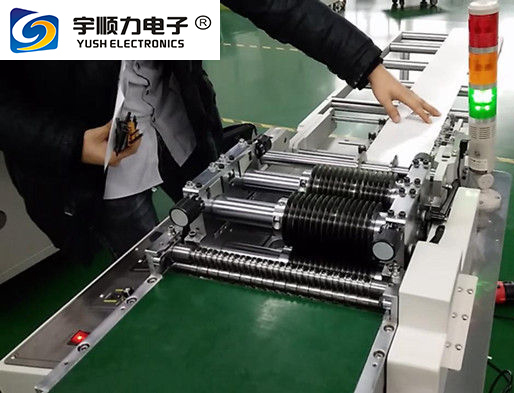

High Efficiency Laser Cut PCB Depaneling Machine With SKD11 Blade
High Efficiency Laser Cut PCB Depaneling Machine With SKD11 Blade
Specifications
Brand Name :
YUSH
Model Number :
YSVJ-650
Certification :
CE
Place of Origin :
JUANGSU
MOQ :
1 set
Price :
38000-40000 USD
Payment Terms :
D/P, Western Union, D/P, L/C, T/T
Delivery Time :
3 days
Packaging Details :
Plywooden case
PCB cutting thickness A :
0.4-3.2mm
V-groove cut PCB board thickness B :
Standard value A thickness of 1/3
Maximum :
0.8mm
V-groove sizes Minimum C :
0.25mm
Increase the apparent size of the cropped :
0.1-0.2mm
Storage temperature :
-20-50 ℃
Description

High Efficiency Laser Cut PCB Depaneling Machine With SKD11 Blade

Features:

1. cutting pcb board,laser cut pcb board,pcb board circuit de-panelling machine

2. The machine adopts computer screen control unit has a counter, can be preset process yield, up and down cutter cutting the gap with a display screen visual display;Multi-group knife

3. When PCB board sub-board cut, one can cut a plurality of plates;


4. The whole machine cutter wheel trim: 0-5mm;

5. distance between the knife and the knife can be adjusted for cutting a single PCB board width of 15-20mm;


6. Imported SKH51 high-speed steel blade, wear-resistant, long life;


7. Cut speed can be set by the board to facilitate adjustment knob;


8. scoreboard stroke limitation;


9. PC board split thickness: 0.2-5.0mm;


10. conveyor belt line drawings can be installed on a separate PCB board can be sent directly out easy job, you can direct docking with the water pull, reducing take place;


11. This machine acceptable to accommodate the LED panels, fiberboard, aluminum plate (400mm above the long plate) and special plates segmentation;


12. The machine uses simpler knife sub-board operation, high efficiency for the production batch.

High Efficiency Laser Cut PCB Depaneling Machine With SKD11 Blade


Third, the technical instructions:
Maximum scoreboard length: unlimited
Min thickness: 0.6-5.0mm
Sent to board speed: 300-500mm / sec
Blade Material: SKD11
Working temperature: 10-35 ℃
Storage temperature: -20-50 ℃
Power: 230V
Dimensions: 2160mm * 570mm * 1050mm
