Smt Glass Fibre Pcb LED Cutting Machine / Aluminium Board Separator Depaneling Assembly Machine

Product Introduction:

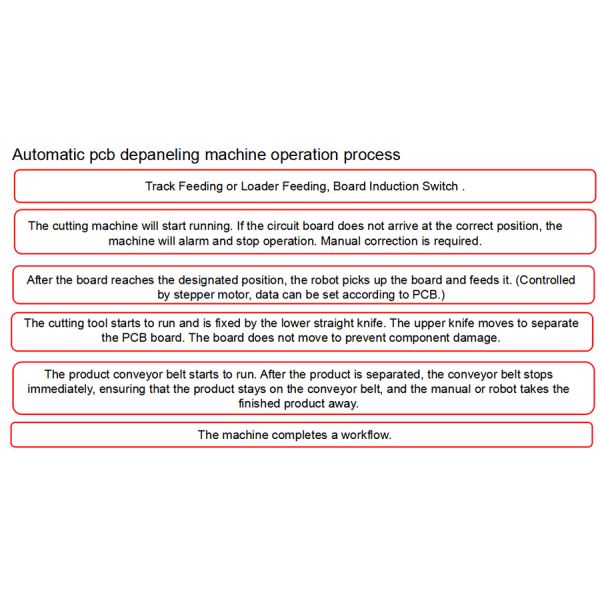

1. YSV-3A PCB automatic pcb depaneling machine, microcomputer-controlled automatic sub-board, high efficiency at the same time all kinds of advantages of the knife-type sub-board machine: stress small knife-type partition to avoid circuit board dark injury, tin Cracks and other issues, wide applicability, suitable for double-sided circuit boards with components.
2. It adopts PLC and touch screen man-machine interface control system, automatic fault shutdown display, intelligent parameter positioning system, can accurately realize PCB equidistant or not equal distance v-cut groove every step alignment, set a little moving function, inching The function can be manually jogged to confirm the v-cut accuracy of the knife, so as to ensure better segmentation of the best quality product.
3. This machine has a memory storage function (100 sets of data can be stored), this function is convenient to operate (as long as it is stored product data) directly download and use without having to set, quick change plate split, to achieve a machine a variety of plate-type segmentation operations .
4, the machine also has an operating technician interface and the use of engineering technicians interface, operating technicians use the interface to download the relative production of product data, but the data can not be changed, the engineering technician using the interface is the password with the password input after the engineering technician can Download changes to data, etc.

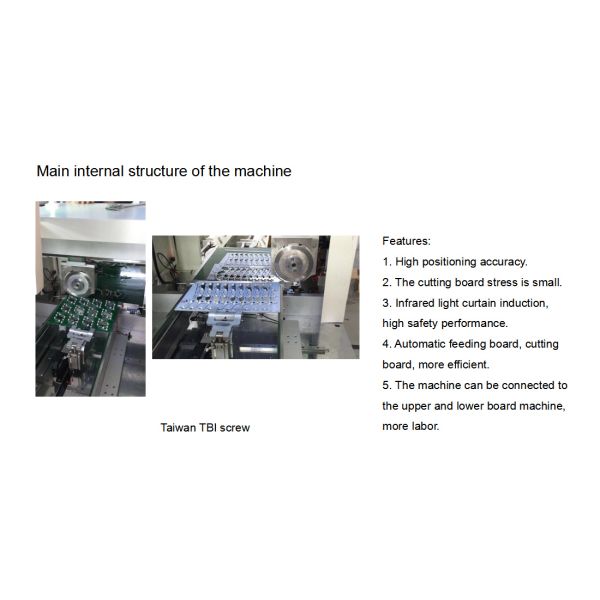

Features:
1. Microcomputer program control, precise positioning and good stability.
2. Separate pre-scored PCB assembly without stress on either PCB or component;
3. One touch programming of cut length with digital display;


4. Separating speed is adjusted by a rotary knob;
5. Handle Intermittent scoring or cut-outs;
6. Board with projected component can be cut precisely;

7. Large stainless steel platform on both side of cutting lade prevents board wobble and table height and angle are adjustable;
8. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out.

Technical Parameters:

Packaging & Delivery:

Our Service:

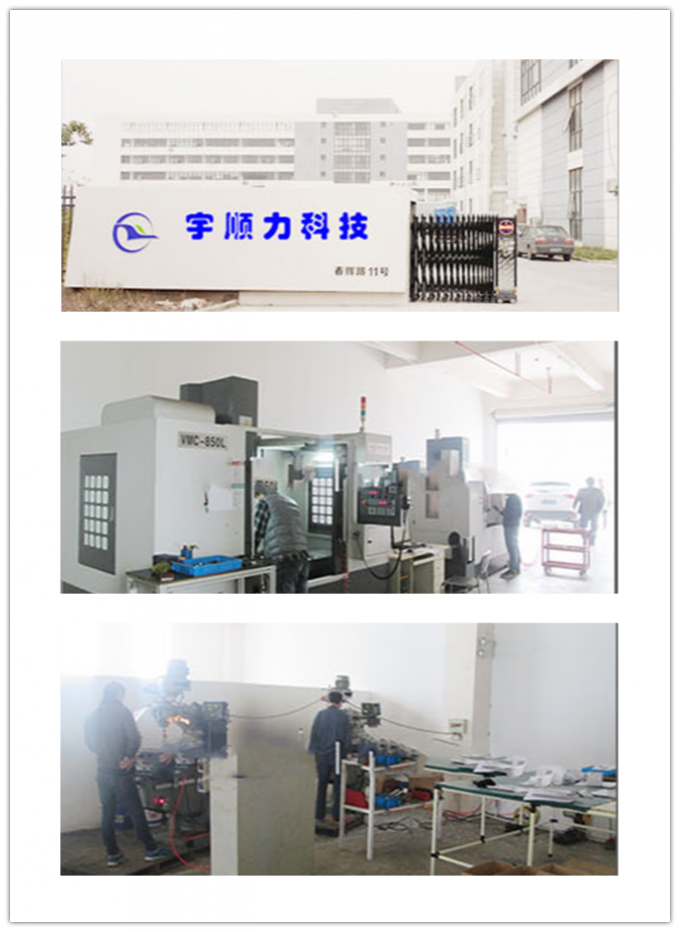

Our Factory and Quality Control:

Certificates:

Tag: pcb depanelizer,pcb separator machine, pcb depaneling equipment
