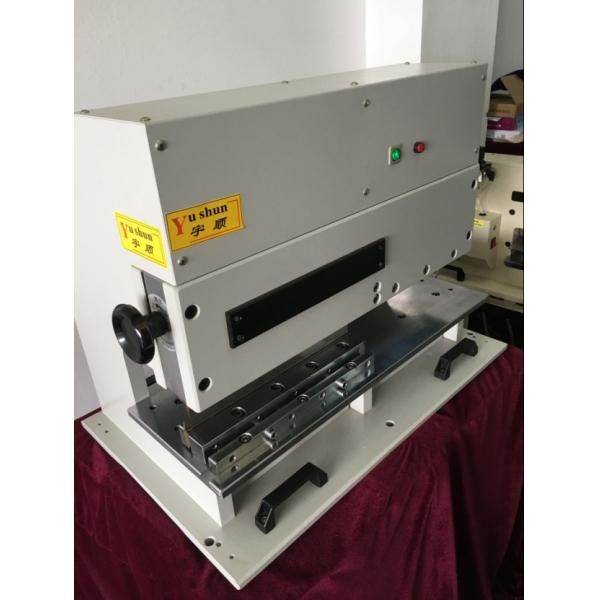

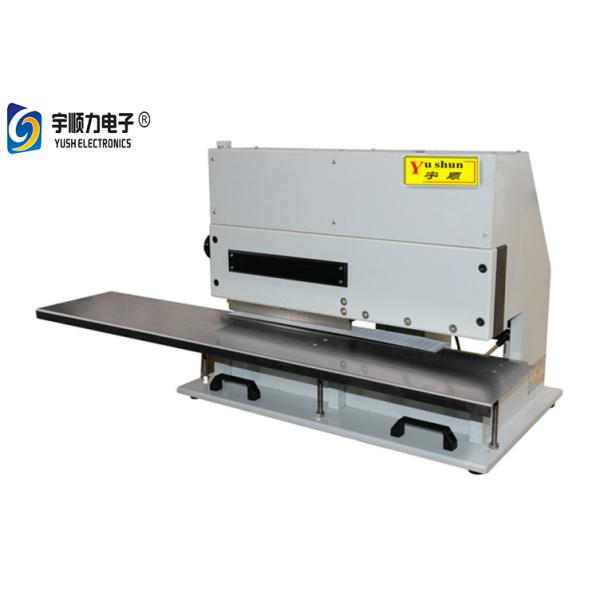

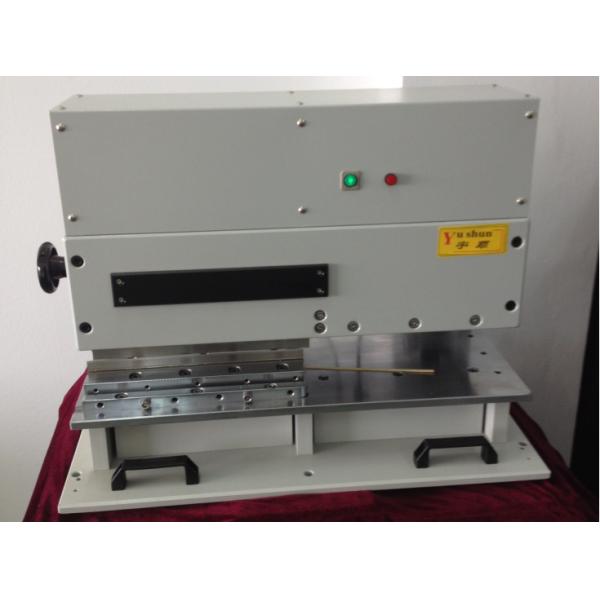

5.0mm Thickness SKH-9 HSS Blade LED Cutting Machine
5.0mm Thickness SKH-9 HSS Blade LED Cutting Machine
5.0mm Thickness SKH-9 HSS Blade LED Cutting Machine
5.0mm Thickness SKH-9 HSS Blade LED Cutting Machine
5.0mm Thickness SKH-9 HSS Blade LED Cutting Machine
5.0mm Thickness SKH-9 HSS Blade LED Cutting Machine
Specifications
Brand Name :
YUSH
Model Number :
YSVC-3
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
USD1000~2980
Payment Terms :
L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
300Sets/month
Delivery Time :
5-7days
Packaging Details :
Plywooden case
Dimension :
780x500x620mm（L*W*H
Blades Length :
330mm
Cutting speed :
300~500mm/s
Voltage :
220 V/50HZ or 110V
Description

5.0mm thick Metal Board PCB/FR4 boards 0.5-0.7Mpa SKH-9HSS LED depaneling machine

1. Cut any length MCPCB board , PCB/ FR4 boards ,LED alum metal board more safety and easily.

2. Separates long boards directly,without turn direction .

3. Separates boards up to 5.0mm thick Metal Board .

4. Shears boards safely with parts as close as 1 mm to the V score line,including ceramic capacitors.

5. Operator foolproof ! Panels cannot be inserted into the knives except on the score line.

6. Handles high components up to50mm;

7. Bow waves that can occur with round knives are avoided.

8. Easy adjusting of distance between knives

5.0mm Thickness SKH-9 HSS Blade LED Cutting Machine

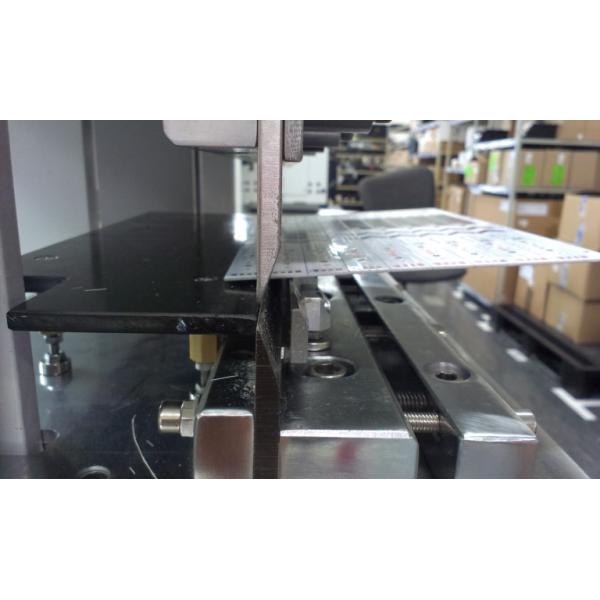

9. The machine was designed to depanel pre-scored PCB carefully, without bending and tension stress.

10. Even sensitive SMD-Components like ceramic capacitors, will not be damaged by the depaneling process, or thin board even to 0.3mm can be worked safely
11. Depaneling process without vibrations.
12. PCB depaneling control method is by pneumatic-driven and electromagnetic valve.

13. PCB control operation is that operator stamps the foot pedal to depanel PCB.

14. Highest components near the v groove of PCB can be up to 50mm.

15. Gap for insertion of PCB can be easy to adjust.

5.0mm Thickness SKH-9 HSS Blade LED Cutting Machine

YSVC-3 Specifications
Model YSVC-3
Dimension 780x500x620mm(L*W*H)
Suitable PCB Length No limited
Blades Length 330mm
Cutting speed 300~500mm/s.
Cutting thickness 0.5-5.0mm
Minimum component distance from v-groove 1mm
Voltage 220 V/50HZ or 110V
Blade material: SKH-9 HSS
Platform 1.2M Options
Max component height 70 mm
Working air pressure: 0.5-0.7Mpa;
Machine weight 220 kg
Machine Warranty period 2 year

5.0mm Thickness SKH-9 HSS Blade LED Cutting Machine5.0mm Thickness SKH-9 HSS Blade LED Cutting Machine
