Multi – Blades PCB Depaneling Machine Cutting Speed 300 - 500mm/s
Multi – Blades PCB Depaneling Machine Cutting Speed 300 - 500mm/s
Specifications
Brand Name :
YUSH
Model Number :
YSATM-4C
Certification :
CE Mark
Place of Origin :
JiangSu
MOQ :
1 set
Price :
business discuss
Payment Terms :
D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100
Delivery Time :
3 days to 7 days
Packaging Details :
wooden packetage
Cutting thickness :
0.5~3.5mm
Max Cutting Width :
300mm
Cutting Speed :
300-500mm/s
Blades Material :
SKD11 high-speed steel
Blades Size :
60*30*3mm
Blades :
4 group; 5 V-Cut lines; 20 pcs blades;
Electrical service requirement :
110V(220V)
Frequency :
50HZ or 60HZ
Description

Multi –blades Depaneling Machine (Model:YSATM-4C)

Features:


●Separates boards up to 3.5mm thick;
●Shears boards safely with parts as close as 0.5mm to the score line,including
ceramic capacitors;
●The single separated Min PCB width is 8 mm. Max cutting width 300mm;
●Suitable cutting material of PCB : aluminum ,FR4,glass fiber panles;
●Handles high components up to70mm;

●Bow waves that can occur with round knives are avoided;
●Easy adjusting of distance between knives.

●Adjust blades to PCB score line using rotary knob.
●Boards are separated without bending or breaking.
●Safe for use with flexible and thin (to 0.5mm) PCBs.
●Smooth, quiet pneumatic-powered unit with foot -pedal activation.
●Wedge-shaped linear blades contour to v-groove score lines and operate in a rocking motion.
●Can be used with aluminum and other substrates, including substrates with metal inner layers.

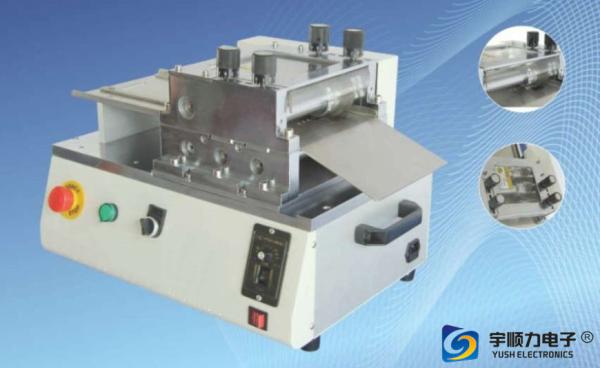

Multi – Blades PCB Depaneling Machine Cutting Speed 300 - 500mm/s

Specification parameters:

Table Multi –blades depaneling machine
Model YSATM-4C
Machine Dimension 610 x 370 x400mm
Blades 4 group; 5 V-Cut lines; 20 pcs blades;
Max Cutting Width 300mm ;
Cutting thickness 0.5~3.5mm;
Minimum component distance from v-groove 1mm
Voltage

220V,50HZ, or 110V,50HZ
Cutting Speed 300-500mm/s
Machine weight 95 kg
Blades Size 60*30*3mm
Blades Material SKD11 high-speed steel
Machine Warranty period One year

Demo pictures:

Multi – Blades PCB Depaneling Machine Cutting Speed 300 - 500mm/s
