Dual Arm Magnetic Linear LED High Speed Pick And Place Machine weight 1700kg
Dual Arm Magnetic Linear LED High Speed Pick And Place Machine weight 1700kg

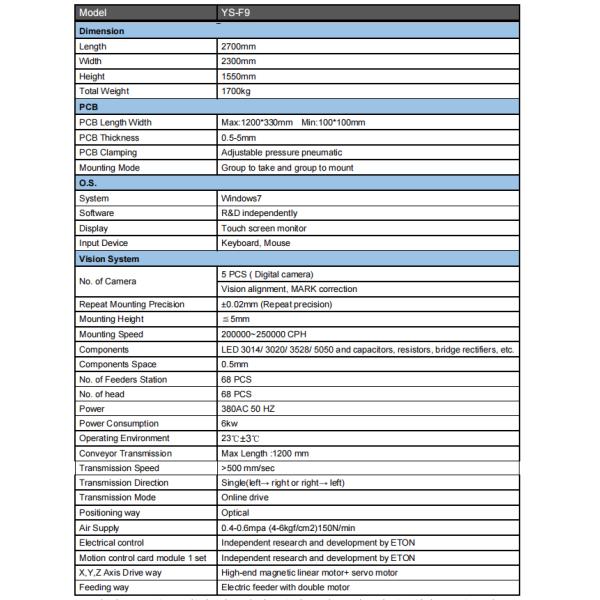

Specifications
Brand Name :
YUSH
Model Number :
YS-F9
Certification :
CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Place of Origin :
Jiangsu
MOQ :
1set
Price :
USD10000
Payment Terms :
L/C, D/P, T/T,Paypal
Supply Ability :
100sets
Delivery Time :
3-5days
Packaging Details :
wooden case
Length :
2700mm
Height :
1550mm
Width :
2300mm
PCB Length Width :
Max:1200*330mmMin:100*100mm
PCB Thickness :
0.5-5mm
PCB Clamping :
Adjustable pressure pneumatic
Mounting Mode :
Group to take and group to mount
System :
Windows 7
Software :
R&D independently
Display :
Touch screen monitor
Description

Dual Arm Magnetic Linear LED High Speed Pick And Place Machine weight 1700kg

Producing 4 types materials atthe same time, capacity reach 250000 CPH
Features
1. Apply to the 0.6 M, 0.9 M, 1.2 M rigid PCB and 0.5 M, 1 M LED flexible strip.Producing with 4 types ofmaterials at the same time with high capacity. available for board with any proportion of LED chip andresistor.
2.Dual arm four modul, 17 nozzles for each mounting part, part A/B/C/D can be mounted separately or synchronously.
3.Calibration automatically, high precision, available for RGB.
4.Exclusive patent technology: Group to take and group to mount.

Dual Arm Magnetic Linear LED High Speed Pick And Place Machine weight 1700kg

Note: The above mounting speed is the value under the optimal state, the actual speed varies with the mounting products

Dual Arm Magnetic Linear LED High Speed Pick And Place Machine weight 1700kg
