High Quality High Precision Wave Soldering Machine Energy Saving
High Quality High Precision Wave Soldering Machine Energy Saving
High Quality High Precision Wave Soldering Machine Energy Saving
High Quality High Precision Wave Soldering Machine Energy Saving
High Quality High Precision Wave Soldering Machine Energy Saving
High Quality High Precision Wave Soldering Machine Energy Saving
High Quality High Precision Wave Soldering Machine Energy Saving
High Quality High Precision Wave Soldering Machine Energy Saving
High Quality High Precision Wave Soldering Machine Energy Saving
High Quality High Precision Wave Soldering Machine Energy Saving
High Quality High Precision Wave Soldering Machine Energy Saving
High Quality High Precision Wave Soldering Machine Energy Saving
Specifications
Brand Name :
YUSH
Model Number :
T300
Certification :
CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Place of Origin :
Jiangsu
MOQ :
1set
Price :
USD18000
Payment Terms :
L/C, D/P, T/T, Western Union,Paypal
Supply Ability :
100set
Delivery Time :
3-5dyas
Packaging Details :
wooden case
Dimension :
3600*1400*1750mm
Weight :
Approximately:1100kg
Control systems :
PC With Window 7+PLC
Start Up Power :
6-8 KW
Direction :
Left to Right ,Front Fix(R to L)
Conveyor speed :
300-2000mm
Conveyor speed control method :
Motor(Panasonic)
Conveyor angle :
4-7°
PCB Component Height%22Top 120mm bottom :
15mm
Power supply :
3ph,AC380V/220V 50HZ
The capacity of solder pot :
280KG
Description
INTRODUCTION:
1. Energy-saving, lead-free application, meet with environmental protection requirement and user friendly designed
2. Automatic power system, inverter control, automatic board in-load feature.
3. Flux sprayer using transverse Japanese spray nozzle and driving by stepper motor, spray range is selective, PLC controlled,
accurate and reliable.
4. Flux recovery container drawer design, easy to clean.

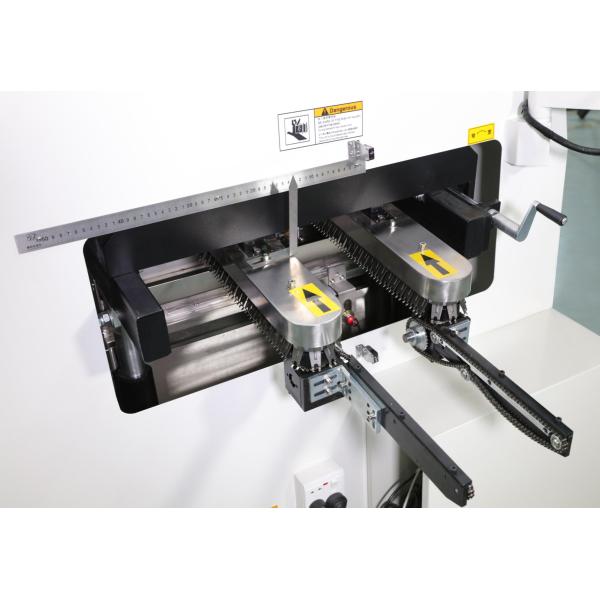

5. Conveyor equiped 3 width adjustable screws, the conveyor transmission is more stable, no PCB falling risk.
6. Titanium solder fingers, high strengthened double v-groove with tin resistant
7. PID close loop controlled hot air pre-heaters, preheating system uses three independent temperature control so as to ensure
the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.
8. Pre-heat passage modular design, environmental protection and safety, convenient for cleanup.
9. Solder motor adopts imported high frequency conversion motor with independent control, stable performance.
8. Solder pot's inpeller material is cast iron, never corrode, solder pot with oxidation jacket, low solder dross
11. Timer startup feature for solder pot, solder melted in within 90 minutes.
12. Automatic finger cleaner equipped.
13. With black box memory function, the machine can always store the SPC data, improve work efficiency.
14. Intelligent monitoring and alarm system ensure the stable performance and operators’safety.

High Quality High Precision Wave Soldering Machine Energy Saving

General specification

 Dimension;3600*1400*1750mm
Weight:Approximately:1100kg
Start Up Power:Approx 19KW
Normal running power :6-8 KW
Power supply :3ph,AC380V/220V 50HZ
Control systems:PC With Window 7+PLC
PCB counter

Conveyor systems

 Direction: Left to Right ,Front Fix(R to L)

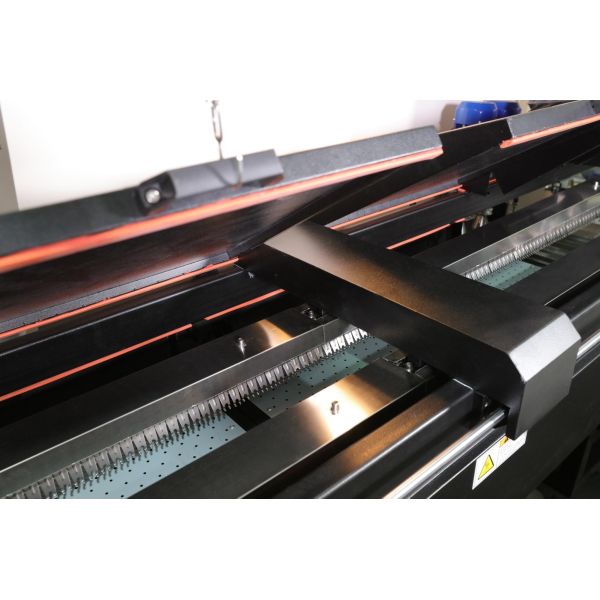

Titanium Alloy V shape Finger
300mm PCB loading buffer at entrance
Conveyor speed control method: Motor(Panasonic)
Conveyor speed:300-2000mm
Conveyor angle:4-7°
PCB Component Height”Top 120mm bottom:15mm
Stepper motor drive reciprocating Spray
7-UP ST-8 Nozzles
The capacity of Flux is 6.5/liter
Flux auto Feeding (Option)
Spay Flux Systems Spary air pressure:3-5bar
Modular structure for easy maintenance

Heating system

 Heating zones :Bottom 3 zones,
The Length of heating zones:1450mm
Heating method:Forces hot air
Heating zones modularization easy to maintenance

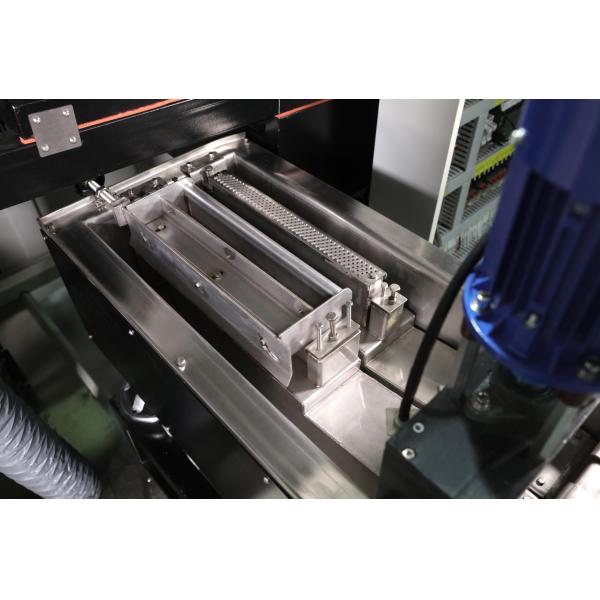

Solder pot

 The capacity of solder pot :280KG
Two wave :Turbulence Wave and Lambda 2nd Wave
Materials :Titanium alloy (Op:Cast iron enamel)
Cleaning Finger systems.

Spare Parts :

NO. Spares Name Brand Origin
1 Display Acer China
2 Computer Industrial computer China
3 PLC Siemens Germany
4 Temperature control module Siemens Germany
5 90W conveying Motor Panasonic Japan
6 Solder pot wave motor ZIK China
7 Preheating Coils Taizhan China
8 Solder pot heating tube Taizhan China
9 Main Switch Mitsubishi Japan
10 Contactor and currency limiter OMRON Japan
11 Intermediate relay OMRON Japan
12 Fuse holder and fuse tube OMRON Japan
13 Programming controller CARLO GAVAZZI Switzerland
14 Frequency Converter Delta Taiwan
15 Power button and indicator light Izumi Japan
16 Temperature detector Nihon Dennetu Japan
17 SSR CARLO GAVAZZI Switzerland
18 Photoelectric sensor SICK Japan
19 Cylinder SMC Japan
20 Flux sprayer 7-UP Taiwan
21 Patented titanium alloy claws JAGUAR China
22 Air/Main Switch CHNT China
23 AC Contactor CHNT China
24 Button Switch Schneider France
