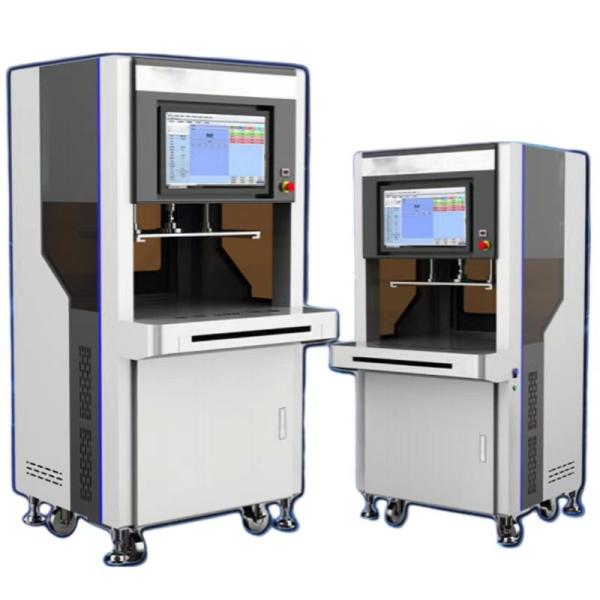

YSL-816SII Inline High Precision Circuit Testing Machine
YSL-816SII Inline High Precision Circuit Testing Machine
Specifications
Brand Name :
YUSH
Model Number :
YSL-816SII
Certification :
CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Place of Origin :
Jiangsu
MOQ :
1 SET
Price :
USD 12800~22800
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10 sets/ month
Delivery Time :
7days
Packaging Details :
Plywooden case
Test point: :
Standard:256 points ;max:4096 points
(system): :
Windows7-10
(Power Spec): :
200-240VAC,Single Phase,50/60Hz3KVA
Air Requirement: :
4-8kg/cm2;15liters/cycle
Environment: :
Temperature:0C-40C Operating Humidity:20%-80%
Fixture Type : :
Manual type; Press type:Inline type
Description

YSL-816SII Inline High Precision Circuit Testing Machine

YSL-816SII Inline High Precision Circuit Testing Machine

YSL-816SII, It has been upgraded and optimized in terms of overall product
structure, operational safety, test diversity, and system intelligence.
The instructions are synchronized with
the screen results
Equipped with Safety Light Curtain
Flip door, More convenient operation
Double hydraulic lever, More steady
operation
Equipped with air switch, more safe
operation
Waist hole heat dissipation window
System specification
Test point: Standard:256 points ;max:4096 points
(system): Windows7-10
(Power Spec): 200-240VAC,Single Phase,50/60Hz3KVA
Air Requirement:
4-8kg/cm2;15liters/cycle
Environment: Temperature:0C-40C Operating Humidity:20%-80%
Fixture Type : Manual type; Press type:Inline type
Open/short Test: 1000point<1S,Innovation algorithm
(Component Test) 0.5ms-30ms
(PCBA Size): 450mm(W)-300mm(L) -100mm(H)
(Pneumatic): 直径φ:100MM,气缸行程:160MM,最大压力:470KG/6Bar
(Resistance): 0.01mΩ-40MΩ
(Capacitance) 10PF-60MF
(Inductance) 10uH-60H
Programmable DC Voltage Source:±10VMAX,Resolution:10mV
Programmable DC Current Source:100mA MAX,Resolution:0.2mA
Programmable Frequency:100Hz,1KHz,10KHz,100KHz
DC Voltmeter:0±100V Resolution:3mV-50mV
DCAmmeter:1uA-50mA Resolution:30nA-50uA
