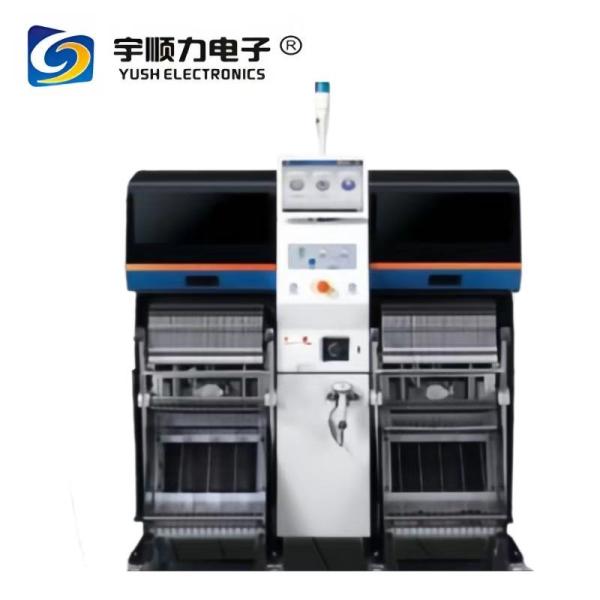

Pick And Place Machine For SMD Line YSL-SM471Plus 1650×1690×1458 Placement Speed 78,000CPH(Optimum)
Pick And Place Machine For SMD Line YSL-SM471Plus 1650×1690×1458 Placement Speed 78,000CPH(Optimum)
Pick And Place Machine For SMD Line YSL-SM471Plus 1650×1690×1458 Placement Speed 78,000CPH(Optimum)
Pick And Place Machine For SMD Line YSL-SM471Plus 1650×1690×1458 Placement Speed 78,000CPH(Optimum)
Specifications
Brand Name :
Yushunli
Model Number :
YSL-SM471Plus
Certification :
CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Place of Origin :
Jiangsu
MOQ :
1 set
Price :
USD 7000~12000
Payment Terms :
T/T ,Paypal ,West Union ,L/C ,D/P .
Supply Ability :
300 sets/ month
Delivery Time :
3 days to 7days
Packaging Details :
Plywooden case
Model :
YSL-SM471Plus YSL-SM481Plus YSL-SM482Plus
Spindles :
10 Spindles ×2 Gantry 10 Spindles ×1 Gantry 6 Spindles ×1 Gantry
Placement Speed :
78,000CPH(Optimum) 40,000CPH(Optimum) 30,000CPH(Optimum)
Placement Accuracy :
±40μm@μ±3σ ±40μm@μ±3σ ±40μm@μ±3σ
Applicable Parts :
0402 ~ 14mm(H 12mm) 0402 ~ 42mm(H 15mm) 0402 ~ 55mm(H 15mm)
Dimension(mm) :
1650×1690×1458 1650×1680×1530 1650×1680×1458
Description

Pick And Place Machine For SMD Line YSL-SM471Plus

Pick And Place Machine For SMD Line YSL-SM471Plus 1650×1690×1458 Placement Speed 78,000CPH(Optimum)

❙ Introduce of Pick and Place Machine

Aa a Multifunction YSL PCB pick and place machine SM471 Plus, YSL SMT placer, Excellent placement speed and placement accuracy, speed up to 78000.

❙ Specification of Pick and Place Machine SM Series

Model YSL-SM471Plus YSL-SM481Plus YSL-SM482Plus
Spindles 10 Spindles ×2 Gantry 10 Spindles ×1 Gantry 6 Spindles ×1 Gantry
Placement Speed 78,000CPH(Optimum) 40,000CPH(Optimum) 30,000CPH(Optimum)
Placement Accuracy ±40μm@μ±3σ ±40μm@μ±3σ ±40μm@μ±3σ
Applicable Parts 0402 ~ 14mm(H 12mm) 0402 ~ 42mm(H 15mm) 0402 ~ 55mm(H 15mm)
Applicable PCB Max. 510(L) x 460(W)(Standard) Max. 460(L) x 400(W)(Standard) Max. 460(L) x 400(W)(Standard)
Max. 610(L) x 460(W)(Option) Max. 1500(L) x 460(W)(Option Max. 1200(L) x 510(W)(Option)
Dimension(mm) 1650×1690×1458 1650×1680×1530 1650×1680×1458

YUSH Electronic Technology Co.,Ltd was founded in 2005,is located in the world manufacturing city Jiangsu,Guprofessional pcb separator/pcb depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacture team,half of them have over 10 years experience in electronic equipment industry.

Begin with 2004 the company leader invested to develop and manufacture the PCB separator and PCB depaneling machine.From then on we pay more attention to product quality,safe to use and product innovation,so far we have produced many high quality, stable performance, high cost-effective products. Improve production yields, increase productivity, and thus enhance the market competitiveness of our customers. Until now we have design different separating PCB types of PCB separator and PCB depaneling machine with manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.Due to the good quality and reasonable price our customers are all over the world.Up to now YuSH have became one of the biggest PCB separator production base in China.
