Adjustable Automatic PCB Paste Printer YSL-P200 AC220V ± 10% 50/60Hz Machine Weight 1800KG
Adjustable Automatic PCB Paste Printer YSL-P200 AC220V ± 10% 50/60Hz Machine Weight 1800KG
Adjustable Automatic PCB Paste Printer YSL-P200 AC220V ± 10% 50/60Hz Machine Weight 1800KG
Adjustable Automatic PCB Paste Printer YSL-P200 AC220V ± 10% 50/60Hz Machine Weight 1800KG
Specifications
Brand Name :
Yushunli
Model Number :
YSL-P200
Certification :
CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Place of Origin :
Jiangsu
MOQ :
1 set
Price :
USD 6800~23000
Payment Terms :
T/T ,Paypal ,West Union ,L/C ,D/P .
Supply Ability :
300 sets/ month
Delivery Time :
3 days to 7days
Packaging Details :
Plywooden case
Machine Alignment Capability :
2CmK @ ±15 microns 4 Sigma
Process Alignment Capability :
2CpK @ ±30 microns 4 Sigma
Product Changeover Time :
< 5mins
New Product Set-up Time :
< 10 mins
PCB Max. Weight :
5 kg
PCB Bottom Clearance :
15 mm
 Conveyor Speed :
Max. 1,500 mm/s
 Conveyor Height :
900 ± 40 mm
Description

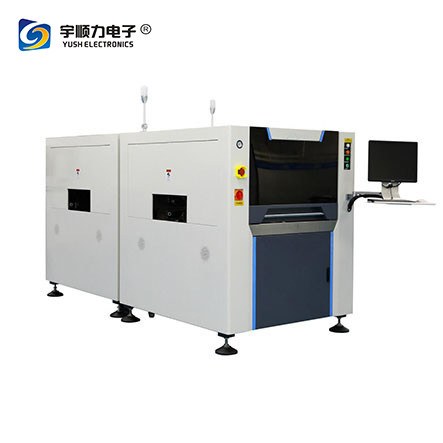

YSL-P200 LED Tube Stencil Frame Size Adjustable Automatic PCB Paste Printer

Adjustable Automatic PCB Paste Printer YSL-P200 AC220V ± 10% 50/60Hz Machine Weight 1800KG

Specification Parameters

PERFORMANCE
Machine Alignment Capability 2CmK @ ±15 microns 4 Sigma
Process Alignment Capability 2CpK @ ±30 microns 4 Sigma
Core Cycle Time < 15 secs
(excluding printing & cleaning time)
Product Changeover Time < 5mins
New Product Set-up Time < 10 mins
BOARD HANDLING
Max. Size (L x W) 1,524 mm x 350 mm
Min. Size (L x W) 80 mm x 50 mm
Thickness 0.8~6 mm
PCB Thickness Adjustment Automatic
PCB Max. Weight 5 kg
PCB Edge Clearance 3.5 mm
PCB Bottom Clearance 15 mm
Clamping Method Top clamp (Manual) & Motorized side clamp
Support Method Std. Magnetic support pins, bars, blocks.
Conveyor Direction L to R, R to L, R to R, L to (software control)
Conveyor Height 900 ± 40 mm
Conveyor Speed Max. 1,500 mm/s
Conveyor Width Adjustment Automatic
FACILITIES REQUIREMENT
Power Supply AC220V ± 10% 50/60Hz
Power Consumption 3kW
Air Supply 4 ~ 6Kgf/cm²
Dimension (excluding signal tower) 2,570 mm (L) x 1,210 mm (W) x 1,509 mm (H)
Machine Weight 1,800kg
OPTIONS
SPI Closed-loop
Temperature, humidity monitoring & display
External Barcode Scanner for PCB Traceability
Handheld Barcode Scanner for stencil, solder paste, squeegee traceability
OPERATOR INTERFACE
Hardware LCD Monitor, Mouse & Keyboard
Operating System (OS) Windows 7 or Higher
Control Method Industrial PC controlled
I/O Interface SMEMA Standard
PRINTING PARAMETERS
Stencil Frame Size (L X W) Adjustable, 720 mm x 300 mm to 1,800mm x 750mm
Printing Table Adjustment Range X: ±10 mm, Y: ±10 mm/ : ± 2°
Print Speed 10~200 mm/s
Squeegee Pressure 0.5~15kg (program control)
Squeegee Type Std.: Metal 280/370mm, Option: Rubber
Printing Stroke Direction Left to Right, Right to Left
Squeegee Angle Std. 60°, Option 45°, 50°, 55°
Cleaning System Auto wet, dry, vacuum (Software select)
OPTICAL SYSTEM
Field-of-View (FOV) 8 mm x 6 mm
Fiducial Types Circle, triangle, square, diamond, cross
Fiducial size 0.5~4.0 mm
Vision Methodology CCD camera look up & down
2D inspection Max.100 windows to inspect missing &
insufficient (std)

YUSH Electronic Technology Co.,Ltd was founded in 2005,is located in the world manufacturing city Jiangsu,Guprofessional pcb separator/pcb depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacture team,half of them have over 10 years experience in electronic equipment industry.

Begin with 2004 the company leader invested to develop and manufacture the PCB separator and PCB depaneling machine.From then on we pay more attention to product quality,safe to use and product innovation,so far we have produced many high quality, stable performance, high cost-effective products. Improve production yields, increase productivity, and thus enhance the market competitiveness of our customers. Until now we have design different separating PCB types of PCB separator and PCB depaneling machine with manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.Due to the good quality and reasonable price our customers are all over the world.Up to now YuSH have became one of the biggest PCB separator production base in China.
