Automatic PCB Loader Unloader
Automatic PCB Loader Unloader
Automatic PCB Loader Unloader
Automatic PCB Loader Unloader
Specifications
Brand Name :
Winsmart
Model Number :
SMTPL-250
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD1-10000/Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 sets per month
Delivery Time :
5-8 days
Packaging Details :
Plywood case
Condition :
100% New
Video Provide :
Yes
Test Report :
Yes
Warranty :
2 years
After-sale Service :
Video technical support, online support
PCB Width :
250mm(could be customized made)
Selling Unit :
Single item
Packaging :
Foam and wooden case
Package Dimension :
150x110x150cm
Gross Weight :
200kgs
Name :
Automatic PCB Loader
Description

Automatic PCB Loader Unloader SMT Loader Machine SMT PCB Industrial Loader and Unloader

Automatic PCB Loader Specifications:

Model No SMTPL-250 SMTPL-330 SMTPL-390 SMTPL-460
PCB Size(mm) (50x50)-(350x250) (50x50)-(455x330) (50x50)-(530x390) (50x50)-(530x460)
Machine Size(mm) 1370x770x1200 1550x850x1200 1750x920x1200 1750x990x1200
Magazine Size(mm) 355x320x560mm 460x400x563 535x460x570 535x530x570
Weight(kg) 130 150 180 200

Automatic PCB Loader Technical Parameters:

Function PCB Loading Time Magazine Change Time Power Supply Air Pressure
It is used for PCB loading Approx 6 seconds Approx 30 seconds 100-230V, 1PH, Max 300VA 4-6Bar
Transport Height Transportation Direction PCB Thickness Magazine Number Step Pitch Select
900±20mm(or customized) L to R or R to L Min 0.6mm Up: 1; Down: 2 10mm, 20mm, 30mm, 40mm

Automatic PCB Loader Description:

Solid and stable design

Stable and reliable integrated control system

Light touch LED membrane switch or touch screen control

Top and bottom pneumatic clamps to secure magazine rack

Pressure regulated on pusher’s to prevent board damage

Machine always fault monitoring

SMEMA compatible

Automatic PCB Loader Features:

Automatic PCB Loader UnloaderAutomatic PCB Loader UnloaderAutomatic PCB Loader Unloader

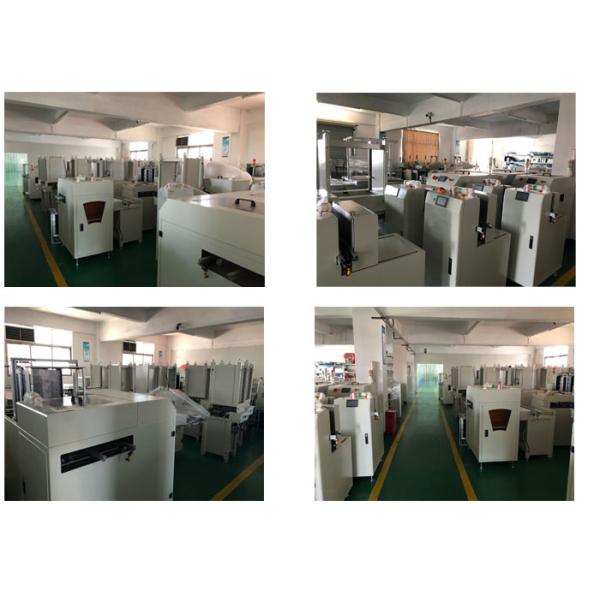

Automatic PCB Loader Factory Show:

Automatic PCB Loader Unloader
