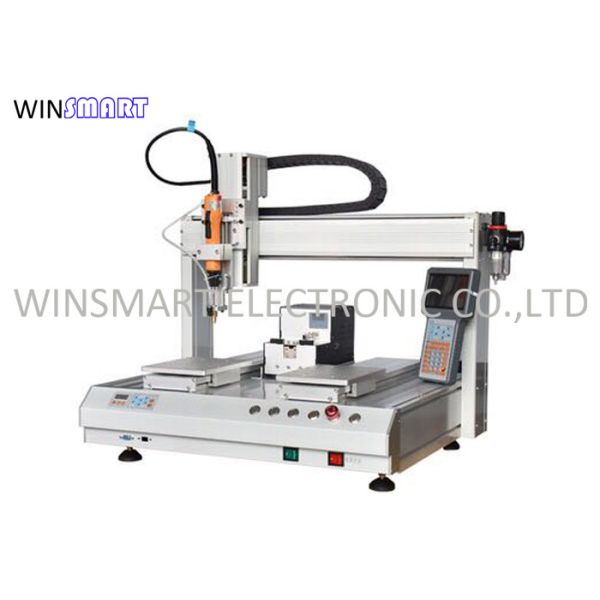

DVDs Robotic Screwdriver Machine TP Control System 0.02mm Position Accuracy
DVDs Robotic Screwdriver Machine TP Control System 0.02mm Position Accuracy
Specifications
Brand Name :
Winsmart
Model Number :
SMTSD211
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD1-10000/Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 sets per month
Delivery Time :
5-8 days
Packaging Details :
Plywood case
Axis :
4
Working stroke :
500x300x300x100mm
Power :
110V/220V
Usage :
Screw fastening
Type :
Semi-auto
Name :
Robotic Screwdriver System
Description

LED Lighting Automatic Screw Fastener Robotic Screwdriver System

Robotic Screwdriver System Advantages:

1. High efficiency: multiple axis lock at the same time, 10 screws can be locked in one screw’s period, saving lots of artificial, suitable for mass production.

2. High locking standard: all screws are locked in one torque at the same time, making sure of the sealing and balance of the product, greatly increase the qualified rate of products.

3. Deep hole locking: the locking of deep hole screw has inconvenience in observing the hole site, so artificial locking has low efficiency, while multi-axis screw locking machine locates and locks screws accurately.

Robotic Screwdriver System Specifications:

Working Range 500(X)*300(Y1)*300(Y2)*100(Z)mm
Drive mode 3 axis driver
Position Accuracy ±0.02mm
Control System PLC + TP
Screw Feeding absorption type
Operation Method by Programming
Program Memory 999 groups
Voltage 110-220VAC,50HZ
Air Pressure 4-5kg/cm2
Machine Size 620*600*720mm
Machine Weight 65kgs

Robotic Screwdriver System Applications:

The automatic screwdriver machine is suitable for automated assembly in the electronics industry such as cameras, mobile phones, hard disks, keyboards, printers, computers, DVDs, home appliances, toys, appliances, communication equipment, electronic processing and assembly,etc. Automobile industry assembly, such as automotive motors, parts assembly, etc.

DVDs Robotic Screwdriver Machine TP Control System 0.02mm Position Accuracy

Robotic Screwdriver Systems:

DVDs Robotic Screwdriver Machine TP Control System 0.02mm Position Accuracy
