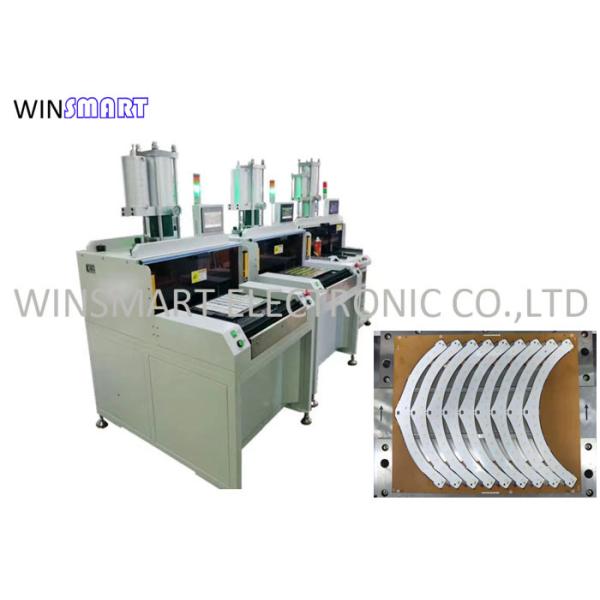

10T PCB Punching Machine Environmental Protection For High Volume Production
10T PCB Punching Machine Environmental Protection For High Volume Production
10T PCB Punching Machine Environmental Protection For High Volume Production
10T PCB Punching Machine Environmental Protection For High Volume Production
Specifications
Brand Name :
Winsamrt
Model Number :
SMTP300
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD1-10000/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 sets
Delivery Time :
7-15 days
Packaging Details :
Plywood case
Air :
0.4-0.7MPa
Working Area :
460x320mm
Output :
10T
PCB Thickness :
0.08-3.5mm
Punching Fixture :
Die tooling
Name :
PCB Punching Machine
Description

PCB Punching Machine With Precise Die Tooling Design For High Volume Production​

PCB Punching Machine Features:

1. Depaneling PCB/FPC by means of punching dies, to avoid micro-cracks caused by manual

2. Die toolings is changeable

3. Easy set up of punching dies

4. Loading and unloading PCBs is convenient

5. Easy operation, has safe protection system

6. Air cylinder driven

PCB Punching Machine Specification:

Working area 460*320mm　
Working pressure 0.45-0.7Mpa
Cutting precision ±0.05mm
Cycle time 7-15 seconds
Output 8T
PCB/FPC thickness 0.08-3.5MM
PCB/FPC material FPC, FR1, FR4, CEM-1, CEM-3, MCPCB
Cutting mode Punching
Punch fixture Die tooling(mold)
Working Property

LCD display, Automatically records the number of

processed products, automatic punching
Transmission port International standard
Operation Language English
Stroke 50MM
Mold height 170MM
Power 380/220V
Fuse 3A
Machine dimension 820x740x1750mm
Machine weight 580kgs

PCB Punching Machine Details:

10T PCB Punching Machine Environmental Protection For High Volume Production10T PCB Punching Machine Environmental Protection For High Volume Production10T PCB Punching Machine Environmental Protection For High Volume Production

PCB Punching Machine FAQ:

Q: What is life time of die tooling for the punching machine?

A: About 300,000-500,000 shots.

Q: What is PCB material available?

A: FR4, Alunium, FPC, etc.

Q: What is cycle punching time?

A: 7-12 seconds.

Q: Is cutting bite replaceable?

A: Yes.

Q: How strong is the punching?

A: Optional 5T, 15T, 25T to meet different applications' requirements.
