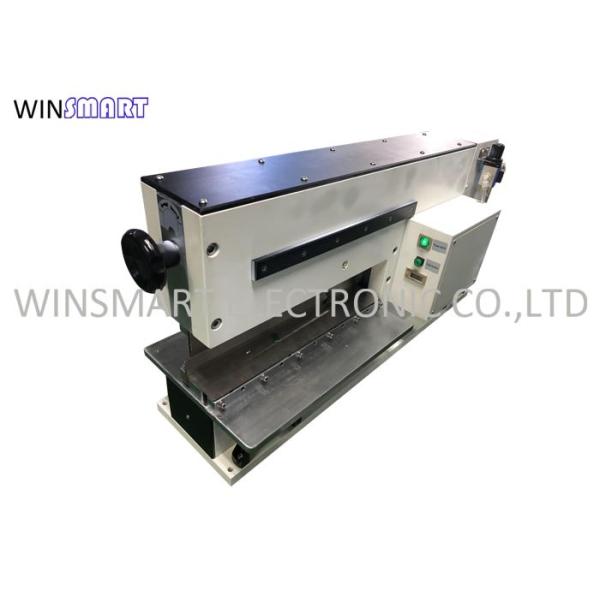

V Scoring PCB Depaneling Cutter 400mm Cutting Length With Linear Knives
V Scoring PCB Depaneling Cutter 400mm Cutting Length With Linear Knives
Specifications
Brand Name :
Winsmart
Model Number :
SMTPD2
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD1-10000/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 sets per month
Delivery Time :
2-5 days
Packaging Details :
Plywood case
Air Source :
0.4MPa
PCB Material :
Metal
PCB Thickness :
0.4-5mm
Blade :
400mm
Condition :
100% New
Name :
PCB Separator Maestro 4s
Description

PCB Separator Maestro 4S With Linear Knives 400mm Cutting Length

Principle:

It uses two linear blades to separate boards with less stress, like a scissor.

And operator cannot mis-feed boards.

It is widely used in modern V-score PCB industry, improve cutting effect to avoid component damage.

Features:

Pneumatic driven, electric hybrid design, double straight knife cutting, sutiable for dividing precision SMD sheet, aluminum circuit board.

Suitable for all thickness PCB, cutting board stroke is less than 2mm, no operational safety concerns.

Reduce the internal stress generated when cutting the board to below 180μST to avoid tin cracking and prevent damage to precision parts.

Cut the edge of the V groove and the width of the part is 0.3mm, the height is 50mm.

Blades can be re-sharpened

Cutting stress is less than 500 uE.

Specification:

Model SMTPD2　
Machine Dimension 780x300x440mm
Max Cutting Length 400mm
PCB Material FR4, MCPCB, CEM, Copper Boards
Air Pressure 0.4-0.7MPa
PCB Thickness 0.3-3.5mm
Power 110/220V
Machine Weight 190kgs

Machine Application:

V Scoring PCB Depaneling Cutter 400mm Cutting Length With Linear Knives
