Customized V Cut PCB Depaneling Machine Pneumatic Air Driven
Customized V Cut PCB Depaneling Machine Pneumatic Air Driven
Customized V Cut PCB Depaneling Machine Pneumatic Air Driven
Customized V Cut PCB Depaneling Machine Pneumatic Air Driven
Specifications
Brand Name :
Winsmart
Model Number :
SMTPD2
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD1-10000/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 sets per month
Delivery Time :
2-5 days
Packaging Details :
Plywood case
Weight :
180kgs
Dimension :
780x300x450mm
Cutting Capacity :
580mm
Blade :
580mm(could be customized)
Certificate :
CE Approval
Name :
PCB Depanelizer Machine
Description

Pneumatic PCB Depanelizer Machine PCB Assembly Machine Air Driven

PCB Depanelizer Machine Overview:

It is widely used in modern PCB industry.

We offer the widest selection of depaneing machines for pre-scored and routed boards, including punching, routing, v-groove cutting

and laser cutting solutions.

PCB Depanelizer Machine Advantages:

1. Pneumatic driven, electric hybrid design, double straight knife cutting, sutiable for dividing precision SMD sheet, aluminum circuit board.

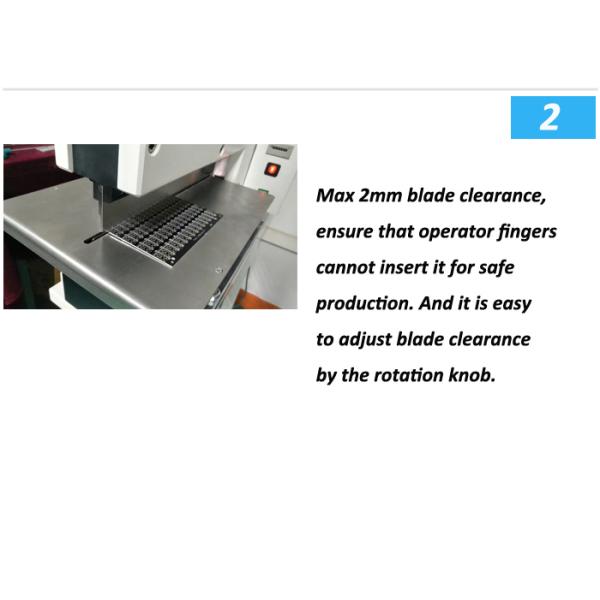

2. Suitable for all thickness PCB, cutting board stroke is less than 2mm, no operational safety concerns.

3. Reduce the internal stress generated when cutting the board to below 180μST to avoid tin cracking and prevent damage to precision parts.

4. Cut the edge of the V groove and the width of the part is 0.3mm, the height is 50mm.

5. Blades can be re-sharpened

6. Cutting stress is less than 500 uE.

PCB Depanelizer Machine Specification:

Model SMTPD2　
Machine Dimension 720x300x440mm
Max Cutting Length 330mm
PCB Material FR4, MCPCB, CEM, Copper Boards
Air Pressure 0.4-0.7MPa
PCB Thickness 0.3-3.5mm
Power 110/220V
Machine Weight 130kgs

PCB Depanelizer Machine Details:

Customized V Cut PCB Depaneling Machine Pneumatic Air DrivenCustomized V Cut PCB Depaneling Machine Pneumatic Air DrivenCustomized V Cut PCB Depaneling Machine Pneumatic Air Driven

Shipping Ways:

1. DHL/FedEx/UPS/TNT Express

2. Air

3. Railway

4. Ocean

5. Truck

FAQ:

Q: What is life time of blade?

A: 100,000-300,000 cutting times, depends on PCB material.

Q: What is PCB Material available?

A: FR1, FR4, CEM, MCPCB.

Q: What is PCB thickness?

A: 0.4-3.5mm

Q: What is cutting speed?

A: It is adjustable, 0-400mm/s.
