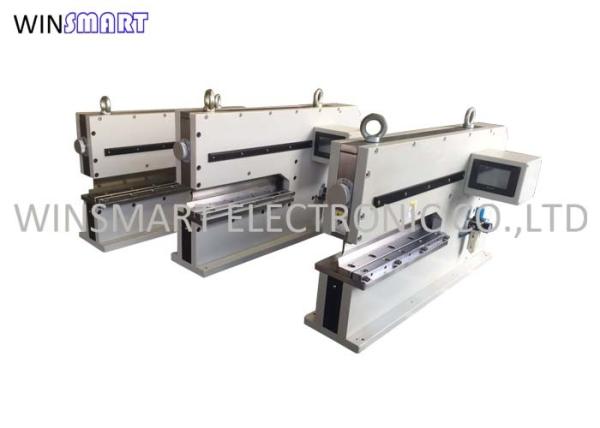

600mm Pneumatic V Groove PCB Cutter Linear Blades PCB Separator
600mm Pneumatic V Groove PCB Cutter Linear Blades PCB Separator
Specifications
Brand Name :
Winsmart
Model Number :
SMTPD2
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD1-10000/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 sets per month
Delivery Time :
2-5 days
Packaging Details :
Plywood case
PCB Material :
FR4, Aluminum PCB
PCB Thickness :
0.4-5mm
Cutting Stress :
Less than 500ustrain
After-sale Service :
24 hours online support
Blade Length :
500mm
Type :
Penumatic V-groove PCB Cutter
Description

600mm Penumatic V-groove PCB Cutter Linear Blades PCB Separator

Penumatic V-groove PCB Cutter Description:

In order to improve the output of printed circuit board (PCB) manufacturing and the linear speed of surface mount (SMT), the printed circuit board is usually designed as a large board, which will be divided into many smaller single PCB small boards by using PCB depaneling machine equipment in the final product. This large PCB board can be called panel. This large panel is divided into small pieces. In different product processes, it may be divided after SMT, after ICT, after welding through-hole SMT, or before the final product assembly.

Penumatic V-groove PCB Cutter Features:

1. Rigid design without vibration in operation.
2. The PCB with sensitive SMD capacitor or thin board even to 0.3mm can be worked safely.
3. Gap for insertion of the board can easily be adjusted by means of the adjusting knob in front of the machine.
4. Depaneling process without vibrations.
5. Easy maintenance and operation.
6. Pneumatic control placed in a separate unit for easier maintenance.

7. Customized blades and fixtures are available.

Penumatic V-groove PCB Cutter Specification:

Model SMTPD2　
Machine Dimension 900x350x440mm
Max Cutting Length 600mm
PCB Material FR4, MCPCB, CEM, Copper Boards
Air Pressure 0.4-0.7MPa
PCB Thickness 0.3-3.5mm
Condition New
Blade Material High speed steel
Customized Blade Available
Blade Re-sharpen Yes
Power 110/220V
Machine Weight 250kgs

Customized Blades:

600mm Pneumatic V Groove PCB Cutter Linear Blades PCB Separator
