0.02mm Laser Beam Flex PCB Boards Non Contact Laser Depaneling
0.02mm Laser Beam Flex PCB Boards Non Contact Laser Depaneling
Specifications
Brand Name :
Winsmart
Model Number :
SMTL460
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD1-150K/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 sets per month
Delivery Time :
5-30 days
Packaging Details :
Plywood case
Warranty :
1 Year
Power Rate :
3KW
Scan Range :
40x40mm
Fixture Qantity :
1
Laser :
UV 10/12/15W
Name :
Laser depaneling
Description

0.02mm Laser Bean No-contact Laser Depaneling Solution For Flex PCB Boards

Description:

Laser depaneling systems overcome these challenges while offering greater precision, speed and accuracy. Unlike traditional depaneling techniques, they eliminate mechanical stress to the PCB—resulting in higher throughput.

Difference Between Laser Depaneling and Mechanical Cutting:

Laser Depaneling Mechanical Cutting
No dust, good to PCB conductivity More dust, affect conductivity
No stress, ±5μm cutting precision Has cutting stress, cause damage to PCB
Import gerber file for easy operation Need to replace cutters
Alien/line cutting is available Cannot do alien cutting
Smooth cutting edge Easy to collapse

Specification:

Laser Q-Switched diode-pumped all solid-state UV laser
Laser Wavelength 355nm
Laser Source Optowave UV 15W@30KHz
Positioning Precision of Worktable of Linear Motor ±2μm
Repetition Precision of Worktable of Linear Motor ±1μm
Effective Working Field 460mmx460mm(Customizable)
Scanning Speed 2500mm/s (max)
Working field 40mmх40mm

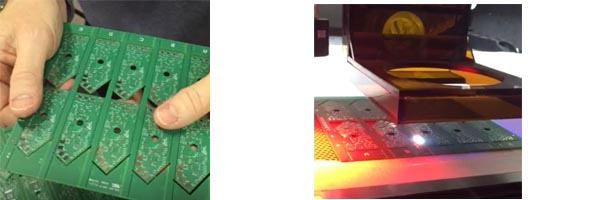

Application:

0.02mm Laser Beam Flex PCB Boards Non Contact Laser Depaneling
