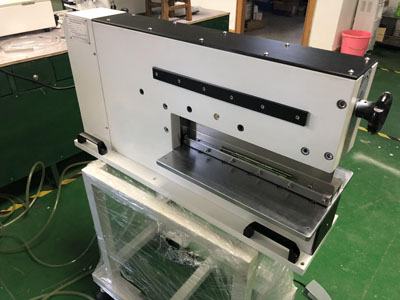

Metal Board PCB Depaneling Machine 580mm Cutting Capacity
Metal Board PCB Depaneling Machine 580mm Cutting Capacity
Specifications
Brand Name :
Winsmart
Model Number :
SMTPD2
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD1-10000/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 sets per month
Delivery Time :
2-5 days
Packaging Details :
Plywood case
Certificate :
CE Approval
PCB Material :
FR1, FR4, CEM1, CEM3, MCPCB
PCB Thickness :
0.4-5mm
Max Cutting Length :
580mm
Blade Type :
Linear Blade
Warranty :
2 years
Report :
Provide
Name :
Metal PCB Depaneling Machine
Description

Metal Board PCB Depaneling Machine PCB Separator 580mm Cutting Capacity

Features:

1. Pneumatic driven, electric hybrid design, double straight knife cutting, sutiable for dividing precision SMD sheet, aluminum circuit board.

2. Suitable for all thickness PCB, cutting board stroke is less than 2mm, no operational safety concerns.

3. Reduce the internal stress generated when cutting the board to below 180μST to avoid tin cracking and prevent damage to precision parts.

4. Cut the edge of the V groove and the width of the part is 0.3mm, the height is 50mm.

5. Blades can be re-sharpened

6. Cutting stress is less than 500 uE.

Specification:

Model SMTPD2　
Machine Dimension 970x300x440mm / 720x300x440mm / 520x300x440mm / 500x300x440mm
Max Cutting Length 580mm / 330mm / 200mm / 130mm
PCB Material FR4, MCPCB, CEM, Copper Boards
Air Pressure 0.4-0.7MPa
PCB Thickness 0.3-3.5mm
Power 110/220V
Machine Weight 250kgs/ 130kgs / 100kgs / 80kgs

Application:

Metal Board PCB Depaneling Machine 580mm Cutting Capacity
