2 Linear Blades PCB V Cut Machine PCB Cutter Allows Max 70mm Components
2 Linear Blades PCB V Cut Machine PCB Cutter Allows Max 70mm Components
Specifications
Brand Name :
Winsmart
Model Number :
SMTPD2
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD1-10000/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 sets per month
Delivery Time :
2-5 days
Packaging Details :
Plywood case
PCB Material :
FR1, FR4, CEM1, CEM3, MCPCB
Max Component Height :
70mm
Blade Type :
Linear Blade
Cutting Stress :
Less than 400ustrain
Test Report :
Provided
Name :
PCB V Cut Machine
Description

PCB V Cut Machine PCB Cutter With 2 Linear Blades Allows Max 70mm Components

PCB V Cut Machine Specification:

Model SMTPD2　
Machine Dimension 720x300x440mm / 520x300x440mm / 500x300x440mm
Max Cutting Length 330mm / 200mm / 130mm
PCB Material FR4, MCPCB, CEM, Copper Boards
Air Pressure 0.4-0.7MPa
PCB Thickness 0.3-3.5mm
Power 110/220V
Machine Weight 130kgs / 100kgs / 80kgs

PCB V Cut Machine Features:

Dual V shape blades for a perfect board cut without bending or tension.

Pneumatic footpedal control.

Small clearance between upper and lower blades to ensure safety operation.

The system only allow correct board placement to avoid mistakes.

Separate boards safely with parts as close as 0.5mm to the score line, including ceramic capacitors

Compressed air as power, clean and low cost.

Customized blades are available.

PCB V Cut Machine Options:

1. Customized blades

2. Safety enclosure custom designed

3. Tray to safety catch boards after cutting

4. LCD display

Guillotine PCB Cutter Parameters:

2 Linear Blades PCB V Cut Machine PCB Cutter Allows Max 70mm Components D=0.6~1.5mm
Emin=0.3mm
Hmax=45mm
Max cutting length mm 400
Compressed Air MPa 0.4~0.6
Power VAC 220V/110V
Weight Kg 230

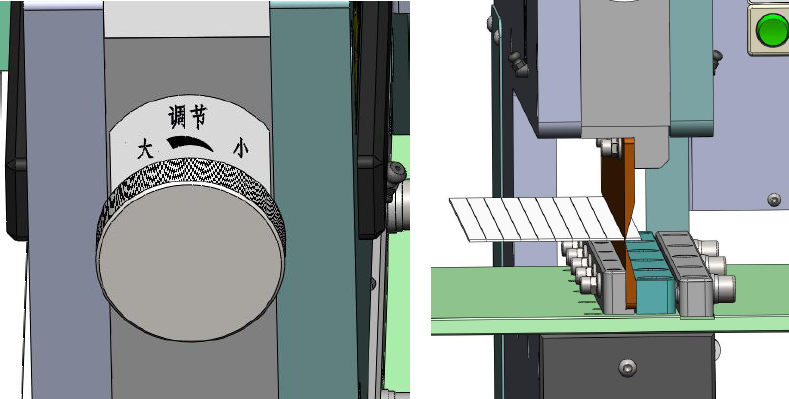

PCB V Cut Machine Photos:

2 Linear Blades PCB V Cut Machine PCB Cutter Allows Max 70mm Components

2 Linear Blades PCB V Cut Machine PCB Cutter Allows Max 70mm Components
